AUSTIN SEMICONDUCTOR, INC.

Austin Semiconductor, Inc.

1M x 32 FLASH

FLASH MEMORY MODULE

AVAILABLE AS MILITARY

SPECIFICATIONS

• Military Processing (MIL-PRF-38534, para 1.2)

•

Temperature Range -55

C to 125

AS8F1M32

FLASH

FIGURE 1: PIN ASSIGNMENT

(Top View)

68 Lead CQFP

RESET\

CS3\

GND

CS4\

WE1\

A10

VCC

I/O0

I/O1

I/02

I/O3

I/O4

I/O5

I/O6

I/O7

GND

I/O8

I/O9

I/O10

I/O11

I/012

I/O13

I/O14

I/O15

I/O16

I/O17

I/O18

I/O19

I/O20

I/O21

I/O22

I/O23

GND

I/O24

I/O25

I/O26

I/O27

I/O28

I/O29

I/O30

I/O31

FEATURES

• Fast access times of 90ns, 120ns, and 150ns

• 5.0V ±10%, single power supply operation

• Low power consumption typical: 4µA typical CMOS stand-by

* ICC(active) <120mA for READ/WRITE

• 20 year DATA RETENTION at 125

• 1,000,000 program/erase cycles

• 16 equal sectors of 64 Kbytes each

• Any combination of sectors can be erased

• Group sector protection

• Supports FULL chip erase

• Compatible with JEDEC standards

• Embedded erase and program algorithms

• Data\ polling and toggle bits for detection of program or erase

cycle completion.

• Erase suspend/resume

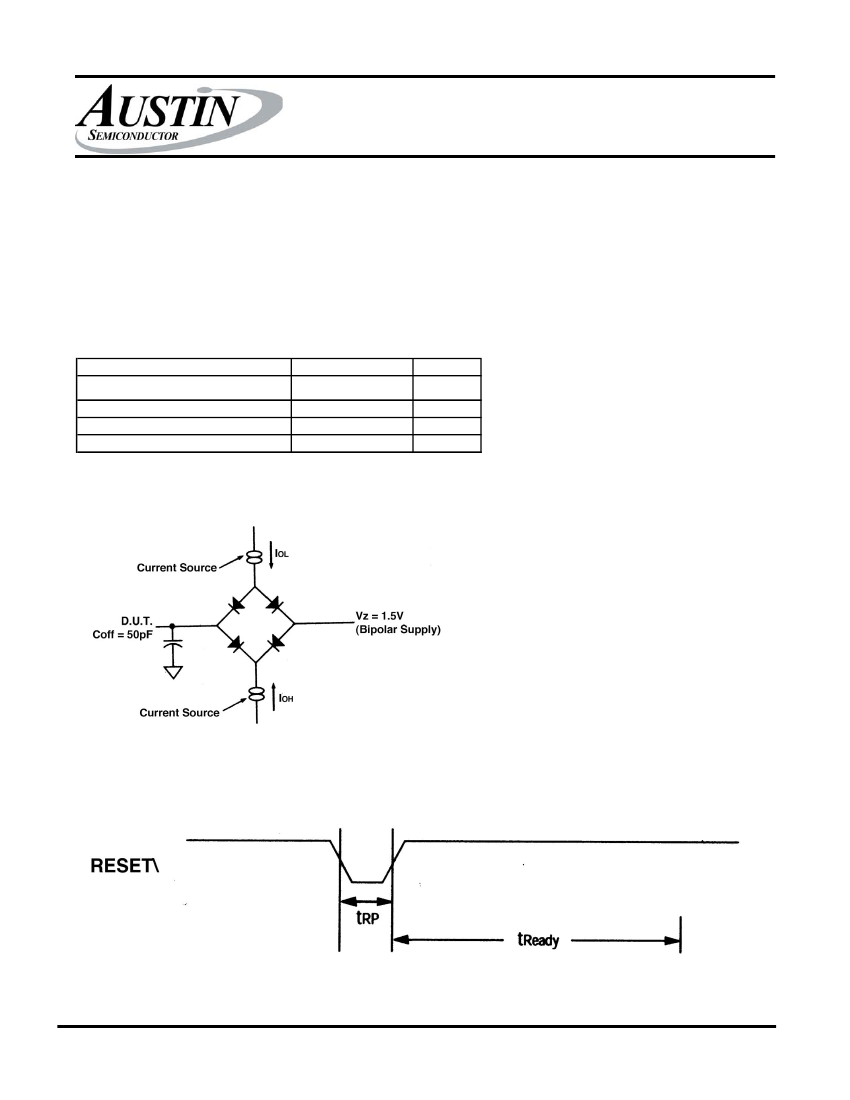

• Hardware reset pin (RESET\)

• Built in decoupling caps and multiple ground pins for low

noise operation

• Separate power and ground planes to improve noise immunity

VCC

A11

A12

A13

A14

A15

A16

CS1\

OE\

CS2\

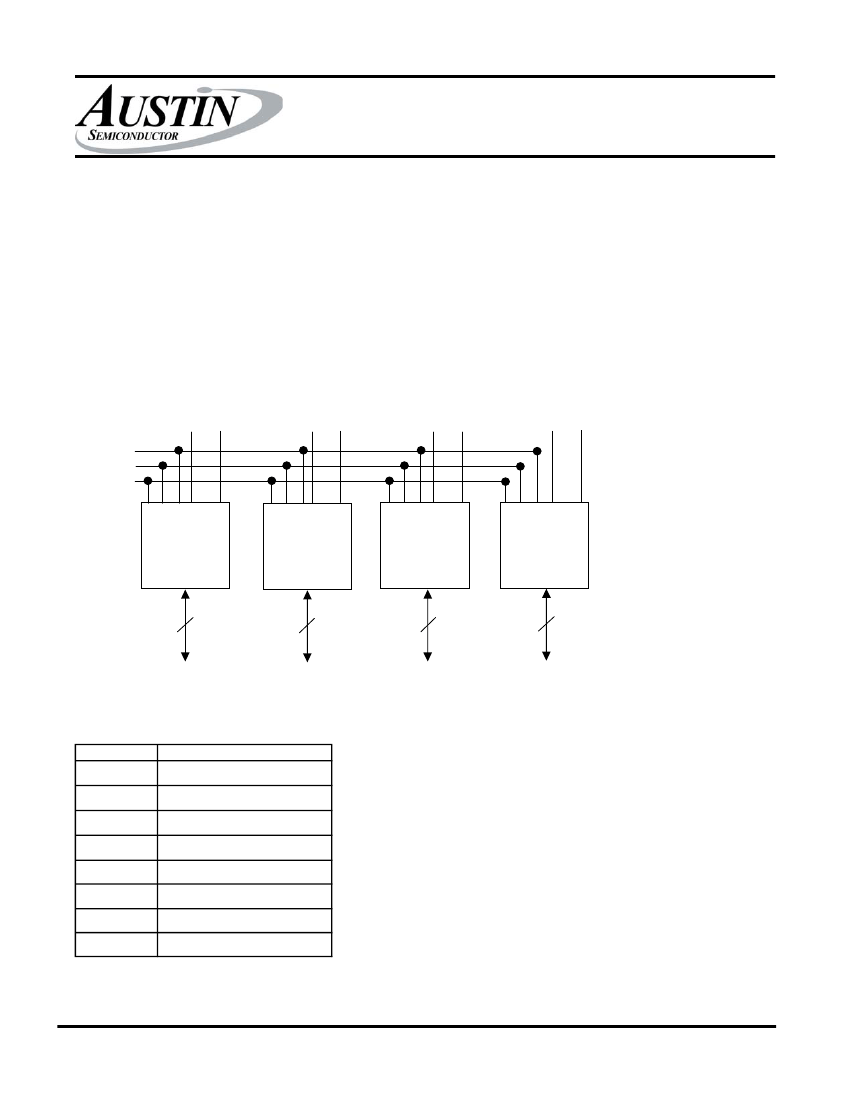

GENERAL DESCRIPTION

The Austin Semiconductor, Inc. AS8F1M32 is a 32 Mbit, 5.0 volt-

only Flash memory. This device is designed to be programmed in-

system with the standard system 5.0 volt VCC supply. The AS8F1M32

offers an access time of 90ns, allowing high-speed microprocessors to

operate without wait states. To eliminate bus contention, the device has

separate chip enable (CE\), write enable (WE\) and output enable (OE\)

controls.

The device requires only a single 5.0 volt power supply for both

read and write functions. internally generated and regulated voltages

are provided for the program and erase operations.

The device is entirely command set compatible with the JEDEC

single-power-supply FLASH standard. Commands are written to the

command register using standard microprocessor write timings.

controls the erase and programming circuitry. Write cycles also

internally latch addresses and data needed for the programming and

erase operations. Reading data out of the device is similar to reading

from other FLASH or EPROM devices.

Device programming occurs by executing the program command

sequence. This initiates the Embedded Program algorithm - an internal

algorithm that automatically time the program pulse widths and verifies

proper cell margin.

Device erasure occurs by executing the erase command sequence.

This initiates the Embedded Erase algorithm - an internal algorithm that

automatically preprograms the array (if it is not already programmed)

before executing the erase operation. During erase, the device

automatically times the erase pulse widths and verifies proper cell

margin.

The host system can detect whether a program or erase operation is

complete by observing the DQ7 (DATA\ Polling) and DQ6 (toggle)

status bits. After a program or erase cycle has been completed, the

device is ready to read array data or accept another command.

(continued on page 2)

OPTION

• Timing

90ns

120ns

150ns

• Packages

Ceramic Quad Flat Pack (0.88" sq)

- MAX height .140"

- Stand-off Height .035" min

MARKING

-90

-120

-150

For more products and information

please visit our web site at

www.austinsemiconductor.com

AS8F1M32

Rev. 1.5 09/05

Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.

A17

WE2\

WE3\

WE4\

A18

A19
