ØA
ØD
J
L
3.5
ØB
L1
ØC
ØE
ITS
Reverse Bayonet
Assemblies
with Rotating Clamp Nut Backshell for Heat-Shrink Tubing
ITS 3101 (GR) and ITS 4101 (GR)

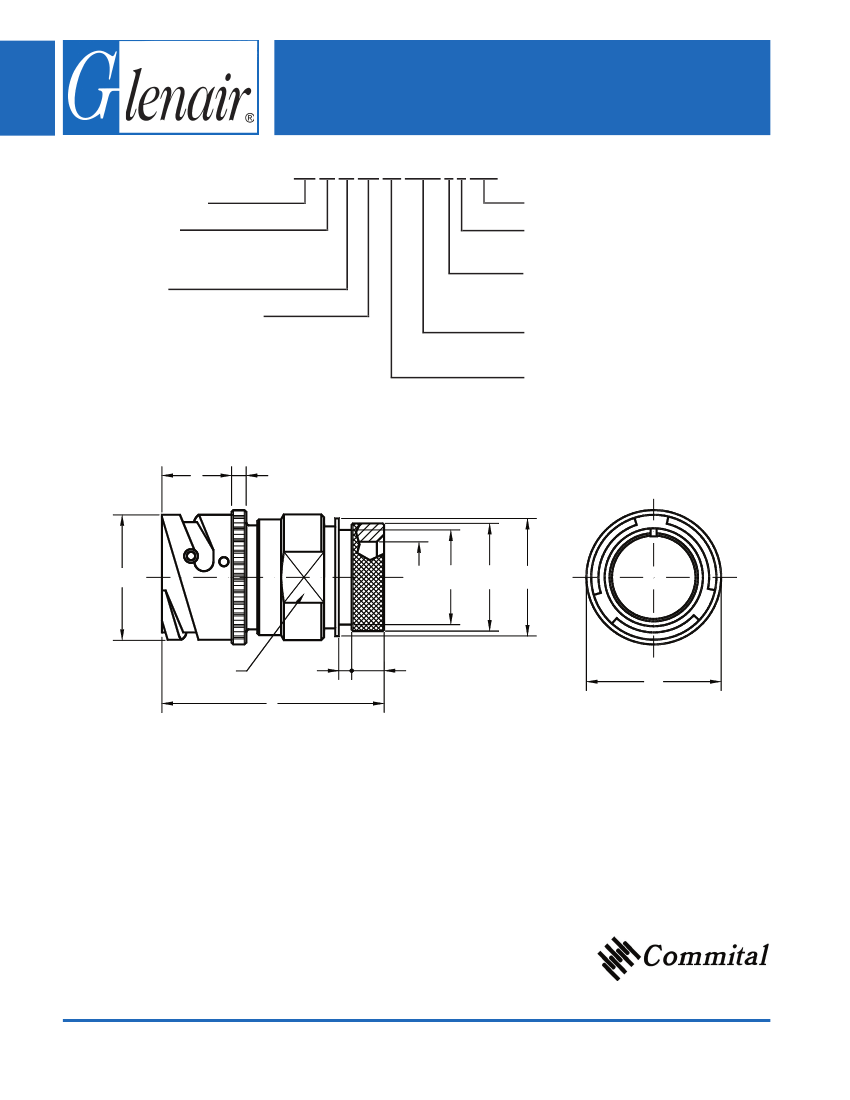

In-Line Cylindrical Receptacle Assembly
ITS 31 01 GR FK 20-27 P Y XXX
Bayonet Coupling
Contact Type
31 - Solder
41 - Crimp
01 - In-Line
Connector/Backshell Class
GR - Environmental; Supplied with
Backshell for Heat Shrink
Tubing and Rotating Clamp Nut
Mod Code Option (See Table II)
Alternate Insert Rotation (W, X, Y, Z)
Omit for Normal (See Intro 20-21)
Contact Gender
P - Pin
S - Socket
Shell Size and Insert Arrangement
(See Intro 6-25)
Material Option (Omit for Aluminum)
FK - Stainless Steel Passivate
MB - Marine Bronze
M
K
ØQ
Application Notes:
1. In-line receptacle assembly with backshell for heat shrink tubing. Rotating coupling nut supplied.
2. Connector/Backshell Class “GR” (environmental)—wire sealing grommet supplied.
3. Standard materials configuration consists of aluminum alloy with cadmium olive drab finish.
4. Standard contact material consists of copper alloy with silver plating
(Gold plating available, see mod codes).
5. A broad range of additional connector accessories are available.
See our website and/or contact the factory for complete information.
6. Standard insert material is synthetic rubber.
Add “FR” prefix to front of part number to specify fire resistant inserts.
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-46
with Rotating Clamp Nut Backshell for Heat-Shrink Tubing
TABLE I: DIMENSIONS
ØD
ØE
±0.2
15.5
19.1
23.9
23.9
23.9
29.6
29.6
37.8
37.8
47.8
47.8
57.8
±0.2
17.0
20.1
23.5
23.5
26.5
30.5
33.6
36.1
41.4
48.6
54.8
60.9
J ke y
20
23
26
26
28
32
36
39
46
52
58
65
ITS 3101 (GR) and ITS 4101 (GR)
In-Line Cylindrical Receptacle Assembly
S he ll Size
10 S L
14 S
16 S
16
18
20
22
24
28
32
36
40
ØA
+0
-0.1
18.2
24.5
27.2
27.2
30.7
34.0
37.3
40.9
46.7
53.4
59.6
65.5
ØB
min.
8.5
12.0
14.5
14.5
17.5
19.5
22.0
25.0
29.0
34.0
38.5
48.0
ØC
±0.1
13.0
16.5
21.5
21.5
21.7
26.0
26.0
34.5
34.5
43.6
43.6
52.6
K
±0.2
2.8
3.3
3.3
3.3
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L
Ma x.
52.7
53.4
53.4
65.8
65.8
66.1
66.1
65.7
66.2
73.8
83.8
83.8
L1
Ma x.
8.2
8.2
8.2
8.0
8.0
8.9
8.9
9.2
9.2
11.7
11.7
11.7
M
+0.2
-0
14.3
14.5
14.5
19.1
19.1
19.1
19.6
20.6
20.7
22.3
22.3
22.3
ØQ
±0.1
21.8
28.8
30.5
30.5
33.8
36.9
39.5
43.9
48.4
56.0
62.4
68.6
TABLE II: MODIFICATION CODES
CONTACT OPTIONS
Sym Description
B0
B1
Connector Less Contacts
Connector with Gold Plated Contacts
FINISH OPTIONS
Sym Description
F2
F6
F7
F8
Bright Nickel Plating
Black Electrodeposited Paint
Black Zn-Co Plating
Olive Drab Zn-Co Plating
Omit for Standard Version
(Cad/Olive Drab Finish)
Omit for Standard Version (Silver Plated)
© 2006 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-47
ITS
Reverse Bayonet
Assemblies
