MIL-C-24308
D-Subminiature
557-196

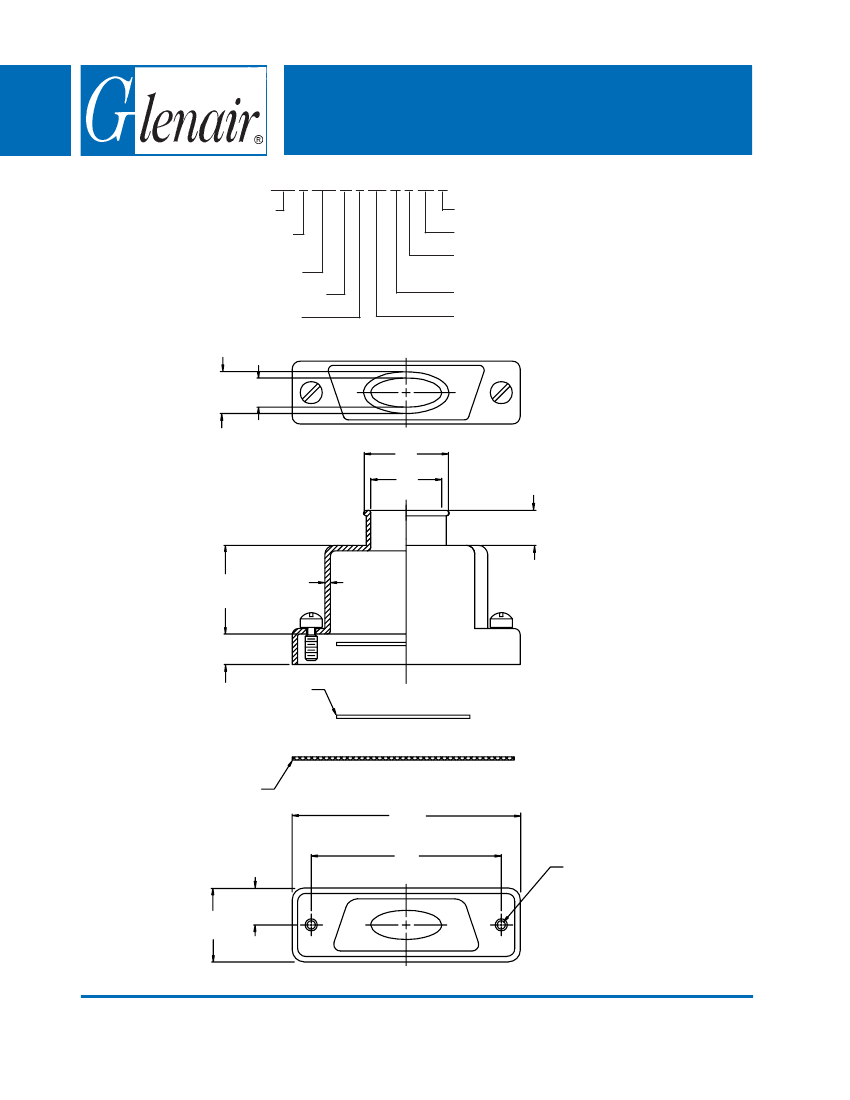

D-Subminiature Solid Banding Backshell
with Elliptical Entry
557 T 196 M 2 R1 B 1-04 B
Product Series
Cable Entry Style
T = Top
Basic Part Number
Finish Symbol (Page 3)
Shell Size (Table I)
B = Band Supplied (600-052), Omit for None
Dash No. (Table III)
0 = Without EMI Gasket,
1 = With EMI Gasket
Jackscrew Type (Page A-4)
Receptacle Mounting (Table II)
F0 = Front Mounting
R1-R7 = Rear Mounting
G
F
J
H
.44 (11.2)
1.50
(38.1)
.045
(1.1)
Typ.
E
Connector
Retaining Spring
RFI/EMI Gasket
Optional
A
D
C
B
#4-40 UNC
Thread
(2 Places)
© 2004 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-84
557-196
D-Subminiature Solid Banding Backshell
with Elliptical Entry
TABLE I: SHELL SIZE & CONNECTOR INTERFACE DIMENSIONS
Shell
Size
1
2
3
4
5
6
Com’l
Shell
Size Ref
E/09
A/15
B/25
C/37
D/50
F/104
D
A MAX
1.393 (35.4)
1.706 (43.3)
2.265 (57.5)
2.900 (73.7)
2.800 (71.1)
2.900 (73.7)
B MAX
.624 (15.8)
.624 (15.8)
.624 (15.8)
.624 (15.8)
.750 (19.1)
.844 (21.4)
C Ref.
.312 (7.9)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.375 (9.5)
.422 (10.7)
±.005
.984
1.312
1.852
2.500
2.406
2.500
Max Dash No.
(.1)
Table III
(25.0)
03
(33.3)
05
(47.0)
08
(63.5)
12
(61.1)
13
(63.5)
14
TABLE II: RECEPTACLE MOUNTING
Dash
No.
R1
R2
R3
R4
R5
R6
R7
F0
Panel
Thickness
.031
(.8)
.047 (1.2)
.062 (1.6)
.093 (2.4)
.104 (2.6)
.125 (3.2)
.156 (4.0)
N/A
E
.247
.231
.216
.185
.174
.153
.125
.305
(6.3)
(5.9)
(5.5)
(4.7)
(4.4)
(3.9)
(3.2)
(7.7)
TABLE III: CABLE ENTRY
Dash
No.
01
02
03
04
05
06
07
08
09
10
11
12
13
14
F
.250 (6.4)
.250 (6.4)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.312 (7.9)
.375 (9.5)
.375 (9.5)
.375 (9.5)
.437 (11.1)
.437 (11.1)
.550 (14.0)
.615 (15.6)
G
.375 (9.5)
.375 (9.5)
.438 (11.1)
.438 (11.1)
.438 (11.1)
.438 (11.1)
.438 (11.1)
.500 (12.7)
.500 (12.7)
.500 (12.7)
.562 (14.3)
.562 (14.3)
.675 (17.1)
.740 (18.8)
H
250 (6.4)
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.452 (36.9)
2.100 (53.3)
2.000 (50.8)
2.000 (50.8)
J
.375 (9.5)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.577 (40.1)
2.225 (56.4)
2.125 (54.0)
2.425 (61.6)
1. Metric dimensions (mm) are indicated in parentheses.
2.
DO NOT USE CONNECTORS WITH FLOAT MOUNTINGS.
3. For front mount, mating connector must be mounted to panel using
M24308/26 female screwlocks. For rear mount, use Glenair GK134.
