VAWQ6 Series DC-DC Converters
Features
·5-6W isolated output
·Efficiency to 80%
·24-Pin DIP Package
·4:1 input range
·Regulated outputs
·Continuous short circuit protection
·Pi Input Filter
Model
Number
VAWQ6-Q24-S5
VAWQ6-Q24-S12
VAWQ6-Q24-S15
VAWQ6-Q24-D5
VAWQ6-Q24-D12
VAWQ6-Q24-D15
VAWQ6-Q24-S3R3
VAWQ6-Q48-S5
VAWQ6-Q48-S12
VAWQ6-Q48-S15
VAWQ6-Q48-D5
VAWQ6-Q48-D12
VAWQ6-Q48-D15
VAWQ6-Q48-S3R3
Input
Voltage
9-36VDC
9-36VDC
9-36VDC
9-36VDC
9-36VDC
9-36VDC
9-36VDC
18-72VDC
18-72VDC
18-72VDC
18-72VDC
18-72VDC
18-72VDC
18-72VDC
Output
Voltage
5VDC
12VDC
15VDC
±5VDC
±12VDC
±15VDC
3.3VDC
5VDC
12VDC
15VDC
±5VDC
±12VDC
±15VDC
3.3VDC
Output
Current
1000mA
470mA
400mA
±500mA
±230mA
±190mA
1000mA
1000mA
470mA
400mA
±500mA
±230mA
±190mA
1000mA
I nput Current
No Load
Full Load
15mA
267mA
15mA
294mA
15mA
313mA
25mA
288mA
25mA
297mA
25mA
15mA
7.5mA
7.5mA
7.5mA
12mA
12mA
12mA
7.5mA
267mA
191mA
134mA
149mA
157mA
146mA
149mA
135mA
100mA
Effic.
78
80
80
80
80
78
72
78
79
80
79
80
77
70
Case
A
A
A
A
A
A
A
A
A
A
A
A
A
A
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
VAWQ6 Series DC-DC Converters
Input
Input Voltage Range
Input Filter
24V 9-36V
48V 18-72V
PI Type
Output
Voltage Accuracy
Voltage Balance
Ripple & Noise
(Dual)
20MHz BW
3.3V/5V
12V/15V
±2.0% max.
±1.0% max
100mV p-p, max.
1% p-p max.
±0.05%/°C
Continuous
±0.5% max
±0.5% max
±1% max
Temperature Coefficient
Short Circuit Protection
Line Regulation
1
Single/Dual
Load Regulation
2
Single
2
Dual³
General Specifications
Efficiency
Isolation Resistance
Switching Frequency
Operating Temperature Range
Case Temperature
Cooling
Storage Temperature Range
Dimensions
(Plastic case)
(Copper case)
see table
10
9
Ohm
200KHz, min.
-25°C to +71°C
95°C
100°C
Free-Air Convection
-40°C to +100°C
1.25x0.8x0.4 inches
(31.8x20.3x10.2mm)
Isolation Voltage
1.5 KVDC min.
3 KVDC min.
Standard Models
Suffix “H” Models
Case Material
Standard Models
Suffix “M” models
Non Conductive Black Plastic
Black Coated Copper with Non-
Conductive base
NOTES:
1. Measured from high line to low line
2. Measured from full load to 10% load
3. Measured from full load to 1/4 load
4. Non-Conductive Black Plastic Only
5. Suffix “HM” 1.5KVDC instead of 3KVDC isolation
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
VAWQ6 Series DC-DC Converters

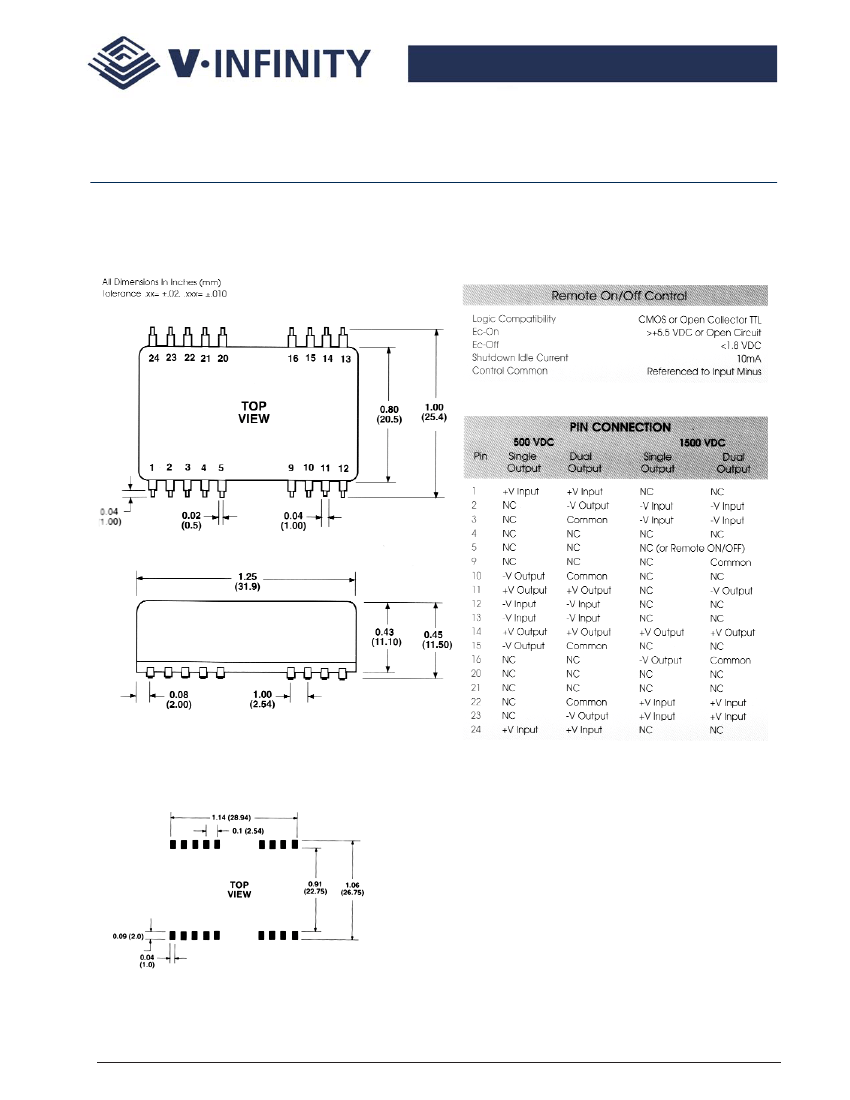

Case A
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
VAWQ6 Series DC-DC Converters

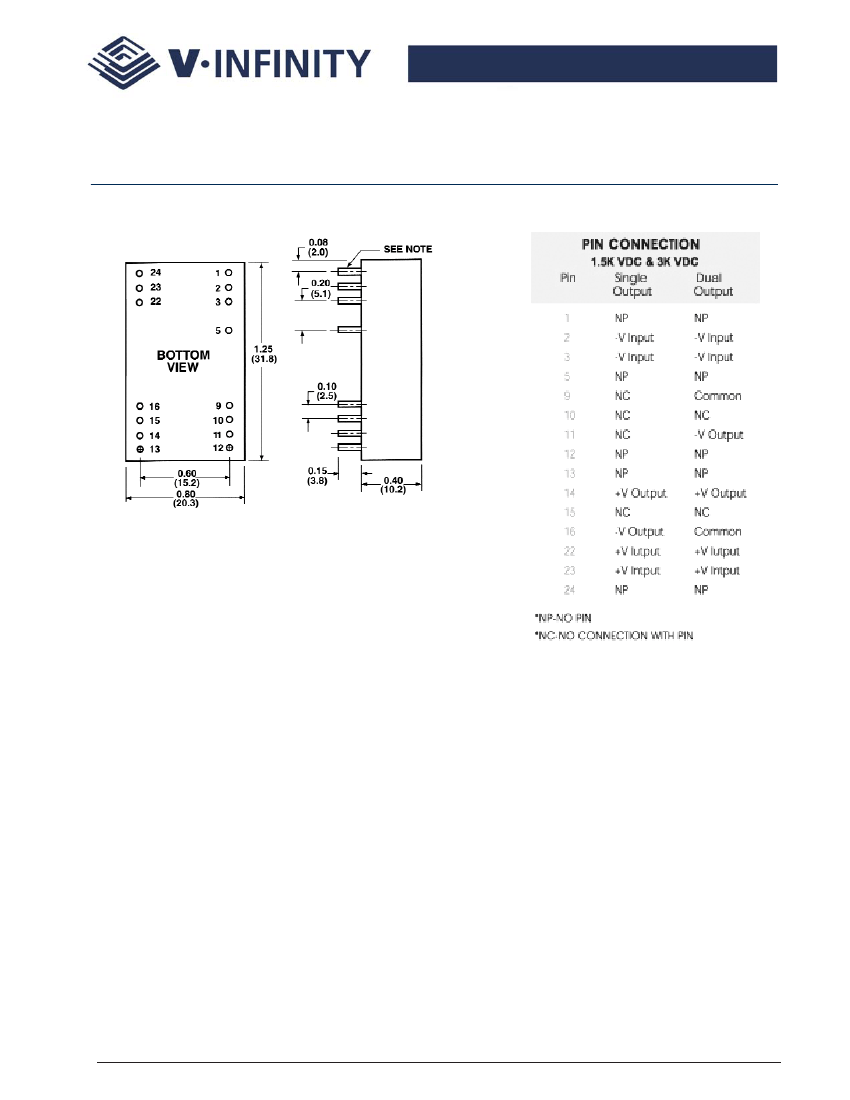

Case AS
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
