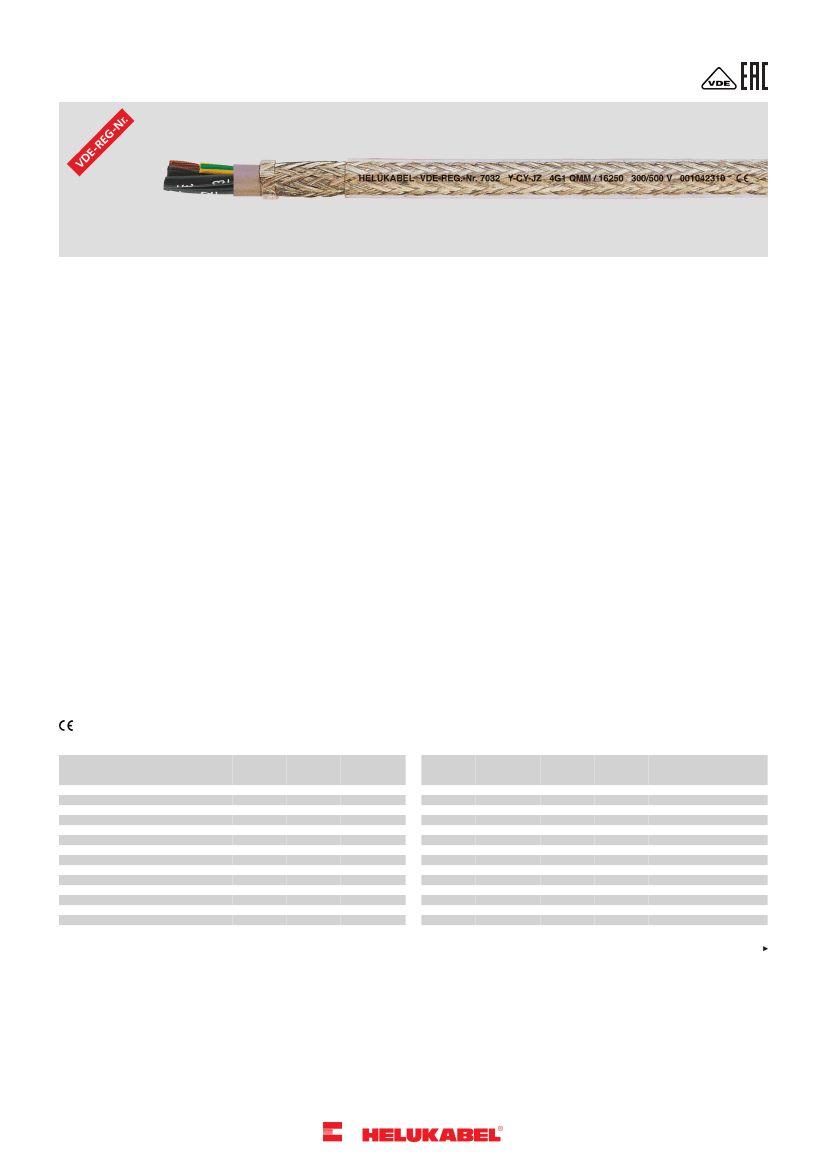

Y-CY-JZ
flexible, Cu-screened, transparent, EMC-preferred type, meter marking
Technical data
•
Special-PVC control cable adapted
to DIN VDE 0285-525-2-51 /
DIN EN 50525-2-51
• Temperature range
flexing -15°C to +80°C
fixed installation -40°C to +80°C
• Nominal voltage
U
0
/U 300/500 V
• Test voltage
4000 V
• Breakdown voltage
min. 8000 V
• Insulation resistance
min. 20 MOhm x km
• Mutual capacitance
acc. to different cross sections
0,5 up to 2,5 mm²:
core/core approx. 150 nF/km
core/screen approx. 270 nF/km
• Coupling resistance
max. 250 Ohm/km
• Minimum bending radius
flexing 10x cable Ø
fixed installation 5x cable Ø
• Radiation resistance
up to 80x10
6
cJ/kg (up to 80 Mrad)
Cable structure
•
Bare copper conductor, to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5
•
Core insulation of special PVC
compound type Z 7225
•
Core identification to DIN VDE 0293
black cores with continuous white
numbering
•
GN-YE conductor, 3 cores and above
in the outer layer
•
Cores stranded in layers with
optimal lay length
•
Inner sheath of PVC, grey
•
Tinned copper braided screen,
approx. 85% coverage
•
Outer sheath of special PVC
•
Sheath colour: transparent
•
With meter marking
Properties
•
Extensively oil resistant,
oil-/chemical resistance
see "Technical Infromations"
•
The materials used during manufacturing
are cadmium-free, contain no silicone
and are free from substances harmful
to the wetting properties of lacquers
Tests
•
PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2,
DIN EN 60332-1-2, IEC 60332-1-2
(equivalent DIN VDE 0472 part 804
test method B)
Note
•
G = with GN-YE conductor
x = without GN-YE conductor (OZ)
•
AWG sizes are approximate equivalent
values. The actual cross section is in mm².
•
Unscreened analogue type:
JZ-500
Application
For use as a data and control cable in machinery, computer systems etc. as well as a signal cable for electronics. The high level of screening ensures a
high degree of interference protection. The screening density assures disturbancefree transmission of all signals and impulses. The PVC-inner sheaths
of those cables raise the mechanical stress. The applied clear transparent PVC outer sheath accentuates the optical view of the tinned copper braid.
EMC
= Electromagnetic compatibility
To optimize the EMC features we recommend a large round contact of the copper braiding on both ends.
= Product conforms with Low-Voltage Directive 2014/35/EU.
Part no.
No.cores x
cross-sec.
mm²
2 x 0,5
3 G 0,5
3 x 0,5
4 G 0,5
4 x 0,5
5 G 0,5
5 x 0,5
6 G 0,5
7 G 0,5
7 x 0,5
8 G 0,5
10 G 0,5
12 G 0,5
14 G 0,5
16 G 0,5
Outer Ø
app. mm
7,0
7,3
7,3
7,9
7,9
8,4
8,4
9,1
9,1
9,1
9,7
10,7
11,5
12,2
12,7
Cop.
weight
kg / km
41,0
45,0
45,0
54,0
54,0
66,0
66,0
73,0
79,0
79,0
82,0
107,0
137,0
142,0
147,0
Weight
AWG-No.
app. kg / km
67,0
83,0
83,0
94,0
94,0
108,0
108,0
125,0
136,0
136,0
150,0
170,0
195,0
223,0
250,0
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Part no.
No.cores x
cross-sec.
mm²
18 G 0,5
20 G 0,5
21 G 0,5
24 G 0,5
25 G 0,5
30 G 0,5
32 G 0,5
36 G 0,5
40 G 0,5
41 G 0,5
50 G 0,5
61 G 0,5
80 G 0,5
100 G 0,5
Outer Ø
app. mm
13,5
14,2
14,2
15,5
15,7
16,2
17,0
17,7
18,4
18,9
20,7
22,0
25,0
27,4
Cop.
weight
kg / km
156,0
173,0
189,0
236,0
250,0
297,0
312,0
320,0
345,0
348,0
407,0
520,0
690,0
805,0
Weight
AWG-No.
app. kg / km
277,0
310,0
331,0
390,0
407,0
520,0
550,0
585,0
654,0
671,0
740,0
850,0
1080,0
1350,0
20
20
20
20
20
20
20
20
20
20
20
20
20
20
Continuation
27.09.2016 / Dimensions and specifications may be changed without prior notice.
16200
16201
16169
16202
16170
16203
16171
16204
16205
17172
16206
16207
16208
16209
16210
16211
16212
16315
16213
16214
16215
16216
16217
16218
16453
16219
16220
16221
16222
