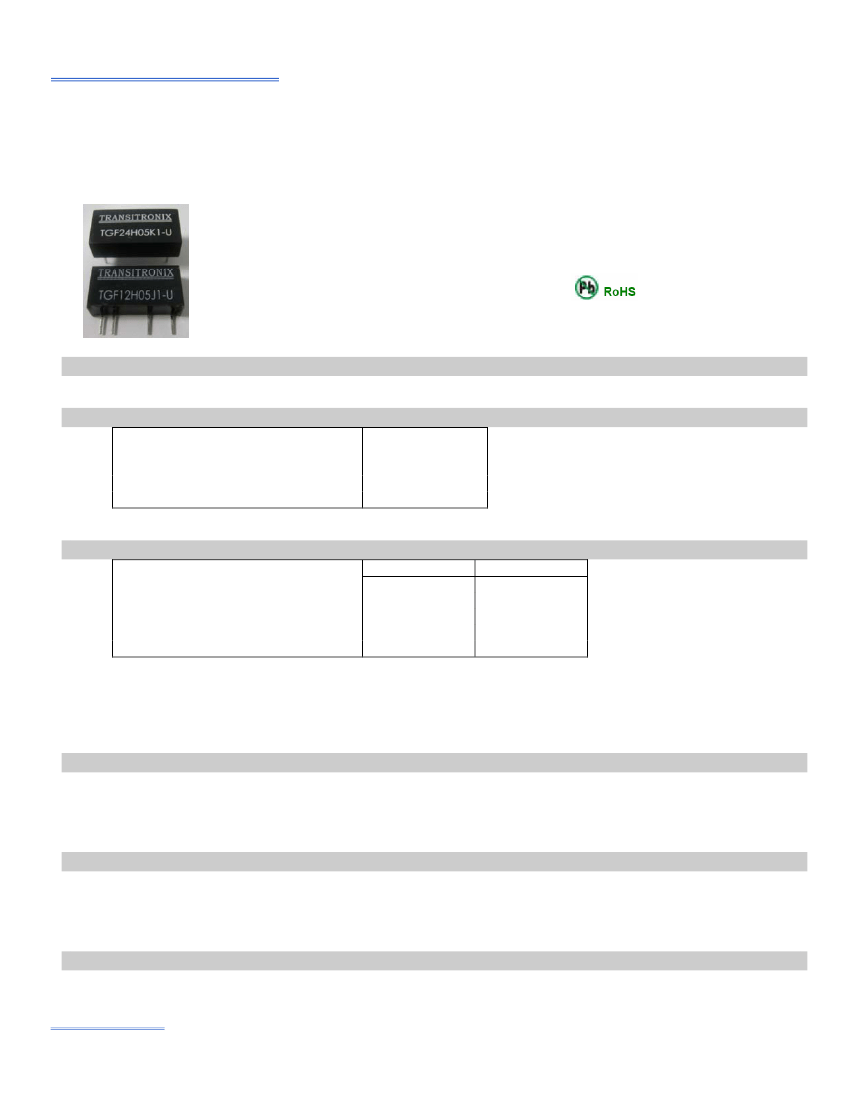

TRANSITRONIX

DC/DC Converter Series Datasheet

Datasheet # F001030

TGF-series

Single and Dual Output DC/DC Converter - Unregulated

1-Watt

SIP or DIP Packages

Fixed Input Range

3,000 VDC Isolation

ELECTRICAL SPECIFICATIONS

All specifications are typical at nominal input, full load, and 25°C unless otherwise noted.

INPUT SPECIFICATIONS

Input Voltage Range (DC)

3.3V ±10%

5V ±10%

12V ±10%

15V ±10%

24V ±10%

Pi Filter

Input Filter

OUTPUT SPECIFICATIONS

Output Voltage Range (DC)

Single Output

3.3V at 303mA

5V at 200mA

9V at 111mA

12V at 83mA

15V at 67mA

± 2.5% Typ

50mVp-p Typ

75mVp-p Typ

1.2% Max

10.0% Typ

Dual Output

±5V at 100mA

±9V at 56mA

±12V at 42mA

±15V at 33mA

Output Voltage Accuracy

Ripple

Noise

Line Regulation

Load Regulation

GENERAL SPECIFICATIONS

Switching Frequency

Isolation Voltage

RoHS

Short Circuit Protection

100KHZ Typ

3,000VDC

Compliant

1 second

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature Range

Storage Temperature Range

Temperature Coefficient

Cooling

-40°C to +85°C

-55°C to +125°C

± 0.03%/°C

Free-air Convection

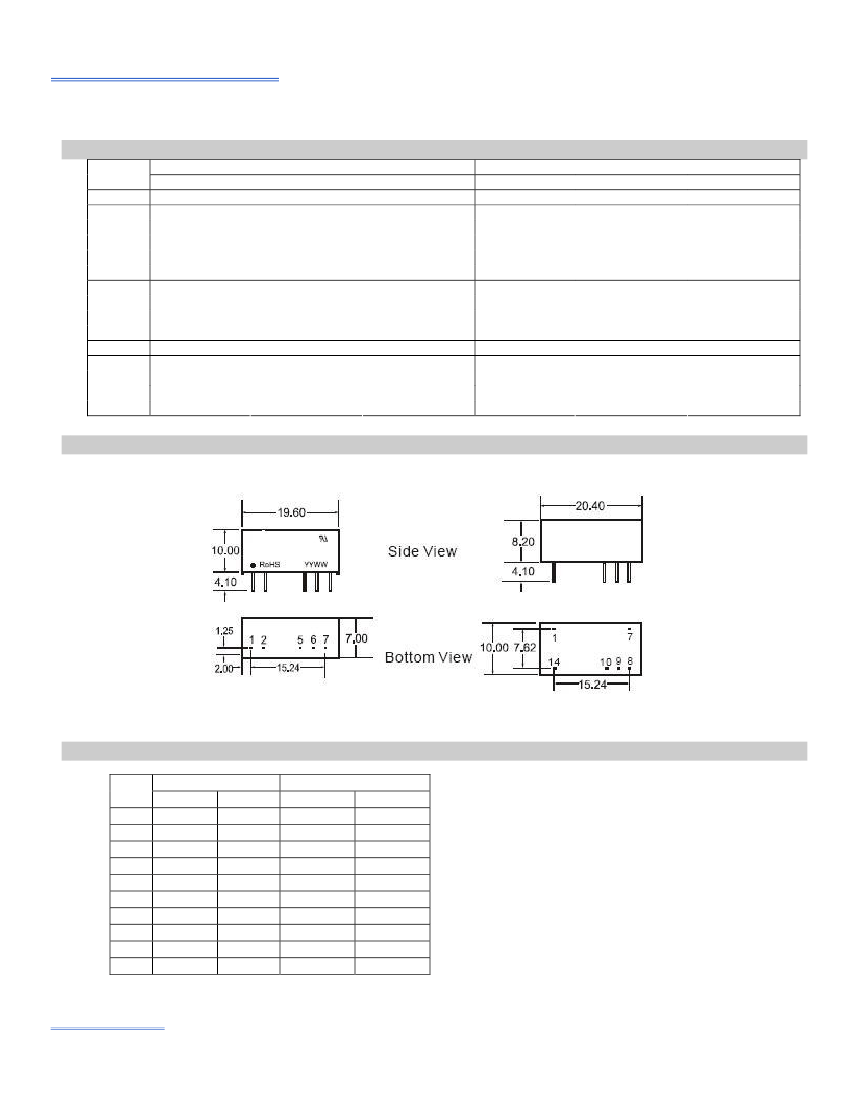

PHYSICAL SPECIFICATIONS

Case Material

Dimensions (length x width x height) (inches)

TRANSITRONIX

Plastic UL94-V0

DIP: 0.8 x 0.39 x 0.28; SIP: 0.77 x 0.28 x 0.39

Ronkonkoma, New York

http://www.transitronix.com
