EEPROM
Austin Semiconductor, Inc.
512K x 8 EEPROM
EEPROM Module
AVAILABLE AS MILITARY
SPECIFICATIONS
•
•
SMD 5962-93091
MIL-STD-883
AS8E512K8

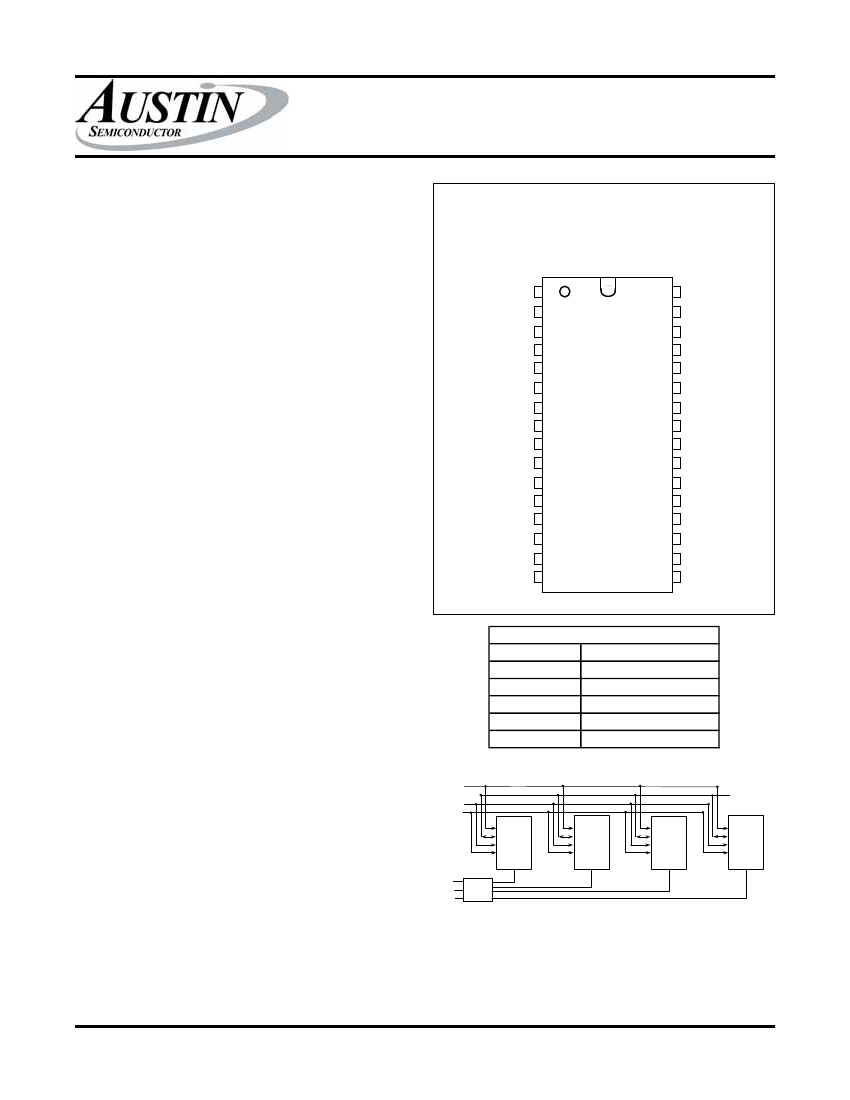

PIN ASSIGNMENT
(Top View)
32-Pin DIP & 32-Pin SOJ (CW)
A18
A16
A15
A12
A7
A6
A5
A4
A3
A2
A1
A0
I/O 0
I/O 1
I/O 2
Vss
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
Vcc
WE\
A17
A14
A13
A8
A9
A11
OE\
A10
CE\
I/O 7
I/O 6
I/O 5
I/O 4
I/O 3
FEATURES
•
•
•
•
•
•
•
•
Access times of 150, 200, 250, and 300 ns
JEDEC Compatible Pinout
10,000 Write Endurance Cycles
10 year Data Retention
Organized as 512Kx8
Operation with single 5 volt supply
Low power CMOS
TTL Compatible Inputs and Outputs
OPTIONS
•
Packaging
32 pin 600 MIL DIP
Timing
150ns
200ns
250ns
300ns
Operating Temperature Range
-Military (-55
o
C to +125
o
C)
-Industrial (-40
o
C to +85
o
C)
MARKING
CW
No. 112
•
-150
-200
-250
-300
•
XT
IT
PIN DESCRIPTION
A0 - A18
Address Inputs
I/O 0 - I/O 7 Data Inputs/Outputs
CE\
Chip Select
OE\
Output Enable
WE\
Write Enable
Vcc
+5.0V Power
GENERAL DESCRIPTION
The Austin Semiconductor, Inc. AS8E512K8 is a
4 Megabit CMOS EEPROM Module organized as 512K x 8-bits.
It is built with four 128K x 8 components and a single decoder.
The AS8E512K8 achieves high speed access, low power
consumption and high reliability by employing advanced CMOS
memory technology. Software data protection is implemented
using the JEDEC Optional Standard algorithm.
This military temperature grade product is ideally suited
for military and space applications requiring high reliability.
A0 - A16
I/O 0 - I/O 7
WE\
OE\
U1
A0 - A16
I/O 0 - I/O 7
WE\
OE\
CE\
U2
A0 - A16
I/O 0 - I/O 7
WE\
OE\
CE\
U3
A0 - A16
I/O 0 - I/O 7
WE\
OE\
CE\
U4
A0 - A16
I/O 0 - I/O 7
WE\
OE\
CE\
A17
A18
CE\
1 of 4
Decoder
For more products and information
please visit our web site at
www.austinsemiconductor.com
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
AS8E512K8
Rev. 3.1 6/05
1
EEPROM
Austin Semiconductor, Inc.
DEVICE OPERATION:
The AS8E512K8 is an electrically erasable and programmable memory
module that is accessed like a Static RAM for the read or write cycle
without the need for external components. The device contains a
128-byte-page register to allow writing of up to 128 bytes of data
simultaneously. During a write cycle, the address and 1 to 128 bytes
of data are internally latched, freeing the address and data bus for other
operations. Following the initiation of a write cycle, the device will
automatically write the latched data using an internal control timer.
The end of a write cycle can be detected by DATA\ polling of I/O7.
Once the end of a write cycle has been detected a new access for a read
or write can begin.
AS8E512K8
TOGGLE BIT:
In addition to DATA\ Polling the AS8E512K8 provides another
method for determining the end of a write cycle. During the write
operation, successive attempts to read data from the device will result
in I/O 6 toggling between one and zero. Once the write has completed,
I/O 6 will stop toggling and valid data will be read. Reading the toggle
bit may begin at any time during the write cycle.
DATA PROTECTION:
If precautions are not taken, inadvertent writes may occur during
transitions of the host power supply. The E
2
module has incorpo-
rated both hardware and software features that will protect the memory
against inadvertent writes.
READ:
The AS8E512K8 is accessed like a Static RAM. When CE\ and
OE\ are low and WE\ is high, the data stored at the memory location
determined by the address pins is asserted on the outputs. The
outputs are put in the high impedance state when either CE\ or OE\ is
high. This dual-line control gives designers flexibility in preventing
bus contention in their system.
HARDWARE PROTECTION:
Hardware features protect against inadvertent writes to the
AS8E512K8 in the following ways: (a) Vcc sense - if Vcc is below
3.8V (typical) the write function is inhibited; (b) Vcc power-on delay
- once Vcc has reached 3.8V the device will automatically time out
5ms (typical) before allowing a write; (c) write inhibit - holding any
one of OE\ low, CE\ high or WE\ high inhibits write cycles; (d) noise
filter - pulses of less than 15 ns (typical) on the WE\ or CE\ inputs will
not initiate a write cycle.
BYTE WRITE:
A low pulse on the WE\ or CE\ input with CE\ or WE\ low
(respectively) and OE\ high initiates a write cycle. The address is
latched on the falling edge of CE\ or WE\, whichever occurs last. The
data is latched by the first rising edge of CE\ or WE\. Once a byte,
word or double word write has been started it will automatically time
itself to completion.
SOFTWARE DATA PROTECTION:
A software controlled data protection feature has been imple-
mented on theAS8E512K8. When enabled, the software data protec-
tion (SDP), will prevent inadvertent writes. The SDP feature may be
enabled or disabled by the user and is shipped with SDP disabled,
SDP is enabled by the host system issuing a series of three write
commands; three specific bytes of data are written to three specific
addresses (refer to Software Data Protection Algorithm). After
writing the three byte command sequence and after t
WC
for each of the
die the entire AS8E512K8 will be protected from inadvertent write
operations. It should be noted, that once protected the host may still
perform a byte or page write to the AS8E512K8. This is done by
preceding the data to be written by the same three byte command
sequence used to enable SDP. Once set, SDP will remain active unless
the disable command sequence is issued. Power transitions do not
disable SDP and SDP will protect the AS8E512K8 during power-up
and power-down conditions. All command sequences must conform
to the page write timing specifications. The data in the enable and
disable
command sequences is not written to the device and the
memory addresses used in the sequence may be written with data in
either a byte or page write operation.
After setting SDP, any attempt to write to the device without the
three byte command sequence will start the internal write timers. No
data will be written to the device; however, for the duration of t
WC
,
read operations will effectively be polling operations.
PAGE WRITE:
The page write operation of the AS8E512K8 allows 1 to 128
BWDWs of data to be written into the device during a single internal
programming period. Each new BWDW must be written within 150us
(t
BLC
) of the previous BWDW. If the t
BLC
limit is exceeded the
AS8E512K8 will cease accepting data and commence the internal
programming operation. For each WE\ high to low transition during
the page write operation, A7-A18 must be the same.
The A0-A6 inputs are used to specify which bytes within the page
are to be written. The bytes may be loaded in any order and may be
altered within the same load period. Only bytes which are specified
for writing will be written; unnecessary cycling of other bytes within
the page does not occur.
DATA\ POLLING:
The AS8E512K8 features DATA\ Polling to indicate the end of a
write cycle. During a byte or page write cycle an attempted read of
the last byte written will result in the complement of the written data
to be presented on I/O 7. Once the write cycle has been completed,
true data is valid on all outputs, and the next write cycle may begin.
DATA\ Polling may begin at anytime during the write cycle.
AS8E512K8
Rev. 3.1 6/05
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
2
EEPROM
Austin Semiconductor, Inc.
ABSOLUTE MAXIMUM RATINGS*
Voltage on Vcc Supply Relative to Vss
Supply/Input Voltage Range
1
.........................-0.6V to +6.25V DC
Voltage on OE\ and A9....................................-0.6V to +13.5V DC
Voltage on all other pins..................................-0.6V to +6.25V DC
Storage Temperature.............................................-65°C to +150°C
Operating Temperature, T
A
(Ambient)................-55
o
C to +125
o
C
Lead Temperature (soldering 10 seconds)........................+300
o
C
Maximum Junction Temperature**....................................+165°C
NOTE:
1. Including NC pins, with respect to ground.
AS8E512K8
*Stresses greater than those listed under "Absolute Maximum
Ratings" may cause permanent damage to the device. This is
a stress rating only and functional operation of the device at
these or any other conditions above those indicated in the
operation section of this specification is not implied. Exposure
to absolute maximum rating conditions for extended periods
may affect reliability.
** Junction temperature depends upon package type, cycle
time, loading, ambient temperature and airflow.
PIN CAPACITANCE
(f= 1MHz, T = 25° C)
(1)
SYMBOL
C
ADD, OE\, WE\
C
I/O
C
CE\
CONDITIONS
V
IN
= 0V, f = 1MHz
V
OUT
= 0V, f = 1MHz
V
IN
= 0V, f = 1MHz
MAX
45
50
10
UNIT
pF
pF
pF
OPERATING MODES
MODE
Read
Write
2
CE\
V
IL
V
IL
V
IH
X
X
X
OE\
V
IL
V
IH
X
1
WE\
V
IH
V
IL
X
V
IH
X
X
I/O
D
OUT
D
IN
High Z
Standby/Write Inhibit
Write Inhibit
Write Inhibit
Output Disable
NOTE:
1. X can be V
IL
or V
IH.
2. Refer to AC Programming Waveforms.
X
V
IL
V
IH
High Z
ELECTRICAL CHARACTERISTICS AND RECOMMENDED DC OPERATING CONDITIONS
(-55
o
C<T
A
<+125
o
C; Vcc = 5V +10%)
PARAMETER
Input Load Current
Output Leakage Current
Vcc Standby Current CMOS
Vcc Standby Current TTL
Vcc Active Current
Input Low Voltage
Input High Voltage
Output Low Voltage
Output High Voltage
Output High Voltage CMOS
AS8E512K8
Rev. 3.1 6/05
CONDITION
V
IN
= OV to Vcc + 1V
V
I/O
= OV to Vcc
CE\ = Vcc -0.2V to Vcc + 1
CE\ = 2.2V to Vcc + 1
F = 5 MHz; I
OUT
= 0 mA
SYMBOL
I
LI
I
LO
I
SB1
I
SB2
I
CC
V
IL
V
IH
I
OL
= 2.1 mA
I
OH
= -400
µA
V
OL
V
OH1
V
OH2
MIN
-20
-20
MAX
20
20
UNITS
µΑ
µΑ
mA
20
120
0.8
2.0
0.45
2.4
4.2
mA
mA
V
V
V
V
V
I
OH
= -100
µA;
Vcc = 4.5V
Austin Semiconductor, Inc. reserves the right to change products or specifications without notice.
3
