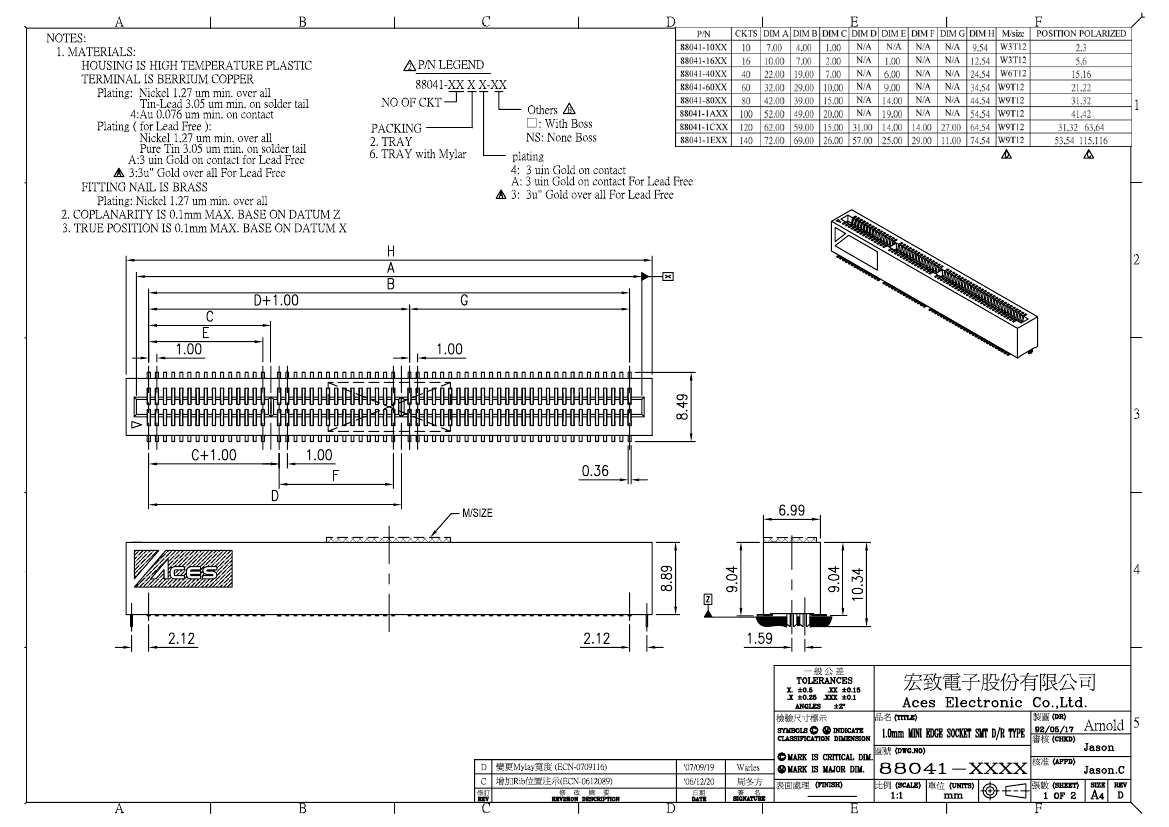

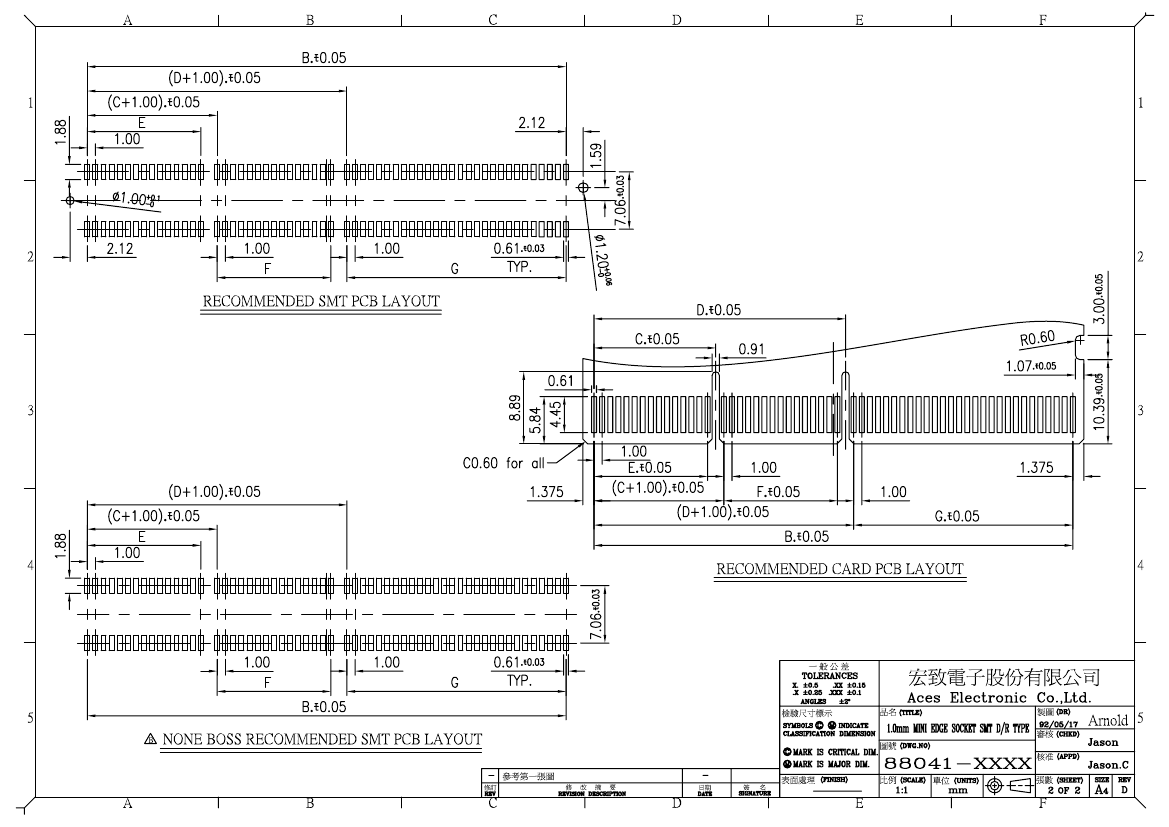

88041-106A-NS: DescriptionCard Edge Connector, 10 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug; CategoryThe connector The connector; File Size472KB，2 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

88041-106A-NS Overview

Card Edge Connector, 10 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug

88041-106A-NS Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
body width	0.275 inch
subject depth	0.356 inch
body length	0.376 inch
Body/casing type	PLUG
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Dielectric withstand voltage	500VAC V
Durability	500 Cycles
Insulation resistance	5000000000 Ω
insulator material	THERMOPLASTIC
JESD-609 code	e3
Manufacturer's serial number	88041
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	6.858 mm
Plating thickness	3u inch
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

Preview

Download Datasheet

View All

88041-106A-NS Related Products

	88041-106A-NS	88041-8023-NS	88041-106A
Description	Card Edge Connector, 10 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug	Card Edge Connector, 80 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug	Card Edge Connector, 10 Contact(s), 2 Row(s), Straight, 0.039 inch Pitch, Surface Mount Terminal, Locking, Plug
Is it Rohs certified?	conform to	conform to	conform to
Maker	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown
body width	0.275 inch	0.275 inch	0.275 inch
subject depth	0.356 inch	0.356 inch	0.356 inch
body length	0.376 inch	1.754 inch	0.376 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	30 mΩ	30 mΩ	30 mΩ
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V
Durability	500 Cycles	500 Cycles	500 Cycles
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e3	e4	e3
Manufacturer's serial number	88041	88041	88041
Plug contact pitch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	2	2	2
Number of rows loaded	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	6.858 mm	6.858 mm	6.858 mm
Plating thickness	3u inch	3u inch	3u inch
Rated current (signal)	2 A	2 A	2 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.9906 mm	0.9906 mm	0.9906 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	10	80	10
