88407-01801-001 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 88407-01801-001

88407-01801-001: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle; CategoryThe connector The connector; File Size159KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

88407-01801-001 Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle

88407-01801-001 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Board mount options	FITTING NAIL
body width	0.2 inch
subject depth	0.232 inch
body length	0.476 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	55 mΩ
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	88407
Plug contact pitch	0.039 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.6896 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	18

Preview

Download Datasheet

View All

XXX

001

Color Material

Natural NY46

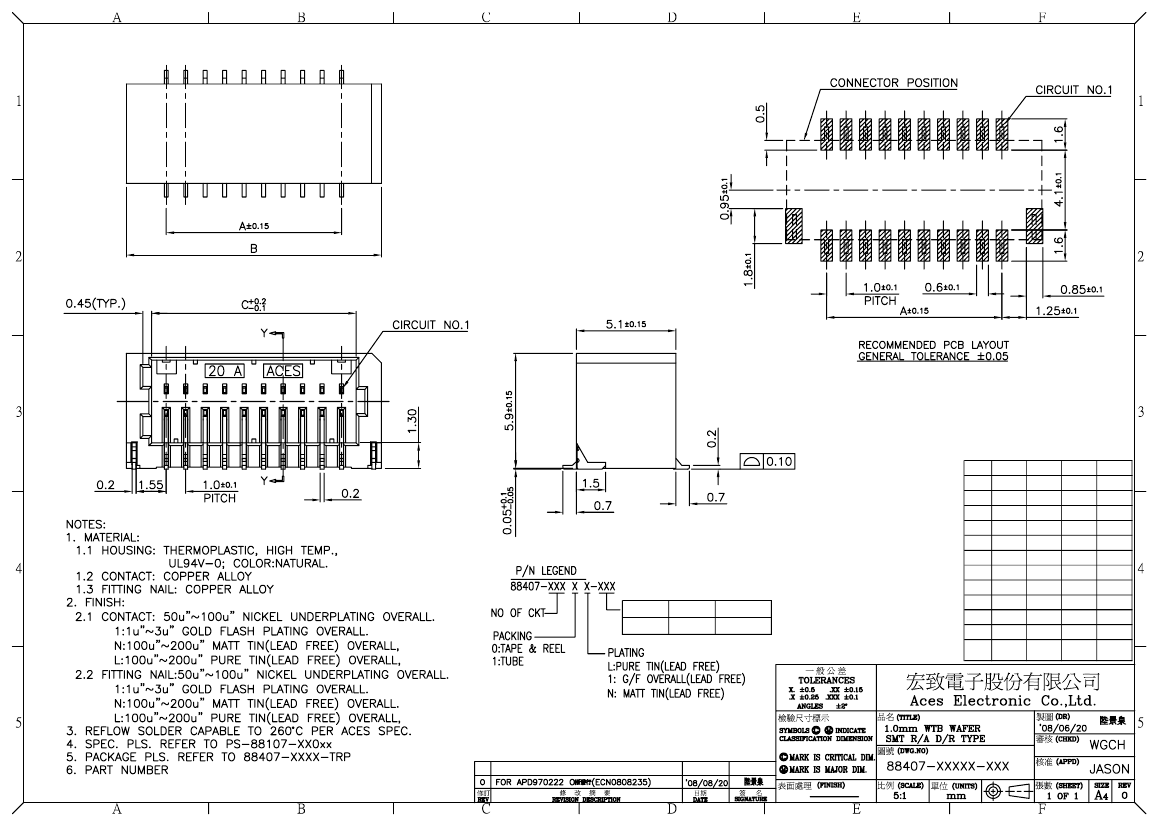

CKT Dim A Dim B Dim C

狀態欄

3.0

7.1

4.4

4.0

8.1

5.4

5.0

9.1

6.4

7.0

11.1

8.4

8.0

12.1

9.4

9.0

13.1

10.4

11.0 15.1

12.4

14.0 18.1

15.4

16.0 20.1

17.4

19.0 23.1

20.4

24.0 28.1

25.4

29.0

33.1

30.4

88407-01801-001 Related Products

	88407-01801-001	EM211506HL	88407-01011-001	88407-01601-001	88407-02401-001	88407-02411-001	88407-0241L-001
Description	Board Connector, 18 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Pluggable Terminal Block with Flanges; (Mates with EM2215 Series);5.00 Centers	Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 16 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle	Board Connector, 24 Contact(s), 2 Row(s), Male, Right Angle, 0.039 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Receptacle
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	-	unknown	unknown	unknown	unknown	unknown
Board mount options	FITTING NAIL	-	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.2 inch	-	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
subject depth	0.232 inch	-	0.232 inch	0.232 inch	0.232 inch	0.232 inch	0.232 inch
body length	0.476 inch	-	0.319 inch	0.437 inch	0.594 inch	0.594 inch	0.594 inch
Body/casing type	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI	AU ON NI	SN ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier	-	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE	-	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	55 mΩ	-	55 mΩ	55 mΩ	55 mΩ	55 mΩ	55 mΩ
Dielectric withstand voltage	300VAC V	-	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Durability	50 Cycles	-	50 Cycles	50 Cycles	50 Cycles	50 Cycles	50 Cycles
Insulation resistance	500000000 Ω	-	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
Insulator color	NATURAL	-	NATURAL	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	THERMOPLASTIC	-	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
JESD-609 code	e4	-	e4	e4	e4	e4	e3
Manufacturer's serial number	88407	-	88407	88407	88407	88407	88407
Plug contact pitch	0.039 inch	-	0.039 inch	0.039 inch	0.039 inch	0.039 inch	0.039 inch
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	-	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	-	ONE	ONE	ONE	ONE	ONE
PCB row number	2	-	2	2	2	2	2
Number of rows loaded	2	-	2	2	2	2	2
Maximum operating temperature	85 °C	-	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.6896 mm	-	5.6896 mm	5.6896 mm	5.6896 mm	5.6896 mm	5.6896 mm
Plating thickness	FLASH inch	-	FLASH inch	FLASH inch	FLASH inch	FLASH inch	-
polarization key	POLARIZED HOUSING	-	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	1 A	-	1 A	1 A	1 A	1 A	1 A
Guideline	UL	-	UL	UL	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	0.508 mm	-	0.508 mm	0.508 mm	0.508 mm	0.508 mm	0.508 mm
Termination type	SURFACE MOUNT	-	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	18	-	10	16	24	24	24
