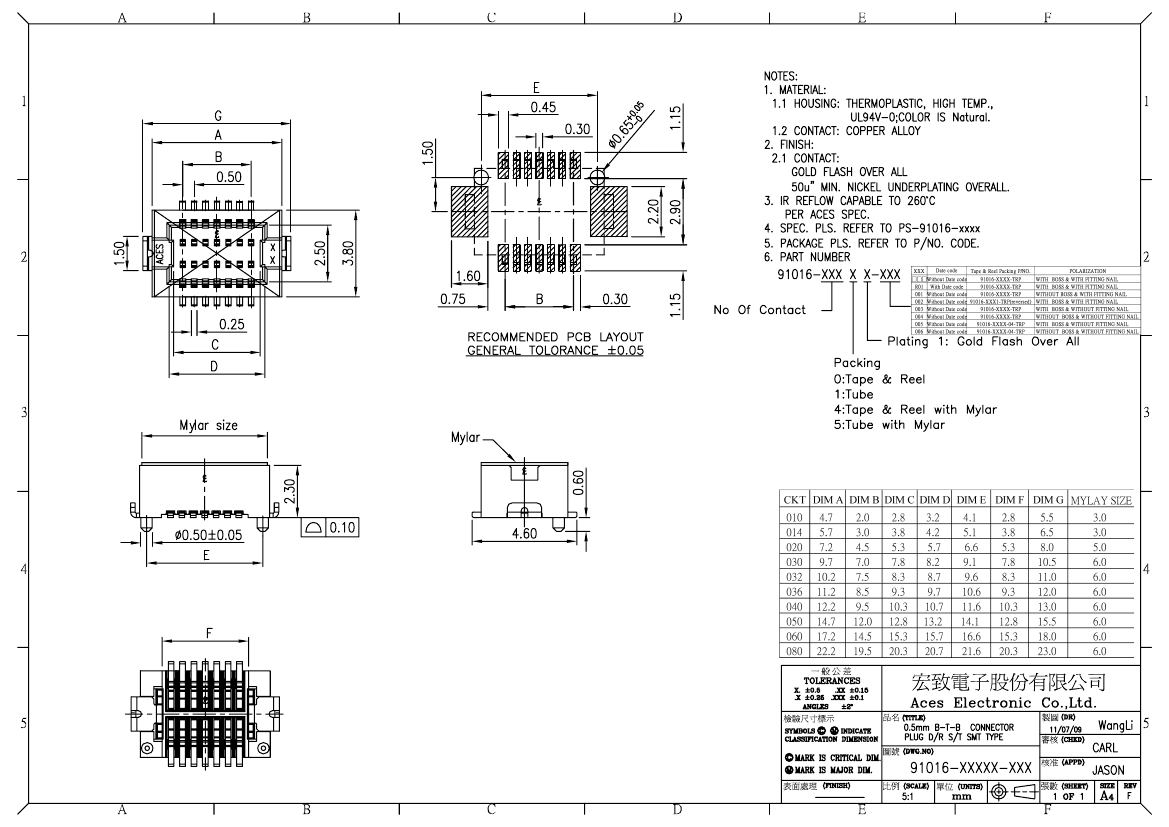

91016-08001-R01 datasheet, PDF

91016-08001-R01: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerAces Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

91016-08001-R01 Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.02 inch Pitch, Surface Mount Terminal, Locking, Natural Insulator, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Aces Electronics Co., Ltd.
Reach Compliance Code	unknown
Board mount options	PEG
body width	0.149 inch
subject depth	0.09 inch
body length	0.905 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	50 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	150VAC V
Durability	50 Cycles
Insulation resistance	500000000 Ω
Insulator color	NATURAL
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	91016
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-45 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.0386 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.3 A
Guideline	UL
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	80
