AC Power Line Choke
File Size34KB,1 Pages
ManufacturerPCA Electronics Inc.
Websitehttp://www.pca.com/
Download Datasheet View All

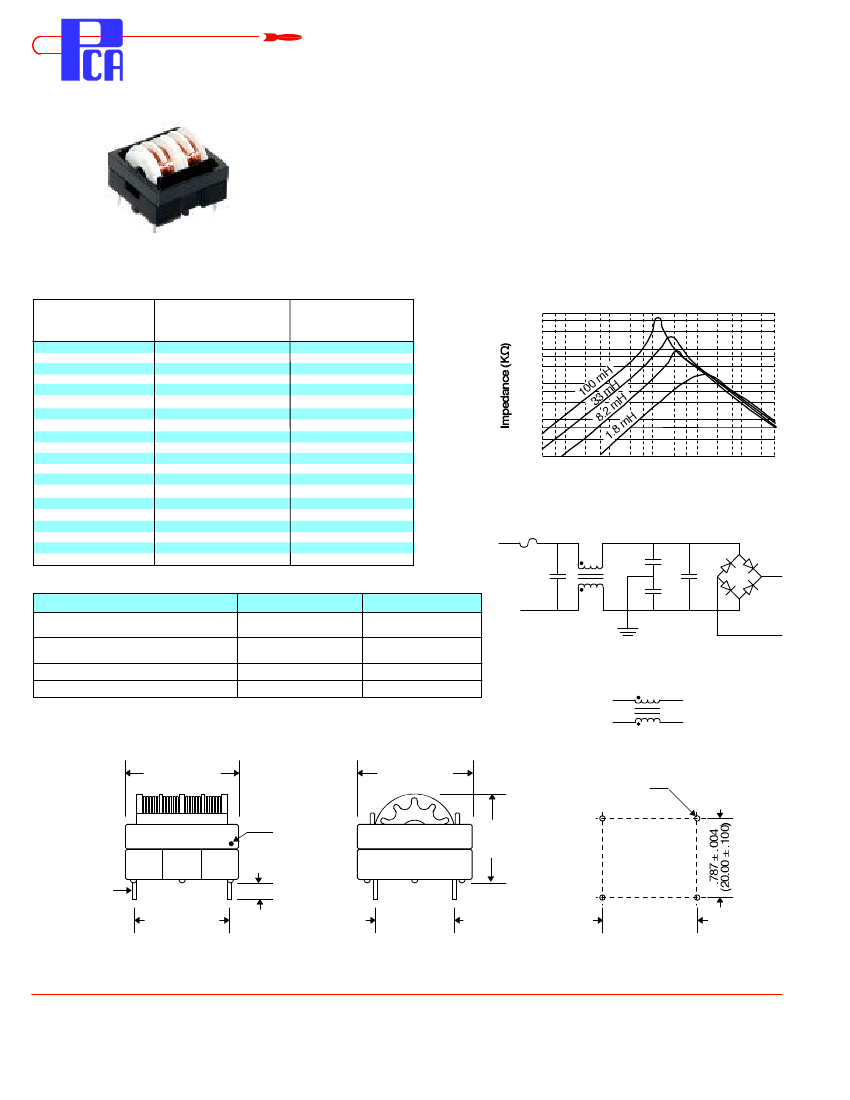

EPZ3046H-102_09 Overview

AC Power Line Choke

AC Power Line Choke
ELECTRONICS INC.
EPZ3046H-XXX & EPZ3046H-XXX-LF
• Used as AC Power Line Filters in CTV, VTR, Audio,
PC, Facsimile and Power Supply Applications
• Add “-LF” after part number for Lead-Free
• UL940-V Recognized Materials
• Temperature Rise : 45°C Max.
• UL1446 Insulating System
• 2000 Vrms Isolation
Electrical Parameters @ 25° C
Part
Number
EPZ3046H-102
EPZ3046H-152
EPZ3046H-182
EPZ3046H-222
EPZ3046H-272
EPZ3046H-332
EPZ3046H-392
EPZ3046H-472
EPZ3046H-472A
EPZ3046H-562
EPZ3046H-562A
EPZ3046H-822
EPZ3046H-103
EPZ3046H-123
EPZ3046H-183
EPZ3046H-223
EPZ3046H-273
EPZ3046H-333
EPZ3046H-393
EPZ3046H-683
Inductance
(mH Min.)
[Pins 1-2, 4-3]
1.0
1.5
1.8
2.2
2.7
3.3
3.9
4.7
4.7
5.6
5.6
8.2
10
12
18
22
27
33
39
68
Current Rating
(A rms Max.)
3.4
3.1
2.8
2.8
2.6
2.5
2.2
2.0
2.5
1.8
2.1
1.7
1.6
1.6
1.2
1.0
0.8
0.8
0.7
0.5
1000
100
10
1
0.1
Impedance Characteristics
1
KHz
10
100
1
KHz
KHz
MHz
Frequency (Hz)
10
MHz
Circuit Sample
AC Line
Notes :
1. Assembly Process
(Solder Composition)
EPZ3046H-XXX
(Assembly Solder)
SnPb
260°C
10 (+2/-0) seconds
EPZ3046H-XXX-LF
SnAg
260°C
10 (+2/-0) seconds
2. Peak Solder Rating
(per JESD22-B106-B)
3. Weight
4. Packaging Information
(Tray)
TBD grams
TBD pieces/tray
TBD grams
TBD pieces/tray
Schematic
1
1:1
4
3
2
Package
1.122 ± .039
(28.50 ± 1.00)
1.142 ± .039
(29.00 ± 1.00)
Recommended PWB
Piercing Plan
.047 Ø ± .004
(1.20 Ø ± .100)
.886 ± .039
(22.50 ± 1.00)
1
4
PCA EPZ3046H-XXX
D.C.
Pin 1 I.D.
.157 ± .039
(4.00 ± 1.00)
.031 Ø ± .004
(.800 Ø ± .10)
.945 ± .020
(24.00 ± .500)
.787 ± .020
(20.00 ± .500)
2
.945 ± .004
(24.00 ± .100)
3
Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSZ3046H-XXX & -LF
Rev. 3
8/3/05 FT
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
