SHOULDER ELECTRONICS CO., LTD.
CERAMIC RESONATOR
Data Sheet
PRODUCT
产 品:
CERAMIC RESONATOR
MODEL NO
型 号:
ZTACV....MT
PREPARED
编 制:
CHECKED
审 核:
APPROVED
批 准:
DATE
日 期:
2007-01-25
Fengyu
York
Http://www.shoulder.cn
SHOULDER ELECTRONICS CO., LTD.
1.
Scope
The specification is fit for ceramic resonator 8.00-13.00MHz.
2. Part NO: ZTACV … MT
3.
No.
3-1
3.2
3.3
3.4
3.5
3.6
Electrical Characteristics
Item
Oscillate Frequency (MHz)
Frequency Tolerance max
Resonant Impedance max (Ω)
Built – in Capacitance (PF)
Insulate Resistance min (MΩ)
Withstanding Voltage D.C (V)
Voltage
1
D.C Voltage max V
2
Input Voltage max V
Temp characteristics of Oscillate frequency max
Operating Temp Range
Storage Temp (
)
100
Characteristics
8.00-13.00
±0.5%
30
--
100
max 5 sec
3.7
6
15Vp-p
±0.3%
-20 ~ +80
-55 ~ +85
3.8
3.9
3.10
4.
Test Circuit
5V
IC
1Mohm
IC
Output
C1
X
C2
IC: 1/6TC4069UBPx2
X: Ceramic Resonator
C1C2: 30PF
5.
Dimension
6. Physical and Environmental Characteristics
No
6.1
Item
Humidity
Performance
Requirements
It shall fulfill the
Keep the resonator at 40 2 and
90-95% RH for 96
4 hours. Then specifications in Table
release the resonator into the room 1.
condition for 1 hour prior to the
measurement.
Subject the resonator to vibration for 2 It shall fulfill the
hours each in x,y and z axis with the specifications in Table
amplitude of 1.5mm, the frequency shall 1.
be varied uniformly between the limits of
10-55Hz
Drop the resonator randomly onto a It shall fulfill the
concrete floor from the height of
specifications in Table
100 cm 3 times.
1.
Condition of Test
6.2
Vibration
6.3
Mechanical
Shock
6.4
Soldering
Test
6.5
Solder
Ability
High
Temperature
Exposure
Low
Temperature

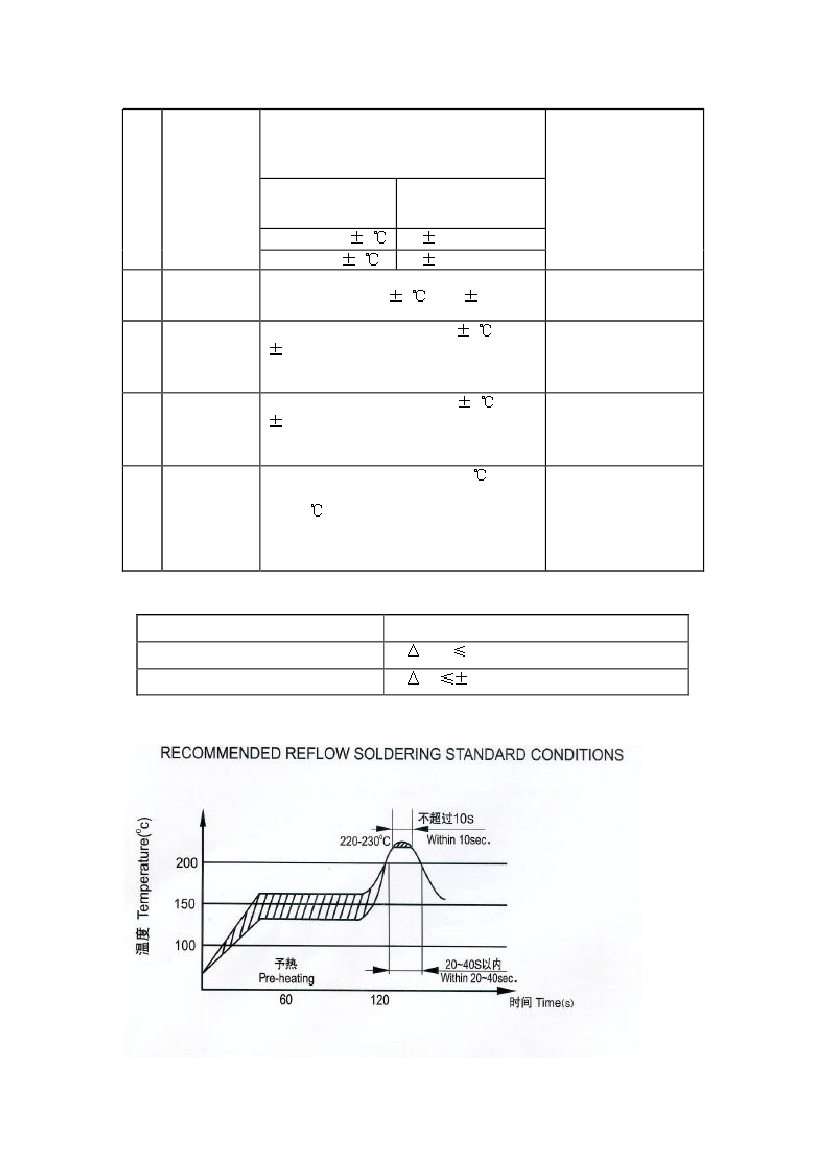

Passed through the re-flow oven under
the following condition and left at room
temperature
for
1
hour
before
measurement.
Temperature
at
surface of the Time
substrate
Preheat 150 5
60 10 sec.
Peak 240 5
10 3 sec.
Dip the resonator terminals into the
solder bath at 230 5 for 3 0.5 sec.
It shall fulfill the
specifications in Table
1.
6.6
6.7
6.8
Temperature
Cycling
More than 95% of the
terminal surface shall
be covered.
Subject the resonator to 80 5
for 96 It shall fulfill the
4 hours. Then release the resonator specifications in Table
into the room conditions for 1 hour prior 1.
to the measurement.
Subject the resonator to –20 5 for 96 It shall fulfill the
4 hours. Then release the resonator specifications in Table
into the room conditions for 1 hour prior 1.
to the measurement.
Subject the resonator to –20
for 30 It shall fulfill the
minutes followed by a high temperature specifications in Table
of 85
for 30 min. Cycling shall be 1.
repeated 5 times with a transfer time of
15 second at the room condition for 1
hour prior to the measurement.
TABLE1
Item
Oscillation Frequency Change
Resonant Impedance
F/Fo
Ro
Specification
0.3% max
10 Ohm
7.
8. Packing

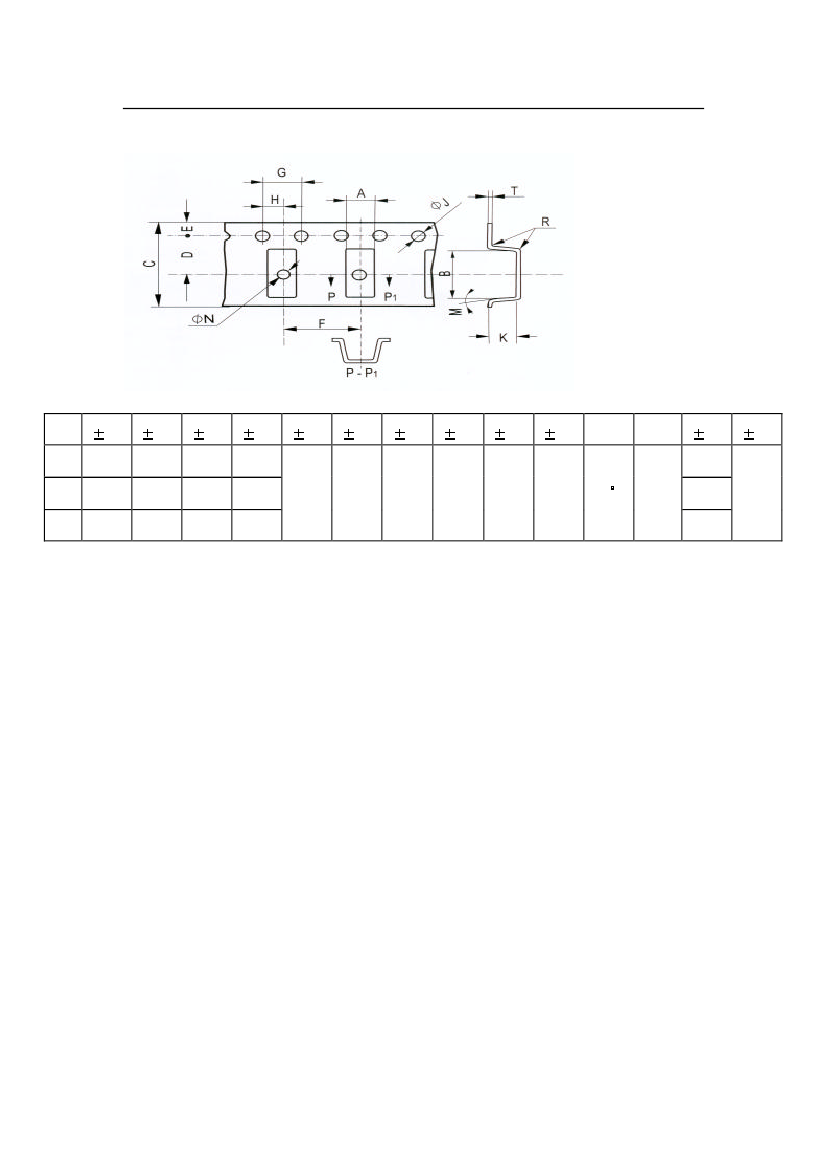

Tape Dimension (mm)
A
0.2
MG
MT
MX
3.8
5.0
3.4
B
0.2
7.8
4.4
4.0
C
0.3
16.0
12.0
12.0
D
0.1
7.5
5.5
5.5
1.75
8.0
4.0
2.0
1.5
1.6
10
0.3
E
0.1
F
0.1
G
0.1
H
0.1
ØJ
0.1
ØN
0.1
M
max
R
max
K
0.2
2.1
1.8
1.3
0.3
T
0.1
Standard Package: 1Kpcs / reel
