GMM784000S-80 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> GMM784000S-80

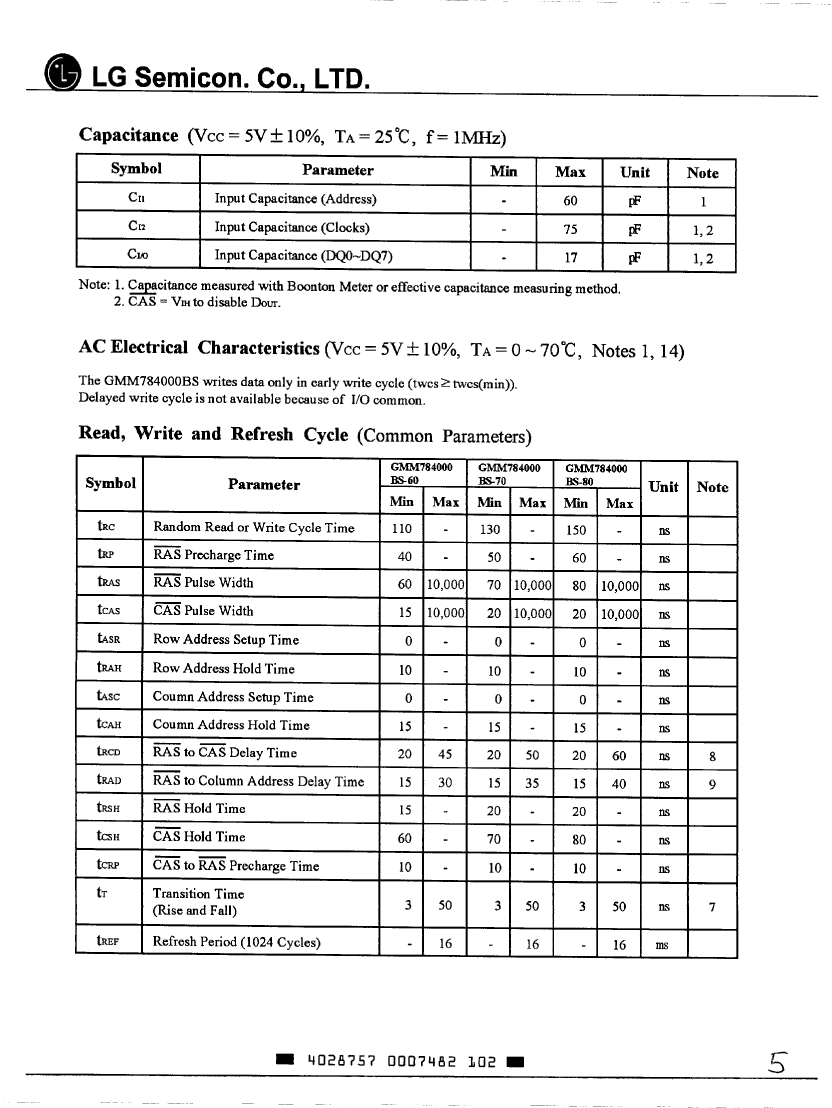

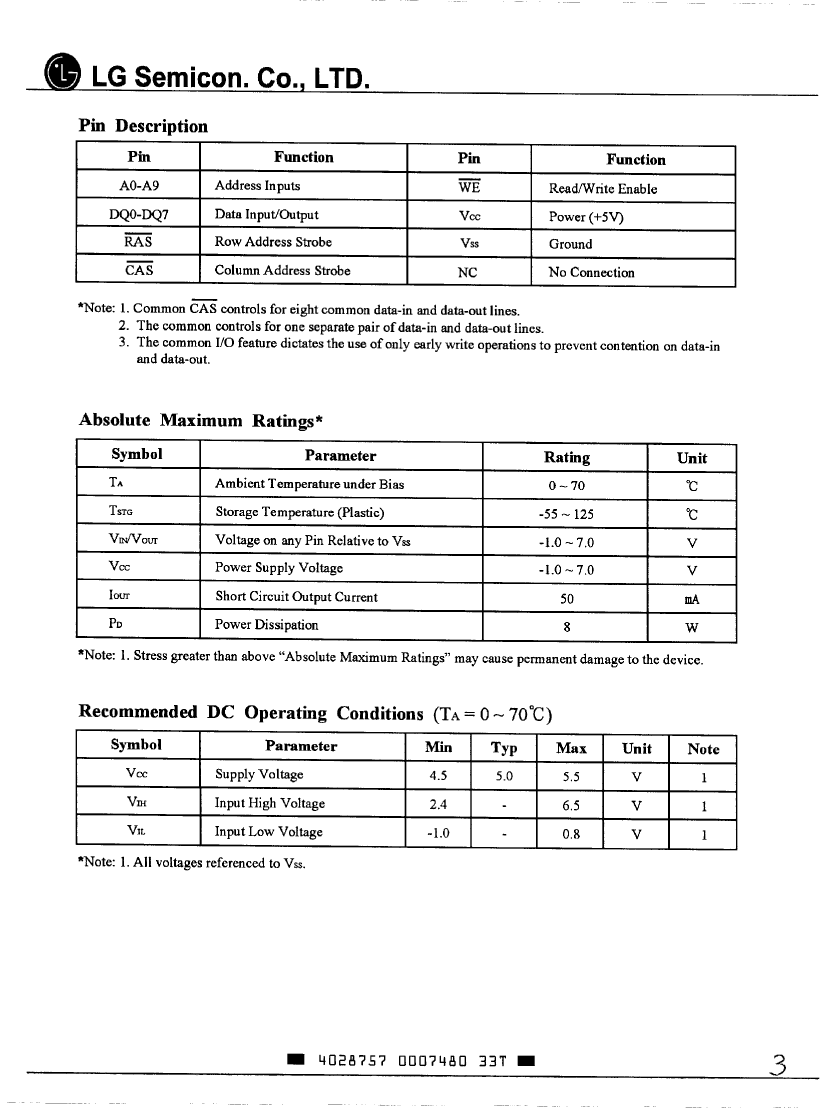

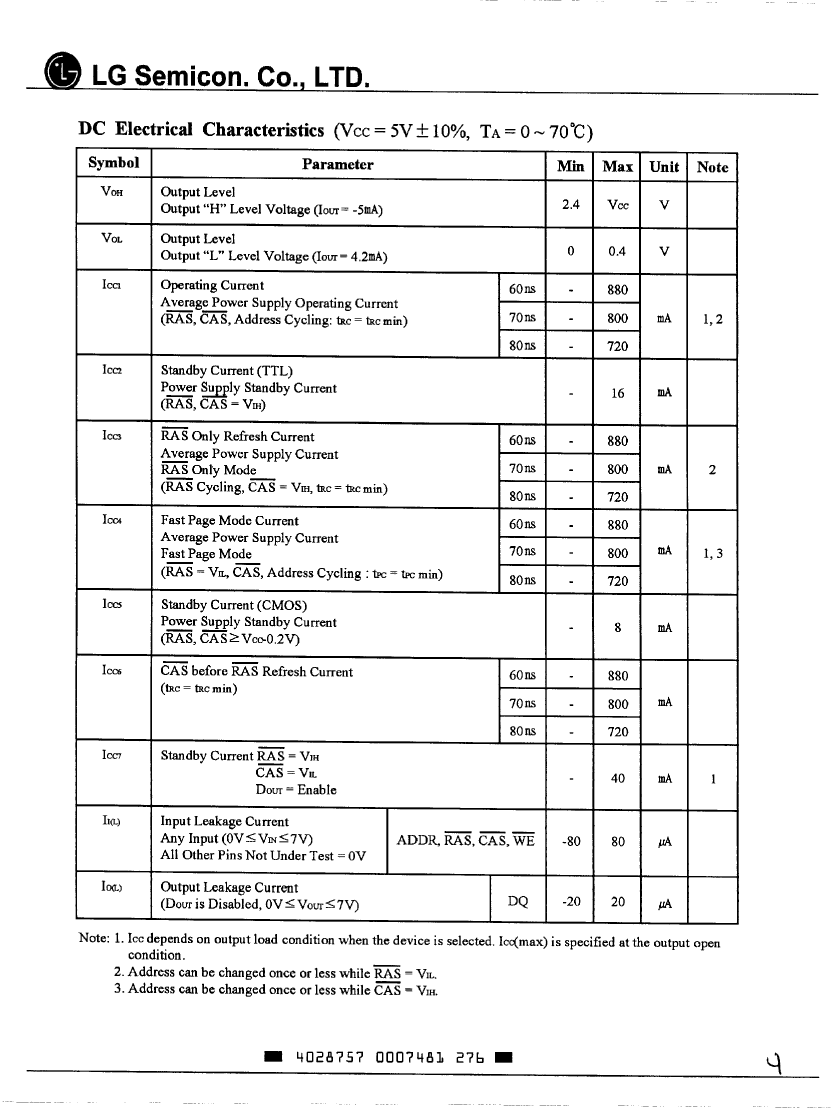

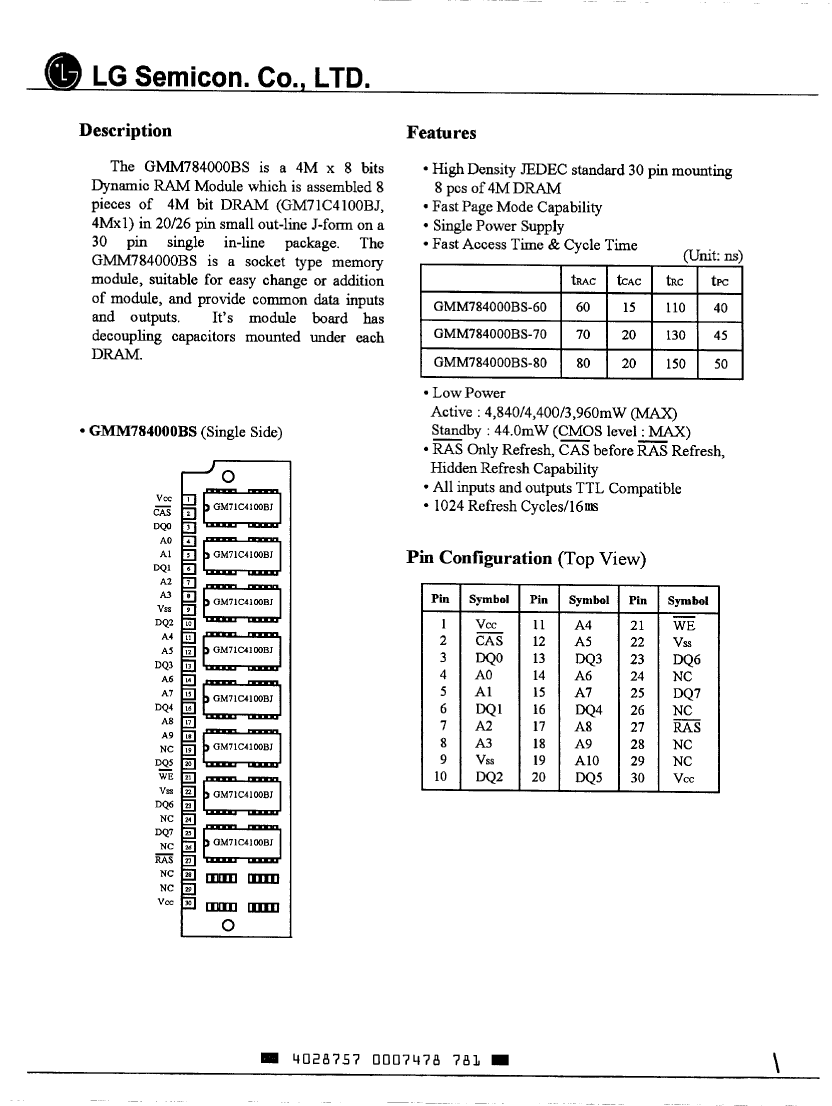

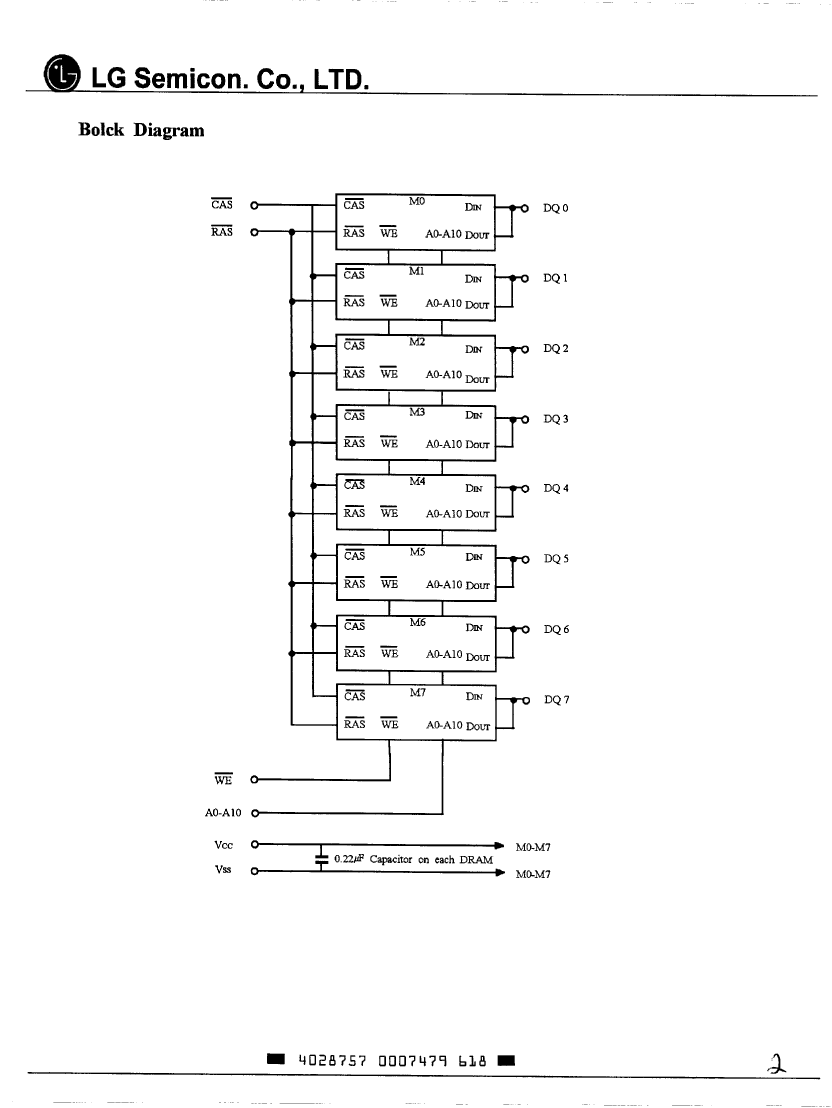

GMM784000S-80: DescriptionFast Page DRAM Module, 4MX8, 80ns, CMOS, PSMA30,; Categorystorage storage; File Size795KB，15 Pages; ManufacturerLG Semicon Co., Ltd.

Download Datasheet Parametric Compare View All

GMM784000S-80 Overview

Fast Page DRAM Module, 4MX8, 80ns, CMOS, PSMA30,

GMM784000S-80 Parametric

Parameter Name	Attribute value
Maker	LG Semicon Co., Ltd.
Reach Compliance Code	unknown
Maximum access time	80 ns
I/O type	COMMON
JESD-30 code	R-PSMA-N30
memory density	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE
memory width	8
Number of terminals	30
word count	4194304 words
character code	4000000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX8
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SIMM
Encapsulate equivalent code	SIM30
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	5 V
Certification status	Not Qualified
refresh cycle	1024
Maximum seat height	20.32 mm
Maximum standby current	0.008 A
Maximum slew rate	0.72 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	2.54 mm
Terminal location	SINGLE

Preview

Download Datasheet

View All

GMM784000S-80 Related Products

	GMM784000S-80	GMM784000BS-70	GMM784000BS-60	GMM784000BS-80	GMM784000S-70	GMM784000S-60
Description	Fast Page DRAM Module, 4MX8, 80ns, CMOS, PSMA30,	Fast Page DRAM Module, 4MX8, 70ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX8, 60ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX8, 80ns, CMOS, SIMM-30	Fast Page DRAM Module, 4MX8, 70ns, CMOS, PSMA30,	Fast Page DRAM Module, 4MX8, 60ns, CMOS, PSMA30,
Maker	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.	LG Semicon Co., Ltd.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	80 ns	70 ns	60 ns	80 ns	70 ns	60 ns
I/O type	COMMON	COMMON	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PSMA-N30	R-XSMA-N30	R-XSMA-N30	R-XSMA-N30	R-PSMA-N30	R-PSMA-N30
memory density	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit	33554432 bit
Memory IC Type	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE	FAST PAGE DRAM MODULE
memory width	8	8	8	8	8	8
Number of terminals	30	30	30	30	30	30
word count	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words	4194304 words
character code	4000000	4000000	4000000	4000000	4000000	4000000
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
organize	4MX8	4MX8	4MX8	4MX8	4MX8	4MX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIMM	SIMM	SIMM	SIMM	SIMM	SIMM
Encapsulate equivalent code	SIM30	SIM30	SIM30	SIM30	SIM30	SIM30
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
refresh cycle	1024	1024	1024	1024	1024	1024
Maximum seat height	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm	20.32 mm
Maximum standby current	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A	0.008 A
Maximum slew rate	0.72 mA	0.8 mA	0.88 mA	0.72 mA	0.8 mA	0.88 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
