TDD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> TDD

TDD: Description4 Quadrant Logic Level TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92; CategoryAnalog mixed-signal IC Trigger device; File Size150KB，2 Pages; ManufacturerHutson Industries

Download Datasheet Parametric Compare View All

TDD Overview

4 Quadrant Logic Level TRIAC, 400V V(DRM), 1A I(T)RMS, TO-92

TDD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Hutson Industries
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	unknown
Other features	SENSITIVE GATE
Configuration	SINGLE
Maximum DC gate trigger current	5 mA
Maximum DC gate trigger voltage	2 V
Maximum holding current	10 mA
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e0
Maximum leakage current	0.1 mA
Number of components	1
Number of terminals	3
Maximum operating temperature	110 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	1 A
Off-state repetitive peak voltage	400 V
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	4 QUADRANT LOGIC LEVEL TRIAC

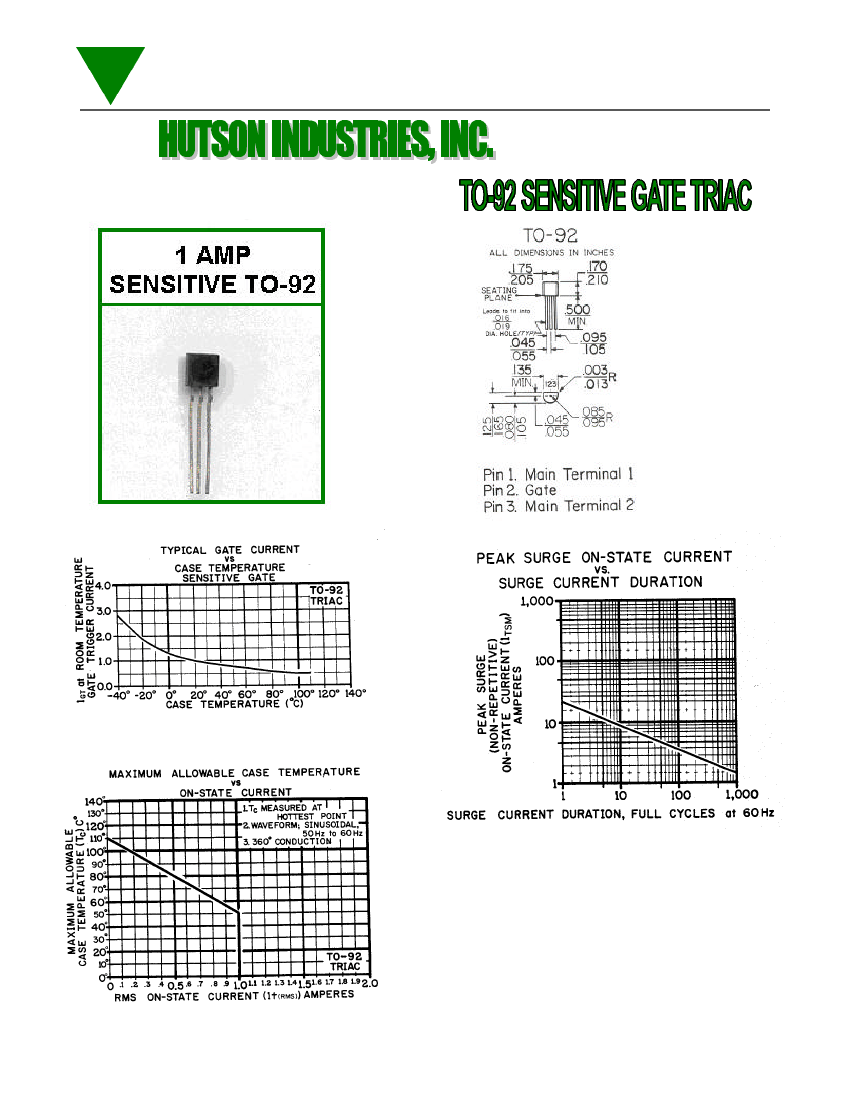

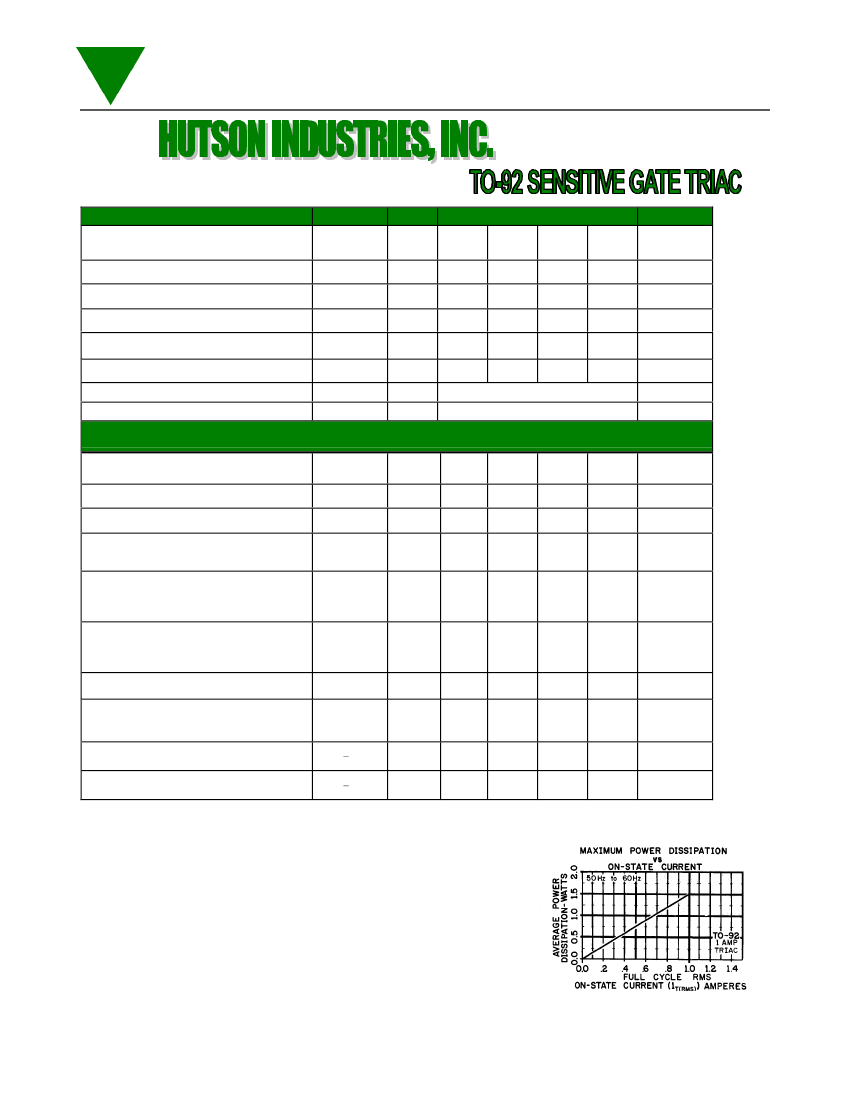

TDD Preview

MAXIMUM RATINGS

REPETITIVE PEAK OFF-STATE VOLTAGE (1)

GATE OPEN, AND TJ = 110° C

RMS ON-STATE CURRENT AT

TC = 50º C AND CONDUCTION, ANGLE OF 360º

PEAK SURGE (NON-REPETITIVE) ON-STATE

CURRENT, ONE-CYCLE, AT 50HZ OR 60HZ

PEAK GATE - TRIGGER CURRENT FOR 3µSEC.

MAX.

PEAK GATE-POWER DISSIPATION AT

IGT IGTM

AVERAGE GATE - POWER DISSIPATION

STORAGE TEMPERATURE RANGE

OPERATING TEMPERATURE RANGE, TJ

ELECTRICAL CHARACTERISTICS

AT SPECIFIED CASE TEMPERATURE

PEAK OFF - STATE CURRENT (1) GATE OPEN

TC = 110° C VDRM = MAX. RATING

MAXIMUM ON - STATE VOLTAGE, (1)

AT TC = 25° C AND IT = RATED AMPS

DC HOLDING CURRENT, (1) GATE

OPEN AND TC = 25° C

CRITICAL RATE-OF-RISE OF OFF-

STATE VOLTAGE, (1) FOR VD =

VDRM GATE OPEN, TC = 110° C

CRITICAL RATE-OF-RISE OF

COMMUNICATION VOLTAGE, (1) AT

TC = 80° C, GATE UNENERGIZED,

VD = VDRM, IT = IT (RMS)

DC GATE - TRIGGER CURRENT FOR

VD = 12VDC. RL = 60 OHM AND AT TC = 25° C

(T2 + GATE + T2 - GATE-) Q 1 & 3

(T2 + GATE - T2 - GATE +) Q 2 & 4

DC GATE - TRIGGER VOLTAGE FOR

VD = 12VDC. RL = 60 OHM AND AT TC = 25° C

GATE CONTROLLED TURN-ON TIME

FOR VD = VDRM IGT = 80MA TR = 0.1 µSEC.

IT = 10A (PEAK) AND TC = 25° C

THERMAL RESISTANCE, JUNCTION-TO-CASE

THERMAL RESISTANCE, JUNCTION-TO-

AMBIENT

SYMBOL VDRM

VDRM

IT(RMS)

ITSM

IGTM

PGM

PG(AV)

TSTG

TOPER

200

400

600

TBS

TDS

TMS

1.0

0.2

DEVICE NUMBERS

TBD

TDD

TMD

1.0

0.2

-40

TBG

TDG

TMG

1.0

0.2

+150

+110

TBH

TDH

TMH

1.0

0.2

UNITS

VOLT

AMP

WATT

°C

IDRM

0.1

1.6

0.1

1.6

0.1

1.6

0.1

1.6

MAX.

VOLT

MAX.

V/µSEC.

VTM

IHO

CRITICAL

dv/dt

COMMUTATING

dv/dt

V / µSEC.

IGT

MAX.

VOLT

MAX.

µSEC.

VGT

2.0

TGT

R0J-C

100

°C / WATT

TYP

°C / WATT

TYP

*Notes:

1. All values apply in either direction.

2. Quadrant II & IV gating may be deleted from any Hutson sensitive

gate triac, as many applications do not require this capability.

To order those devices suffix part number with “A”.

SOLID STATE CONTROL DEVICES

CURRENT WAVEFORM:

SINUSOIDIAL, 60Hz

RESISTIVE LOAD

I t(RMS) = 1 AMPS AT 50 Tc

GATE CONTROL MAY BE LOST DURING AND

AFTER SURGE.

GATE CONTROL WILL BE REGAINED AFTER Tj

RETURNS TO STEADY-STATE VALUE.

SOLID STATE CONTROL DEVICES
