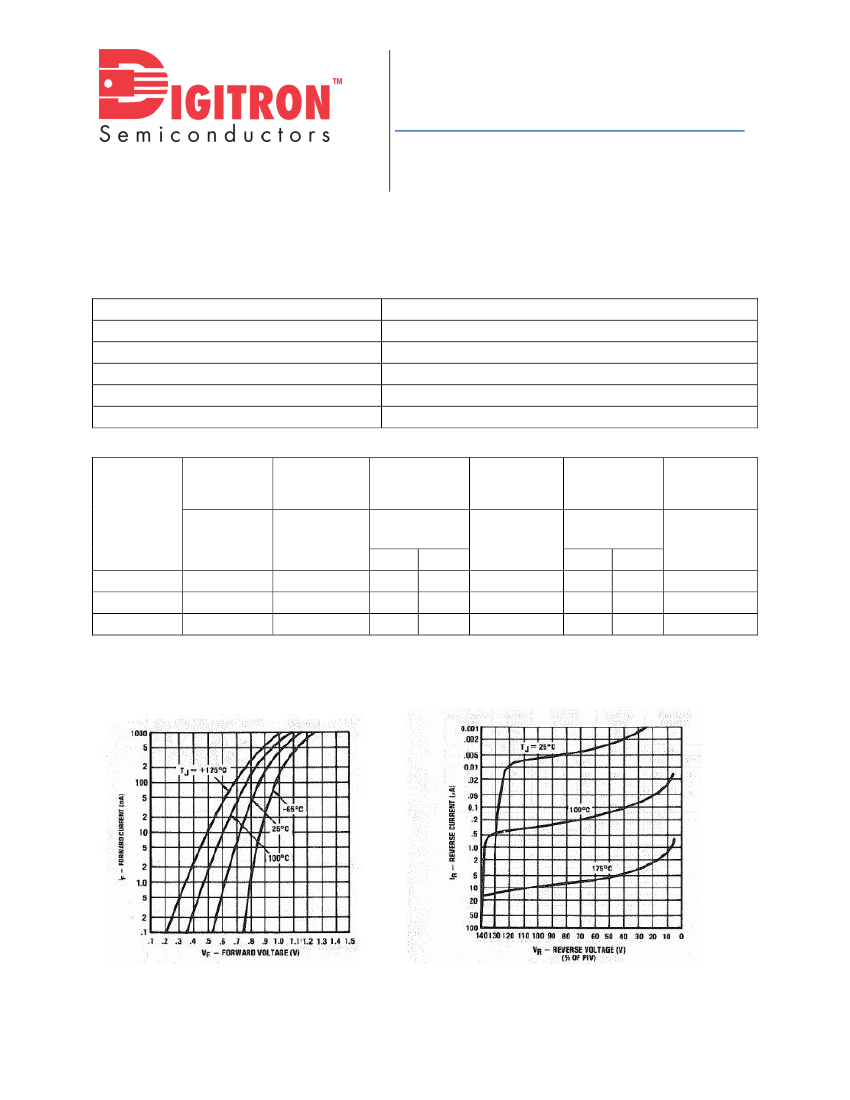

1N6661-1N6663
High-reliability discrete products
and engineering services since 1977
FEATURES
•
•
Available as “HR” (high reliability) screened per MIL-PRF-19500, JANTX level. Add “HR” suffix to base part number.
Available as non-RoHS
(Sn/Pb plating), standard, and as RoHS by adding “-PBF” suffix.
STANDARD RECOVERY RECTFIERS
MAXIMUM RATINGS
Characteristics
Junction and Storage Temperature Range
Thermal Resistance
Average Rectified Forward Current (I
O
)
Forward Surge Current
Solder Temperatures
-65° to +175°C
Ratings
160°C/W junction to lead at 3/8” lead
length from body
0.5 Amps @ T
A
= 25°C and 0.150 Amps at 150°C
5 Amps @ 8.3 half sine
260°C for 10 s (maximum)
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Working Peak
Minimum
Average
Reverse
Breakdown
Rectified
Voltage
Voltage
Current
(2)
Part
Number
V
RWM
Volts
225
400
600
V
BR
@ 100µA
Volts
270
480
720
I
O
Amps
25°C
0.5
0.5
0.5
150°C
0.15
0.15
0.15
Maximum
Forward
Voltage
V
F
@ 0.4 A
(pulsed)
Volts
1.0
1.0
1.0
Maximum
Reverse Current
I
R
@ V
RWM
µA
25°C
0.05
0.05
0.05
150°C
300
300
300
Maximum
Surge Current
(1)
I
FSM
Amps
5
5
5
1N6661
1N6662
1N6663
Note 1: T
A
= 25°C, 10 surges of 8.3ms @ 1 minute intervals
Note 2: Linearly derate at 2.8 mA/°C between T
A
= 25°C and 150°C and 6.0 mA/°C between T
A
= 150°C and 175°C.
Rev. 20190820
1N6661-1N6663
High-reliability discrete products
and engineering services since 1977

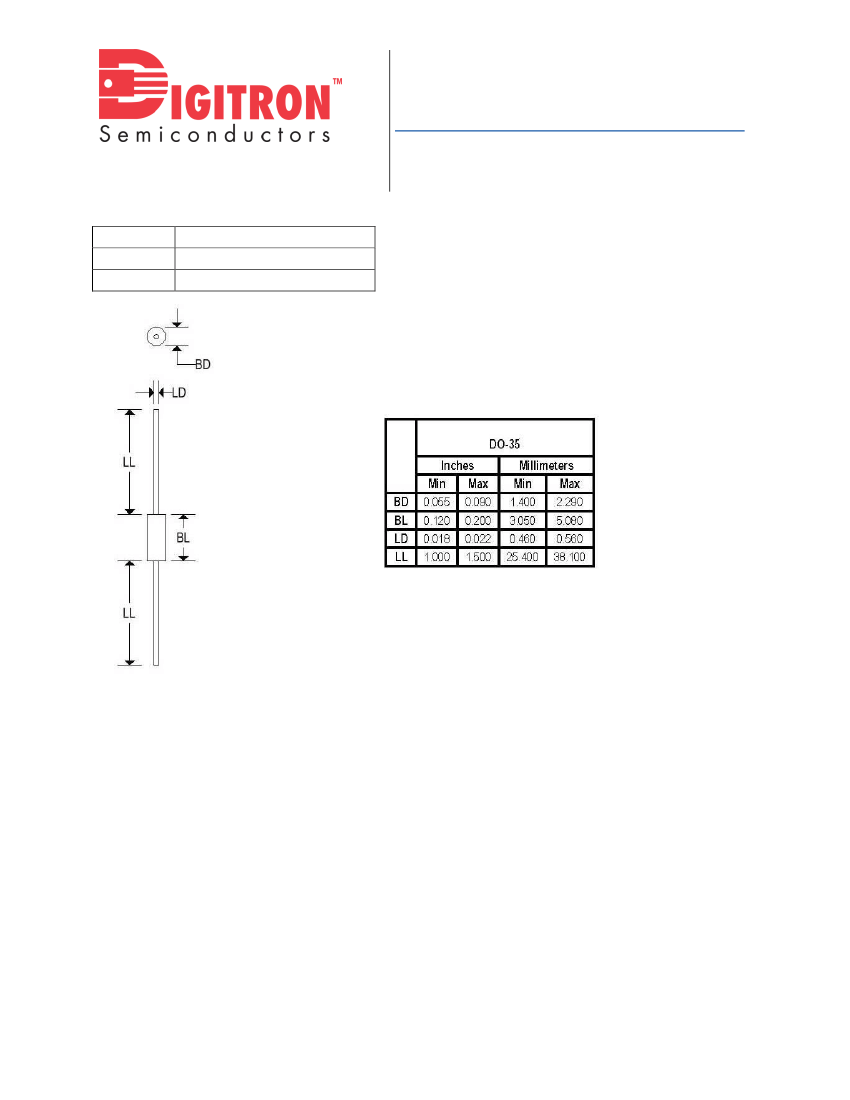

MECHANICAL CHARACTERISTICS
Case:
DO-35
Marking:
Polarity:
Body painted, alpha-numeric
Cathode band
STANDARD RECOVERY RECTFIERS
Rev. 20190820
