1/3
VAT1-SMT Series Dc-Dc Converter
Rev. 11-2005

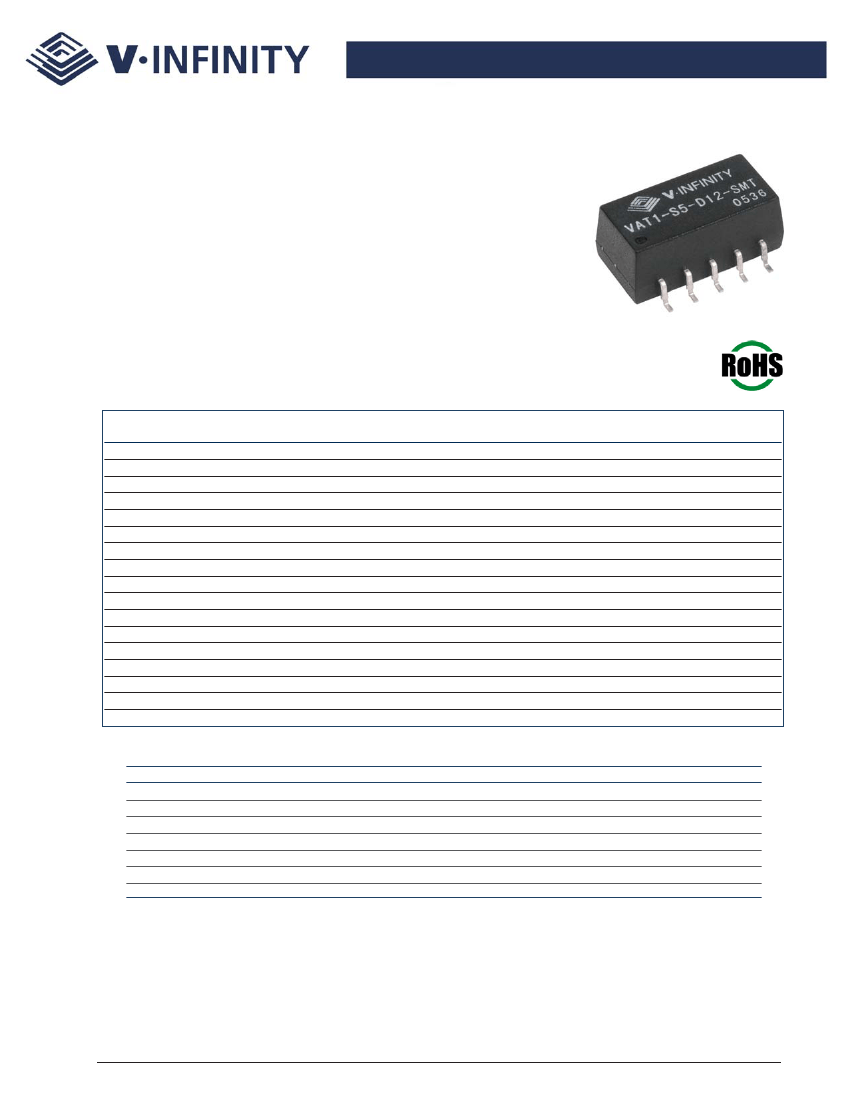

Description
Designed to convert fixed volt-
ages into an isolated voltage, the
VAT1-SMT series is well suited for
providing board-mount local sup-
plies in a wide range of applica-
tions, including mixed analog/digi-
tal circuits, test & measurement
equip., process/machine controls,
datacom/telecom fields, etc...
The semi-regulated output can be
followed by 3-terminal regulators
to provide output protection, in
addition to output regulation.
Features
·Isolated 1 W output
·Temperature range: -40°C~+85°C
available in -55°C~+125°C
·Unregulated
·High efficiency to 79%
·Dual voltage output
·Small footprint
·SMD package style
·Industry standard pinout
·UL94-V0 package
·No heatsink required
·1K Vdc isolation
·High Power Density
·No external component required
·Low cost
Model
Number
VAT1-S5-D5-SMT
VAT1-S5-D9-SMT
VAT1-S5-D12-SMT
VAT1-S5-D15-SMT
VAT1-S12-D5-SMT
VAT1-S12-D9-SMT
VAT1-S12-D12-SMT
VAT1-S12-D15-SMT
VAT1-S15-D5-SMT
VAT1-S15-D9-SMT
VAT1-S15-D12-SMT
VAT1-S15-D15-SMT
VAT1-S24-D5-SMT
VAT1-S24-D9-SMT
VAT1-S24-D12-SMT
VAT1-S24-D15-SMT
Input Voltage
Nominal
Range
5 Vdc
4.5~5.5 Vdc
5 Vdc
4.5~5.5 Vdc
5 Vdc
4.5~5.5 Vdc
5 Vdc
4.5~5.5 Vdc
12 Vdc
10.8~13.2 Vdc
12 Vdc
10.8~13.2 Vdc
12 Vdc
12 Vdc
15 Vdc
15 Vdc
15 Vdc
15 Vdc
24 Vdc
24 Vdc
24 Vdc
24 Vdc
10.8~13.2 Vdc
10.8~13.2 Vdc
14.25~15.75 Vdc
14.25~15.75 Vdc
14.25~15.75 Vdc
14.25~15.75 Vdc
21.6~26.4 Vdc
21.6~26.4 Vdc
21.6~26.4 Vdc
21.6~26.4 Vdc
Output
Voltage
±5 Vdc
±9 Vdc
±12 Vdc
±15 Vdc
±5 Vdc
±9 Vdc
±12 Vdc
±15 Vdc
±5 Vdc
±9 Vdc
±12 Vdc
±15 Vdc
±5 Vdc
±9 Vdc
±12 Vdc
±15 Vdc
Output Current
Max.
Min.
±100 mA
±10 mA
±56 mA
±6 mA
±42 mA
±5 mA
±33 mA
±4 mA
±100 mA
±10 mA
±56 mA
±6 mA
±42 mA
±33 mA
±100 mA
±56 mA
±42 mA
±33 mA
±100 mA
±56 mA
±42 mA
±33 mA
±5 mA
±4 mA
±10 mA
±6A
±5 mA
±4 mA
±10 mA
±6 mA
±5 mA
±4 mA
Efficiency
72%
75%
78%
78%
74%
76%
79%
79%
74%
75%
79%
79%
72%
76%
79%
79%
Package
Style
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
SMD
Output Specifications
Item
Output power
Line Regulation
Load Regulation
Output voltage accuracy
Temperature drift
Output ripple
Switching frequency
Notes:
1. All specifications measured at TA=25°C, humidity <75%, nominal input voltage and rated output load unless
otherwise specified.
2. For extended temperature version, add -M to the model #, e.g. VAT1-S5-D5-SMT-M.
Test conditions
For Vin change of 1%
10% to 100% full load
See tolerance envelope graph
@ 100% load
20 MHz Bandwidth
Full load, nominal input
100K
6%
Min.
0.1
Typ.
Max.
1
1.2%
12%
0.03
75
200K
%/°C
mVp-p
Hz
Units
W
50
150K
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
2/3
VAT1-SMT Series Dc-Dc Converter
Rev. 11-2005
General Specifications
Short circuit protection
Temperature rise at full load
Cooling
Operating temperature range
Storage temperature range
Soldering temperature
Storage humidity range
Case material
MTBF
Burn-in
for regular version
for extended temp. version
<1 second
25°C Max, 15°C Typ.
Free air convection
-40°C to +85°C
-55°C to +125°C
-55°C to +125°C
300°C (1.5mm from case for 10 sec.)
<95%
Plastic (UL94-V0)
>3,500,000 hrs.
Full load at +85°C, for 4 hours at no-load and 4 hours at full load.
Isolation Specifications
Item
Isolation Voltage
Insulation Resistance
Test Conditions
Tested for 1 min.
Test at 500 Vdc
Min.
1000
1000
Typ.
Max.
Units
Vdc
M
Ω

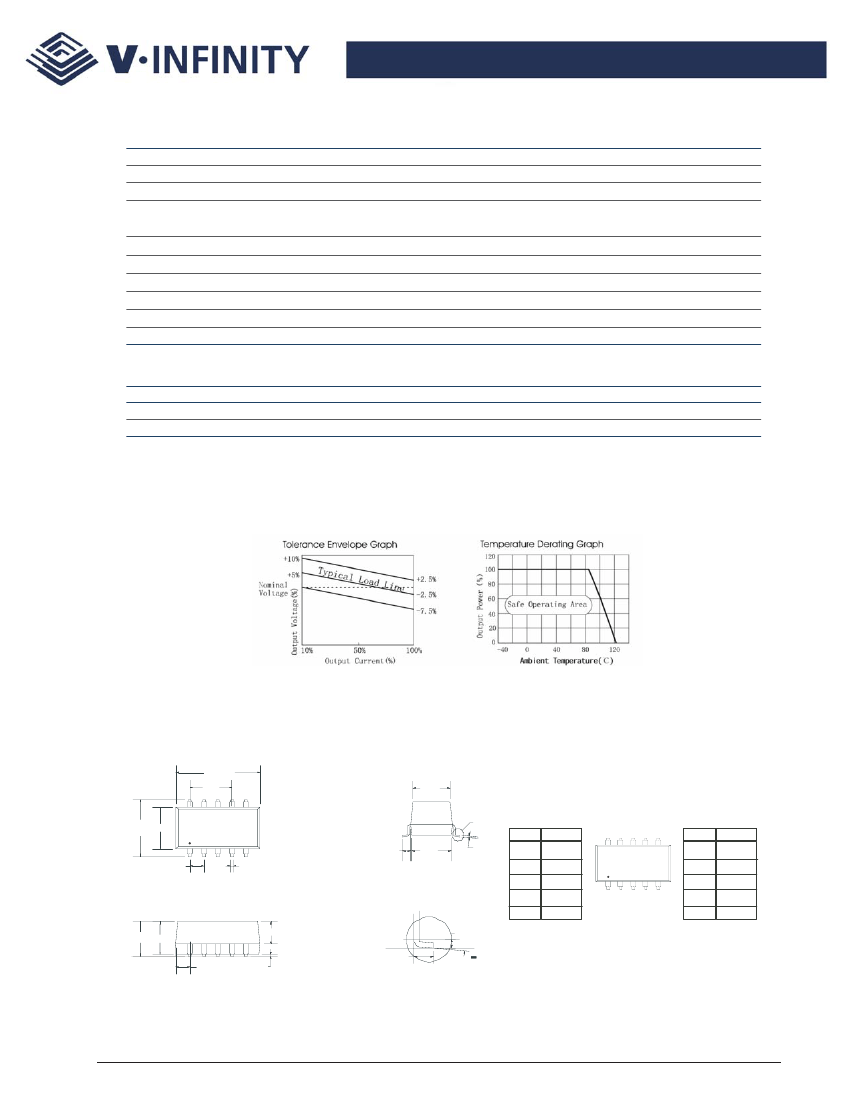

Typical Characteristics
Outline Dimensions &
Recommended Layout Pattern
15.24
7.62
6.70
VAT1-SMT
11.20 7.50
MAX
Top View
Front Vi ew
1.85 MAX
7.05
A
Pin
0.30
Function
GND
Vin
NC
COM
-Vo
10 9 8 7 6
VAT1-SMT
Pin
6
7
8
Function
NC
+Vo
NC
NC
NC
1
2
3
4
2.54
0.50
1 2 3 4 5
9
10
A
6.25 6.00
4.13
5
0.50
Side V iew
1.50
1.20
2.54
5.00
0.25
Note: All Pins on a 2.54mm pitch; all pin diameters are 0.50mm; all dimensions in mm.
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
3/3
VAT1-SMT Series Dc-Dc Converter
Rev. 11-2005

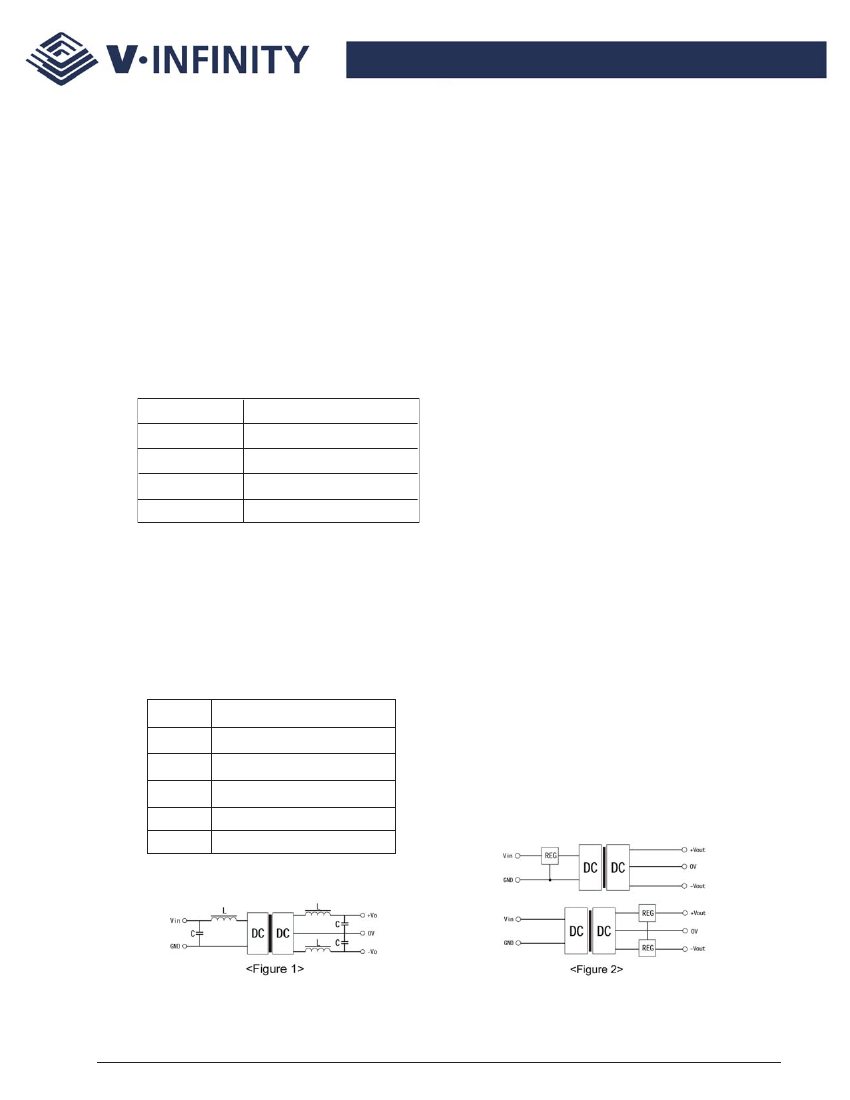

Application Notes:
- Input filtering
To reduce the reflected ripple current and minimize
EMI, especially when the converter input is more
than 2” away from the DC source, it is recommended
to connect a low ESR electrolytic capacitor between
Vin and Gnd. The values suggested are as shown in
Table 1. If additional filtering is required, the
capacitance may be increased, or expanded to an LC
network as shown in Figure 1.
- Minimum loading
The converter needs a minimum of 10% loading to
maintain output regulation. Operation under no-load
conditions will not cause immediate damages but
may reduce reliability, and cause performance not to
meet specifications.
- Regulation
With a semi-regulated design, the converter’s output
voltage varies with load current and will change
proportionally to the input voltage. If regulated
output is needed, an external regulator can be used
as shown in Figure 2.
Table 1
Input Voltage
5V
12 V
15 V
24 V
External Input Capacitance
4.7 µF
2.2 µF
2.2 µF
1.0 µF
- Protection
The converter has minimal protection against input
over-voltage or output over-load, and may be
permanently damaged if exposed to these conditions.
An input clamping device can be used for input
voltage limiting. An input fuse or an output fuse
can also be used to protect against over-loading.
- Output filtering
An output capacitor is needed to meet output ripple
requirements as shown in Table 2.
Output capacitance may be increased for additional
filtering, but should not exeed 10µF or expanded to
an LC network as in Figure 1.
- Dual outputs used as a single output
The +Vout and -Vout can be used to obtain a single
output that is the sum of the two outputs. In this
case, the COM pin shouldn’t be used.
- External Regulator
An external 3-terminal regulator can be connected
to the output of the converter to achieve full
regulation. Make sure the converter’s output voltage
provides sufficient head room for the regulator. An
additional benefit is that the built-in protection
features in the regulator, such as OCP, OTP, etc, will
protect the converter also. In a complimentory
supply, a negative output regulator must be used to
achieve the negative regulated output.
Table 2
Vout
5V
9V
12 V
15 V
24 V
External Ouput Capacitance
4.7 µF
2.2 µF
1.0 µF
0.47 µF
0.33 µF
V-Infinity, LLC, 9615 SW Allen Blvd Suite 103, Beaverton, OR 97005
www.v-infinity.com
1-866-372-1258
