D15PS60L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> D15PS60L

D15PS60L: DescriptionSurface Mount Schottky Barrier Rectifiers, Diodes, Single, 60V, 15A, 0.53V, 15A, 250A; CategoryDiscrete semiconductor; File Size540KB，4 Pages; ManufacturerGalaxy Microelectronics; Environmental Compliance

Download Datasheet Parametric View All

D15PS60L Overview

Surface Mount Schottky Barrier Rectifiers, Diodes, Single, 60V, 15A, 0.53V, 15A, 250A

D15PS60L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Galaxy Microelectronics
Parts packaging code	TO-277B
package instruction	R-PDSO-F3
Reach Compliance Code	unknown
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.53 V
JEDEC-95 code	TO-277B
JESD-30 code	R-PDSO-F3
Maximum non-repetitive peak forward current	250 A
Number of components	1
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	60 V
Maximum reverse current	500 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	FLAT
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
category
VRRM (V) max	60
IF (A) max	15
VF (V) max	0.53
Condition1_IF (A)	15
IFSM (A) max	250
IR (uA) max	500
Condition2_VR (V)	45
trr (ns) max	-
AEC Qualified	-
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	-
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	TO-277B

Preview

Download Datasheet

View All

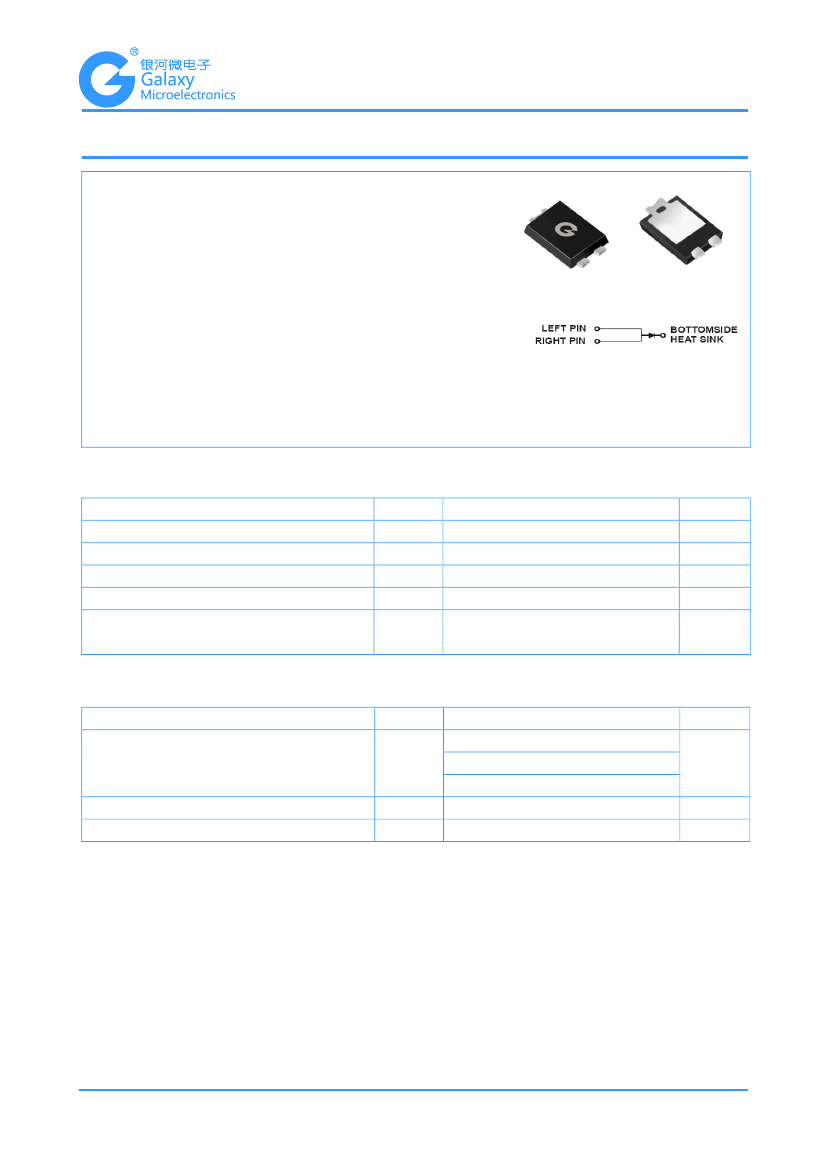

Production specification

Schottky Barrier Rectifiers

Features



Metal silicon junction, majority carrier conduction

High surge capability

High temperature soldering guaranteed:

260°C/10 seconds

High current capability, low forward voltage drop

RoHS Compliant

Case: TO-277B molded plastic

Molding compound, UL flammability classification rating 94V-0

Terminals: Solder plated, solderable per MIL- STD-202,Method 208

Top View

D15PS60L

Bottom View

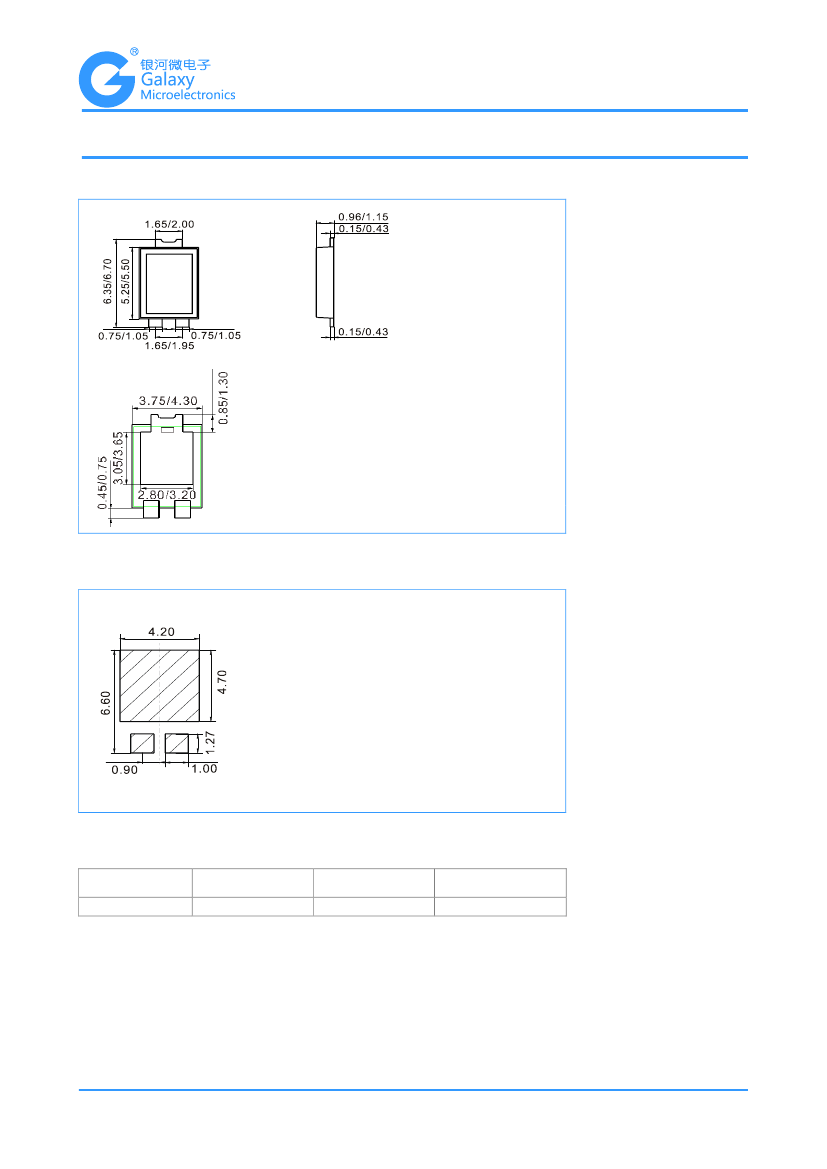

Mechanical Data

Maximum Ratings

(@T

= 25°C unless otherwise specified)

Characteristic

Peak repetitive reverse voltage

RMS reverse voltage

DC blocking voltage

Maximum average forward output current

Peak forward surge current,

8.3ms single half-sine-wave

Symbol

RRM

RMS

F(AV)

FSM

D15PS60L

250

Units

Thermal Characteristics

Parameter

Typical thermal resistance

(Note 1)

Operating junction temperature range

Storage temperature range

Symbol

ΘJA

ΘJC

ΘJL

STG

D15PS60L

- 55 ---- + 150

°C

°C /W

Units

Note:

1. Device mounted on PCB with 10 mm x 20 mm x 0.1mm copper pad areas

T2B410AA

Rev.B

www.gmesemi.com
