GBS6J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> GBS6J

GBS6J: DescriptionBridge Rectifiers, Diodes, Bridge, 600V, 6A, 1V, 6A, 170A; CategoryDiscrete semiconductor; File Size466KB，4 Pages; ManufacturerGalaxy Microelectronics; Environmental Compliance

Download Datasheet Parametric Compare View All

GBS6J Overview

Bridge Rectifiers, Diodes, Bridge, 600V, 6A, 1V, 6A, 170A

GBS6J Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Galaxy Microelectronics
Parts packaging code	GBS
Reach Compliance Code	unknown
Minimum breakdown voltage	600 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PSFM-T4
Maximum non-repetitive peak forward current	170 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	6 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum repetitive peak reverse voltage	600 V
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
category
VRRM (V) max	600
IF (A) max	6
VF (V) max	1
Condition1_IF (A)	6
IFSM (A) max	170
IR (uA) max	1
Condition2_VR (V)	600
trr (ns) max	-
AEC Qualified	-
Maximum operating temperature	150
Minimum operating temperature	-55
MSL level	-
Is it lead-free?	yes
Comply with Reach	yes
RoHS compliant	yes
ECCN code	EAR99
Package Outlines	GBS

Preview

Download Datasheet

View All

Production specification

SuperPlanar

Bridge Rectifiers

Features



Planar passivated chips

Ultra low leakage reverse current

High temperature performance

High surge current capability

Ideal for printed circuit boards

High temperature soldering guaranteed:260°C/10 seconds

RoHS Compliant

Case: GBS molded plastic

Molding compound, UL flammability classification rating 94V-0

Terminals: Leads solderable per MIL-STD-750,

Mounting position: Any

GBS6J--GBS6K

Mechanical Data

Maximum Ratings

(@T

= 25°C unless otherwise specified)

Characteristic

Peak repetitive reverse voltage

RMS reverse voltage

DC blocking voltage

Maximum average forward output current

Peak forward surge current,

8.3ms single half-sine-wave

Symbol

RRM

RMS

F(AV)

FSM

GBS6J

600

420

600

6.0

170

120

GBS6K

800

560

800

Units

= 25°C

Rating for fusing

Thermal Characteristics

Parameter

Typical thermal resistance per leg

(Note 1,Note2)

Operating junction temperature range

Storage temperature range

Symbol

ΘJA

ΘJC

GBS6J

5.3

- 55 ---- + 150

GBS6K

Units

°C /W

°C

(2)

(1)

STG

Note:

(1) Unit case mounted on 65mm x 50mm x2.4mm aluminum plate heatsink

(2) Units mounted on PCB without heatsink

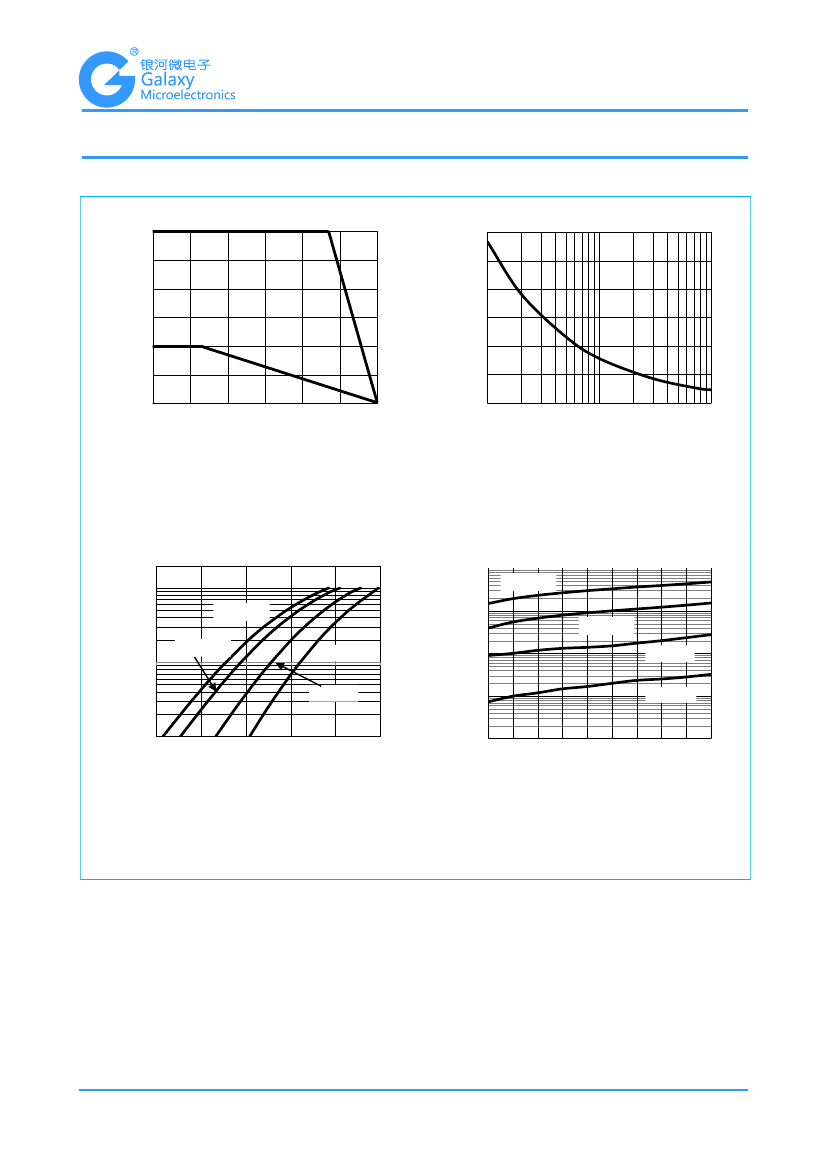

GBS805AA

Rev.B

www.gmesemi.com
