Production specification
SuperPlanar
TM
Bridge Rectifiers
Features
Planar passivated chips
Ultra low leakage reverse current
High temperature performance
High surge current capability
Ideal for printed circuit boards
High temperature soldering guaranteed:260°C/10 seconds
RoHS Compliant
Case: GBU molded plastic
Molding compound, UL flammability classification rating 94V-0
Terminals: Leads solderable per MIL-STD-750,
Mounting position: Any
GBU15J--GBU15K
Mechanical Data
Maximum Ratings
(@T
A
= 25°C unless otherwise specified)
Characteristic
Peak repetitive reverse voltage
RMS reverse voltage
DC blocking voltage
Maximum average forward output current
Peak forward surge current,
8.3ms single half-sine-wave
It
2
Symbol
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
It
2
GBU15J
600
420
600
15
240
239
GBU15K
800
560
800
Units
V
V
V
A
A
As
2
@T
J
= 25°C
@T
J
= 25°C
Rating for fusing
Thermal Characteristics
Parameter
Typical thermal resistance
(Note 1,Note2)
Operating junction temperature range
Storage temperature range
Symbol
R
R
(1)
T
J
T
STG
ΘJA
GBU15J
29
4.2
GBU15K
Units
(2)
ΘJC
°C /W
- 55 ---- + 150
- 55 ---- + 150
°C
°C
Note:
(1) Unit case mounted on 65mm x 50mm x2.4mm aluminum plate heatsink
(2) Units mounted on PCB without heatsink
GBU804AA
Rev.B
www.gmesemi.com
Production specification
SuperPlanar
TM
Bridge Rectifiers

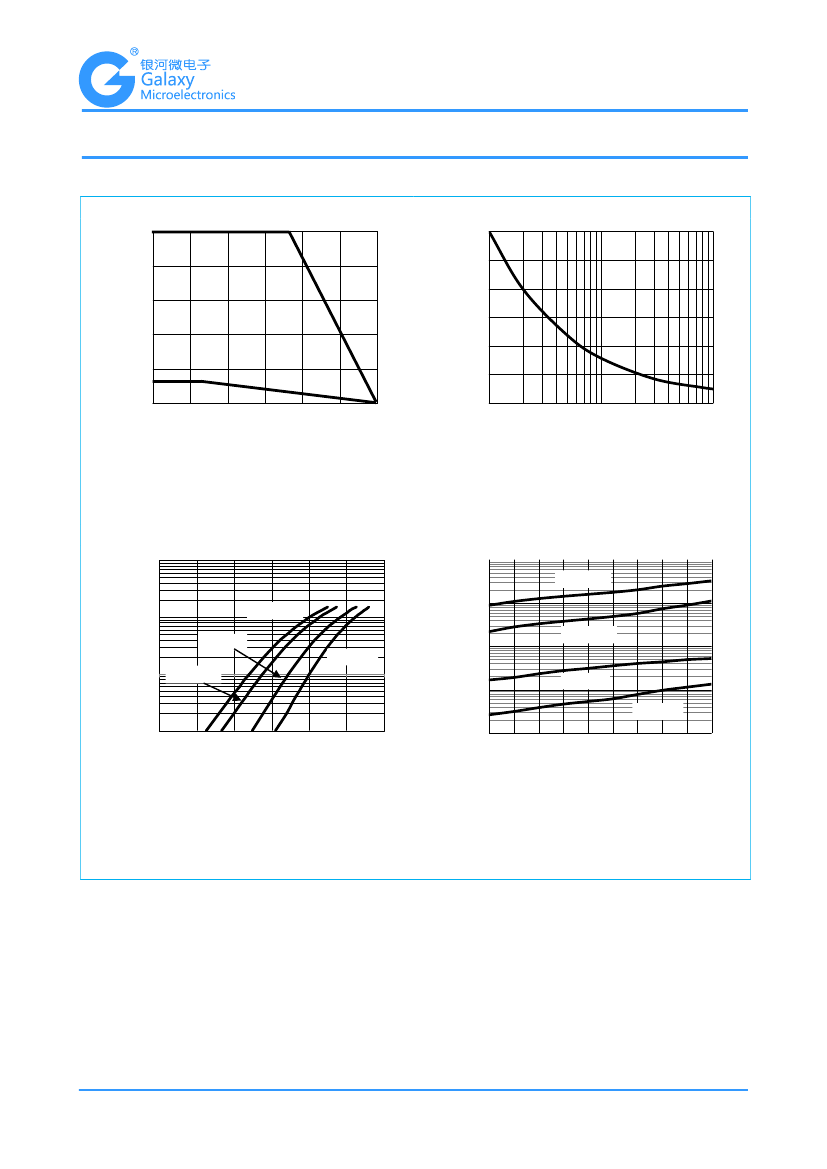

Fig.1-Forward Current Derating Curve
WITH HEATSINK TC
Average Current (A)
12
9
6
3
0
0
25
50
75
100
Temperature (°C)
125
150
WITHOUT HEATSINK TA
I
FSM
,Peak Forward Surge Current (A)
15
GBU15J--GBU15K
Ratings and Characteristic Curves
(T
A
=25°C unless otherwise noted)
Fig.2- Surge Current Derating Curve
240
200
160
120
80
40
0
1
10
Number of Cycles at 60H
Z
100
Fig.3- Typical Forward Voltage Characteristic
100
Forward Current I
F
(A)
Reverse Current ,I
R
(μ A)
Fig.4- Typical Reverse Characteristic
Tj=150
℃
10
10
Tj=150
℃
Tj=75℃
Tj=125℃
1
Tj=25℃
1
Tj=125℃
0.1
Tj=75℃
Tj=25℃
0.1
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0.01
10
20
30
40
50
60
70
80
90 100
Forward Voltage ,V
F
(V)
Reverse Voltage ,V
R
(%)
GBU804AA
Rev.B
www.gmesemi.com
