X28C010PI-12 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> X28C010PI-12

X28C010PI-12: DescriptionEEPROM, 128KX8, 120ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32; Categorystorage storage; File Size823KB，15 Pages; ManufacturerXicor Inc.

Download Datasheet Parametric Compare View All

X28C010PI-12 Overview

EEPROM, 128KX8, 120ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32

X28C010PI-12 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Xicor Inc.
package instruction	PLASTIC, DIP-32
Reach Compliance Code	unknown
Maximum access time	120 ns
Other features	PAGE WRITE
command user interface	NO
Data polling	YES
JESD-30 code	R-PDIP-T32
JESD-609 code	e0
length	42.025 mm
memory density	1048576 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
organize	128KX8
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE
page size	256 words
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programming voltage	5 V
Certification status	Not Qualified
Maximum seat height	4.82 mm
Maximum standby current	0.0005 A
Maximum slew rate	0.05 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
switch bit	YES
width	15.24 mm

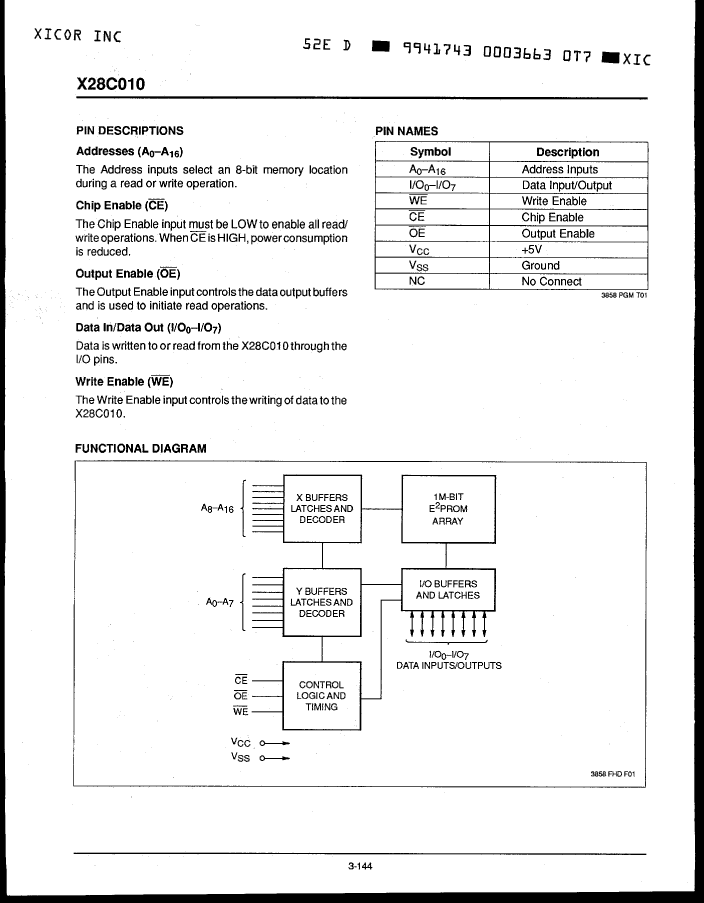

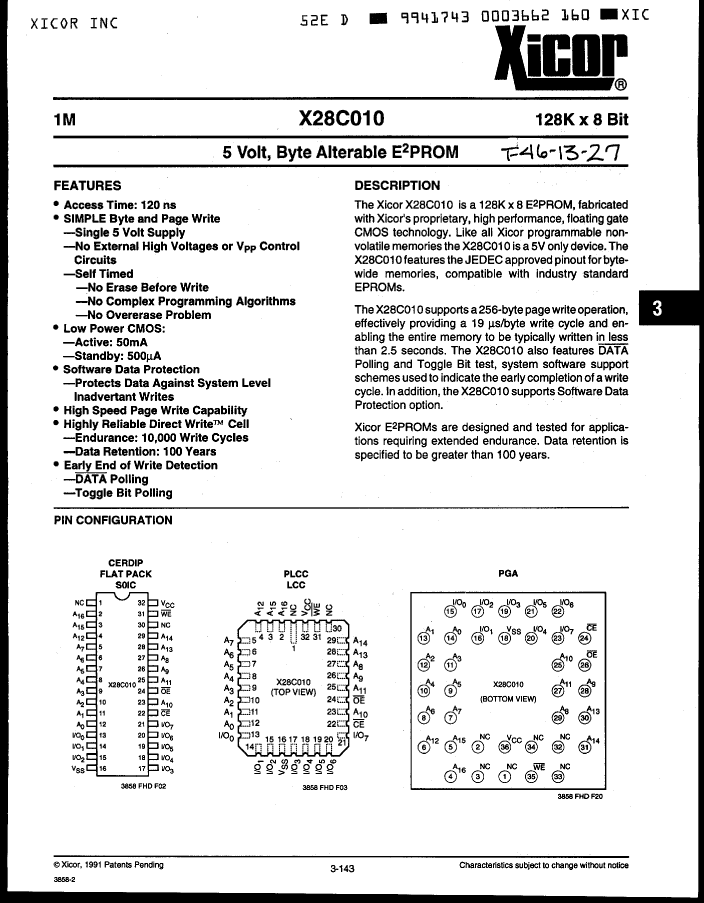

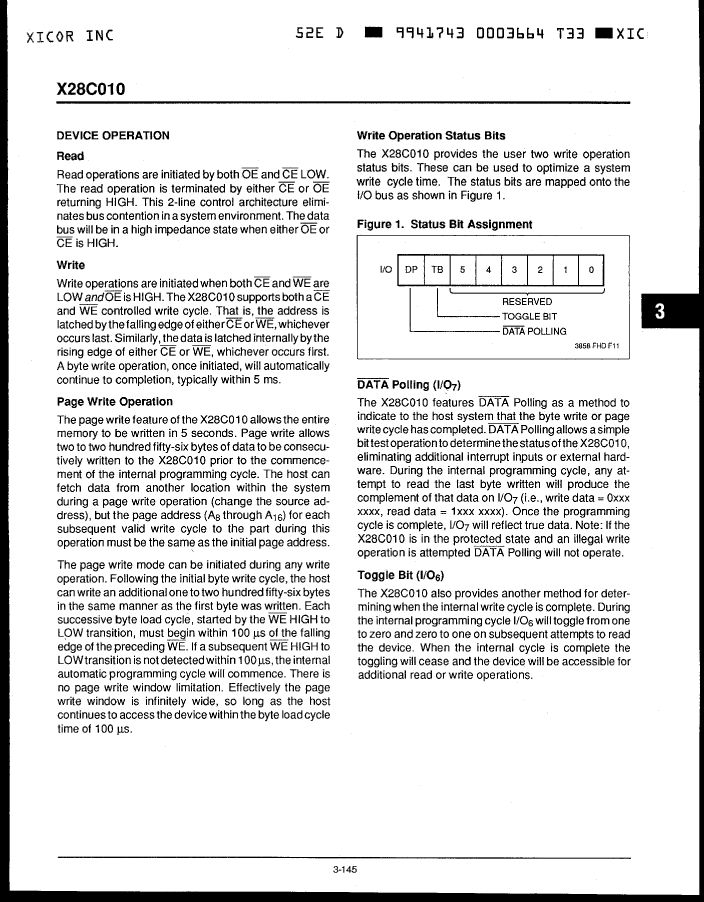

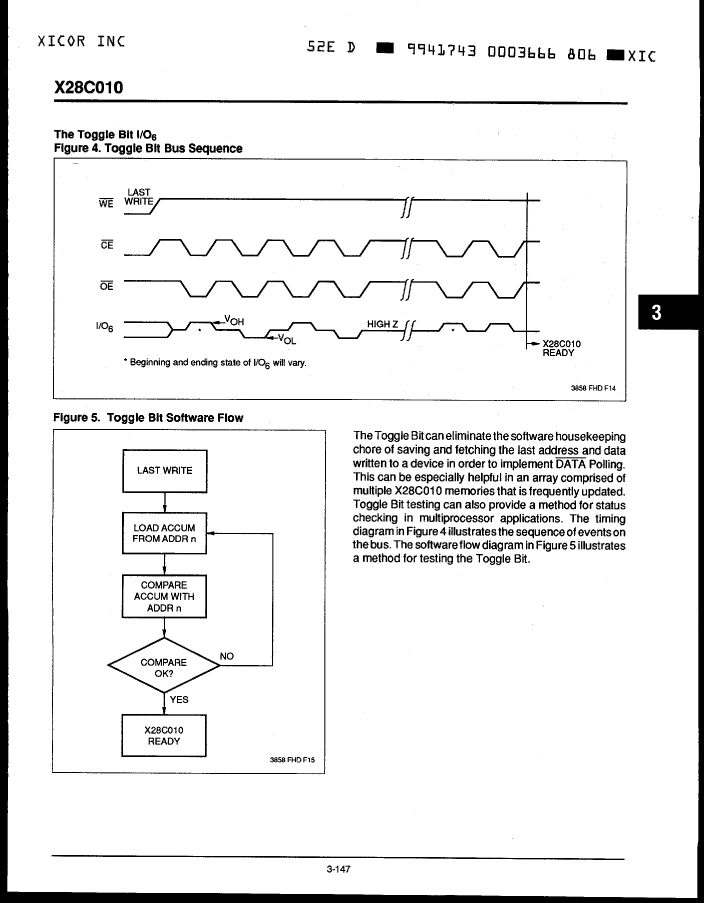

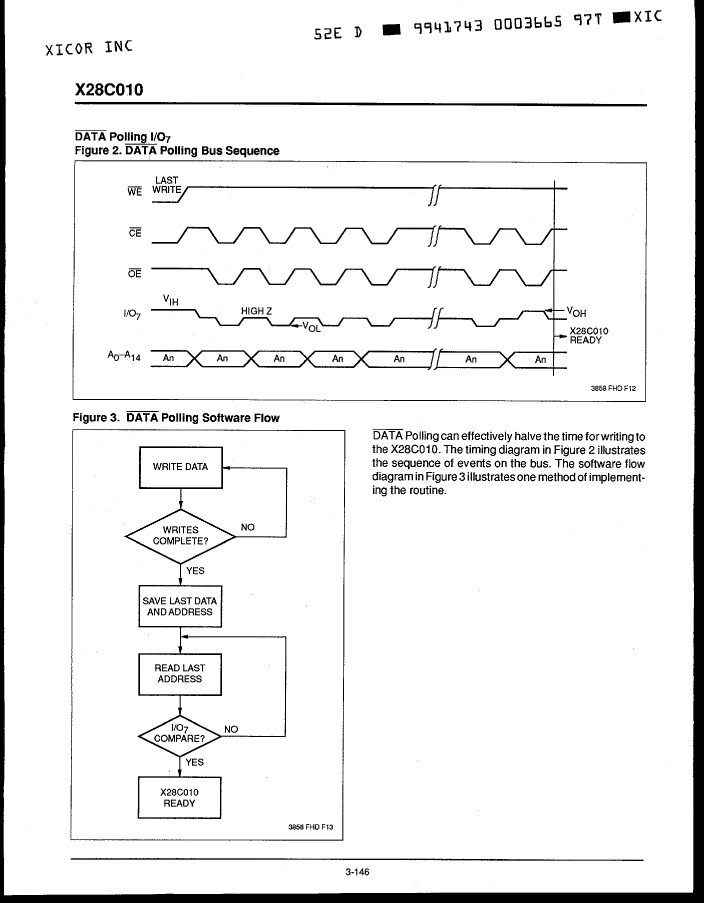

X28C010PI-12 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

X28C010PI-12 Related Products

	X28C010PI-12	X28C010PI-15	X28C010P-15	X28C010P-20	X28C010PI-20	X28C010PI-25	X28C010P-25	X28C010P-12
Description	EEPROM, 128KX8, 120ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 150ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 150ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 200ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 200ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 250ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 250ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32	EEPROM, 128KX8, 120ns, Parallel, CMOS, PDIP32, PLASTIC, DIP-32
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.	Xicor Inc.
package instruction	PLASTIC, DIP-32	PLASTIC, DIP-32	PLASTIC, DIP-32	PLASTIC, DIP-32	PLASTIC, DIP-32	PLASTIC, DIP-32	PLASTIC, DIP-32	PLASTIC, DIP-32
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum access time	120 ns	150 ns	150 ns	200 ns	200 ns	250 ns	250 ns	120 ns
Other features	PAGE WRITE	PAGE WRITE	PAGE WRITE	PAGE WRITE	PAGE WRITE	PAGE WRITE	PAGE WRITE	PAGE WRITE
command user interface	NO	NO	NO	NO	NO	NO	NO	NO
Data polling	YES	YES	YES	YES	YES	YES	YES	YES
JESD-30 code	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32	R-PDIP-T32
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	42.025 mm	42.025 mm	42.025 mm	42.025 mm	42.025 mm	42.025 mm	42.025 mm	42.025 mm
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bit
Memory IC Type	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM	EEPROM
memory width	8	8	8	8	8	8	8	8
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	85 °C	85 °C	70 °C	70 °C	85 °C	85 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8	128KX8
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
page size	256 words	256 words	256 words	256 words	256 words	256 words	256 words	256 words
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Programming voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.82 mm	4.82 mm	4.82 mm	4.82 mm	4.82 mm	4.82 mm	4.82 mm	4.82 mm
Maximum standby current	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A	0.0005 A
Maximum slew rate	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA	0.05 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
switch bit	YES	YES	YES	YES	YES	YES	YES	YES
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
