AD800-1600-2400TR295 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> AD800-1600-2400TR295

AD800-1600-2400TR295: DescriptionDuplexer,; CategoryAnalog mixed-signal IC filter; File Size76KB，1 Pages; ManufacturerAnatech Electronics Inc.

Download Datasheet Parametric View All

AD800-1600-2400TR295 Overview

Duplexer,

AD800-1600-2400TR295 Parametric

Parameter Name	Attribute value
Maker	Anatech Electronics Inc.
Reach Compliance Code	unknown
filter type	DUPLEXER

Preview

Download Datasheet

View All

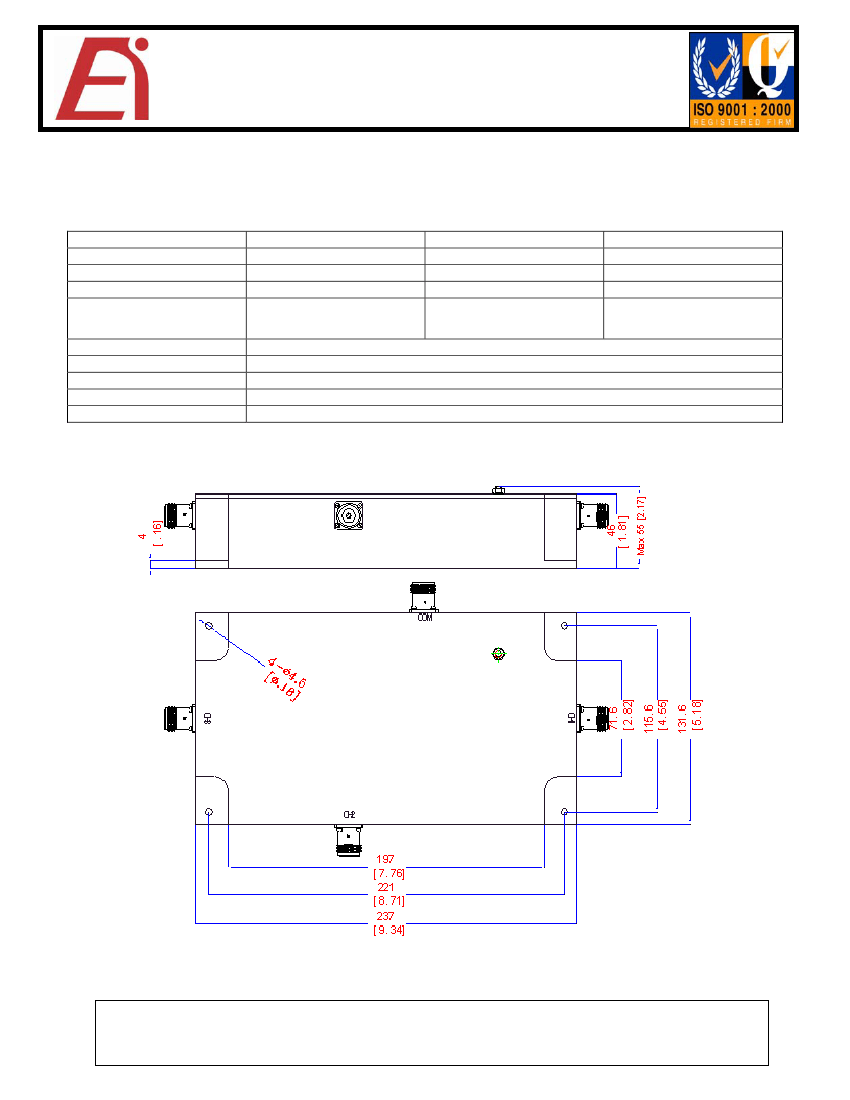

ANATECH ELECTRONICS, INC.

Manufacturer of RF & Microwave Products

800 MHz / 1600 MHz / 2400 MHz Triplexer

Part Number: AD800-1600-2400TR295

Frequency Range:

Insertion Loss:

Return Loss:

Rejection:

Power handling:

Surface Finish:

Port Connectors:

Port Sign:

Size Tolerance:

COM—CH1

800±17MHz

≤0.35dB@800MHz

≥18dB

≥100dB@1600MHz

≥100dB@2400MHz

COM—CH2

1600±22MHz

≤0.35dB@1600MHz

≥18dB

≥100dB@800MHz

COM—CH3

2400±30MHz

≤0.35dB@2400MHz

≥18dB

≥100dB@800MHz

≥100dB@2400MHz

≥100dB@1600MHz

300W(Max)

Black

N-Female (50Ω)

Port 1: COM ; Port 2:CH1 ; Port 3: CH2 ;Port 4: CH3

As Below(±0.3mm)

Outline Drawing:

ANATECH ELECTRONICS, INC., 70 Outwater Lane, Garfield, NJ 07026 Tel: (973) 772-4242 Fax: (973) 772-4646

E-Mail: sales@anatechelectronics.com

Website: www.anatechelectronics.com
