460-003
EMI/RFI Non-Environmental G-Spring Backshell
with Strain Relief
Rotatable Coupling - Standard Profile
460 G S 003 M 17 10 F 6
460
CONNECTOR
DESIGNATOR
Product Series
Connector Designator
Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
Strain Relief Style (F, G)
G
ROTATABLE
COUPLING
Angle and Profile
H = 45
J = 90
S = Straight
Basic Part No.
Cable Entry (Table IV)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length 2.0
Inch
(See Note 5)
A Thread
(Table I)
Length
± .060 (1.52)
Min. Order Length 1.5 Inch
(See Note 5)
.690 (17.5)
Max
C Typ.
(Table I)

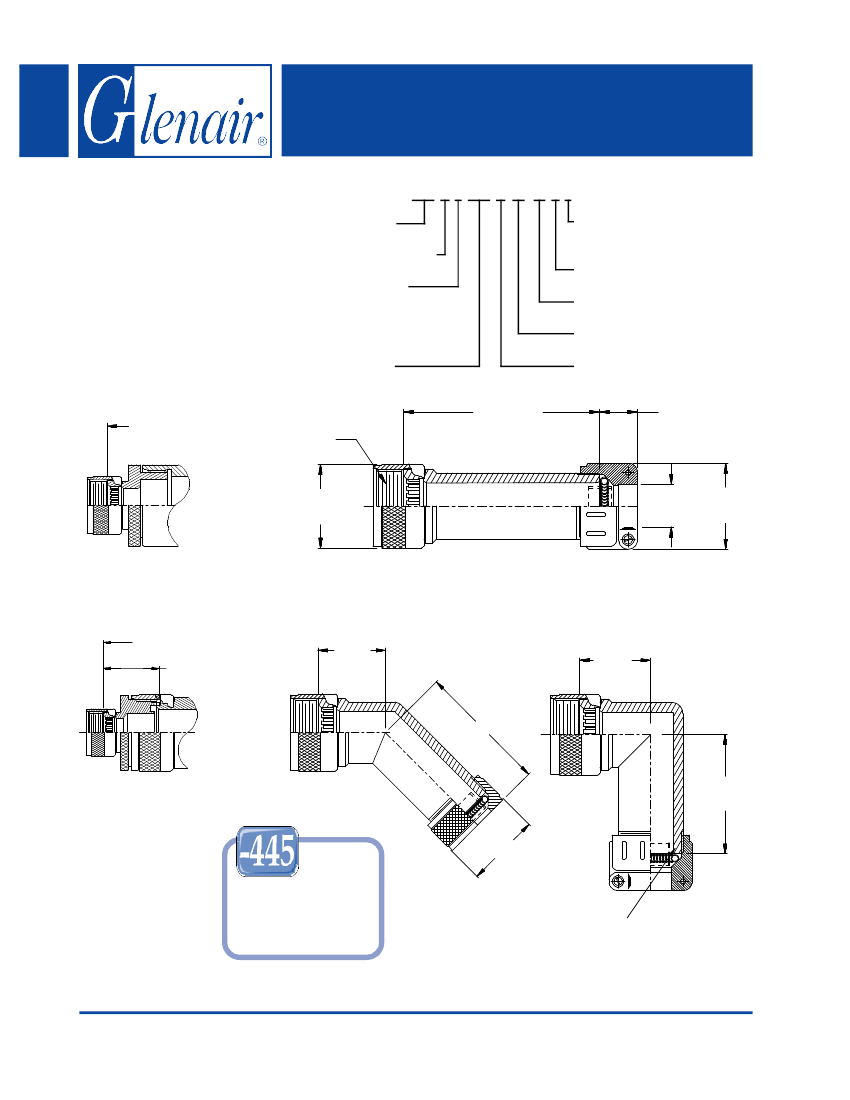

STYLE 2
(STRAIGHT
See Note 1)
Cable
M
Range (Table IV)
Length ± .060 (1.52)
1.25 (31.8)
Max
E
(Table III)
G
(Table III)
F (Table III)
STYLE 2
(45° & 90°
See Note 1)
Now Available
with the NESTOR
H (Table III)
N (Table IV)
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.
469-001-XX Shield Support Ring
(order separately) is recommended
for use in all G-Spring backshells
(see page 463-8)
CAGE Code 06324
Printed in U.S.A.
© 2005 Glenair, Inc.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 460 - Page 8
with Strain Relief
Rotatable Coupling - Standard Profile
See inside back cover
fold-out or pages 13 and
14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
F
G
E
Max
Max
Max
.980 (24.9)
1.380 (35.1)
1.240 (31.5)
1.000 (25.4)
1.440 (36.6)
1.260 (32.0)
1.030 (26.2)
1.500 (38.1)
1.290 (32.8)
1.050 (26.7)
1.570 (39.9)
1.310 (33.3)
1.080 (27.4)
1.630 (41.4)
1.340 (34.0)
1.120 (28.4)
1.730 (43.9)
1.380 (35.1)
1.150 (29.2)
1.800 (45.7)
1.410 (35.8)
1.320 (33.5)
2.040 (51.8)
1.580 (40.1)
1.360 (34.5)
2.130 (54.1)
1.620 (41.1)
Shell
Size
11
13
15
17
19
23
25
29
33
H
Max
1.120 (28.4)
1.180 (30.0)
1.250 (31.8)
1.310 (33.3)
1.390 (35.3)
1.470 (37.3)
1.540 (39.1)
1.780 (45.2)
1.870 (47.5)
TABLE IV: CABLE ENTRY
Cable
N
M
Dash
Min
Max
Max
No.
.625 (15.9) .156 (4.0)
.843 (21.4)
01
.750 (19.1) .188 (4.8)
.968 (24.6)
02
.875 (22.2) .250 (6.4)
03 1.046 (26.6)
04 1.156 (29.4) 1.000 (25.4) .280 (7.1)
05 1.218 (30.9) 1.125 (28.6) .375 (9.5)
06 1.343 (34.1) 1.250 (31.8) .500 (12.7)
07 1.468 (37.3) 1.375 (34.9) .625 (15.9)
08 1.593 (40.5) 1.500 (38.1) .750 (19.1)
09 1.718 (43.6) 1.625 (41.3) .875 (22.2)
10 1.843 (46.8) 1.750 (44.5) 1.000 (25.4)
11* 2.187 (55.5) 1.875 (47.6) 1.125 (28.6)
12* 2.312 (58.7) 2.000 (50.8) 1.250 (31.8)
13* 2.437 (61.9) 2.125 (54.0) 1.375 (34.9)
14* 2.546 (64.7) 2.250 (57.2) 1.500 (38.1)
* Consult factory for availability
Range
Max
.250 (6.4)
.375 (9.5)
.438 (11.1)
.500 (12.7)
.625 (15.9)
.750 (19.1)
.875 (22.2)
1.000 (25.4)
1.125 (28.6)
1.250 (31.8)
1.375 (34.9)
1.500 (38.1)
1.625 (41.3)
1.750 (44.5)
1. Shield Support Ring (469-001-XX) is recommended for use in all G-Spring back-
shells (see page 463-8).
2. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
3. Metric dimensions (mm) are indicated in parentheses.
4. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
5. Consult factory for shorter lengths on straight backshells.
