50350080295E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 50350080295E

50350080295E: DescriptionBarrier Strip Terminal Block,; CategoryThe connector; File Size733KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

50350080295E Overview

Barrier Strip Terminal Block,

50350080295E Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

Lift |

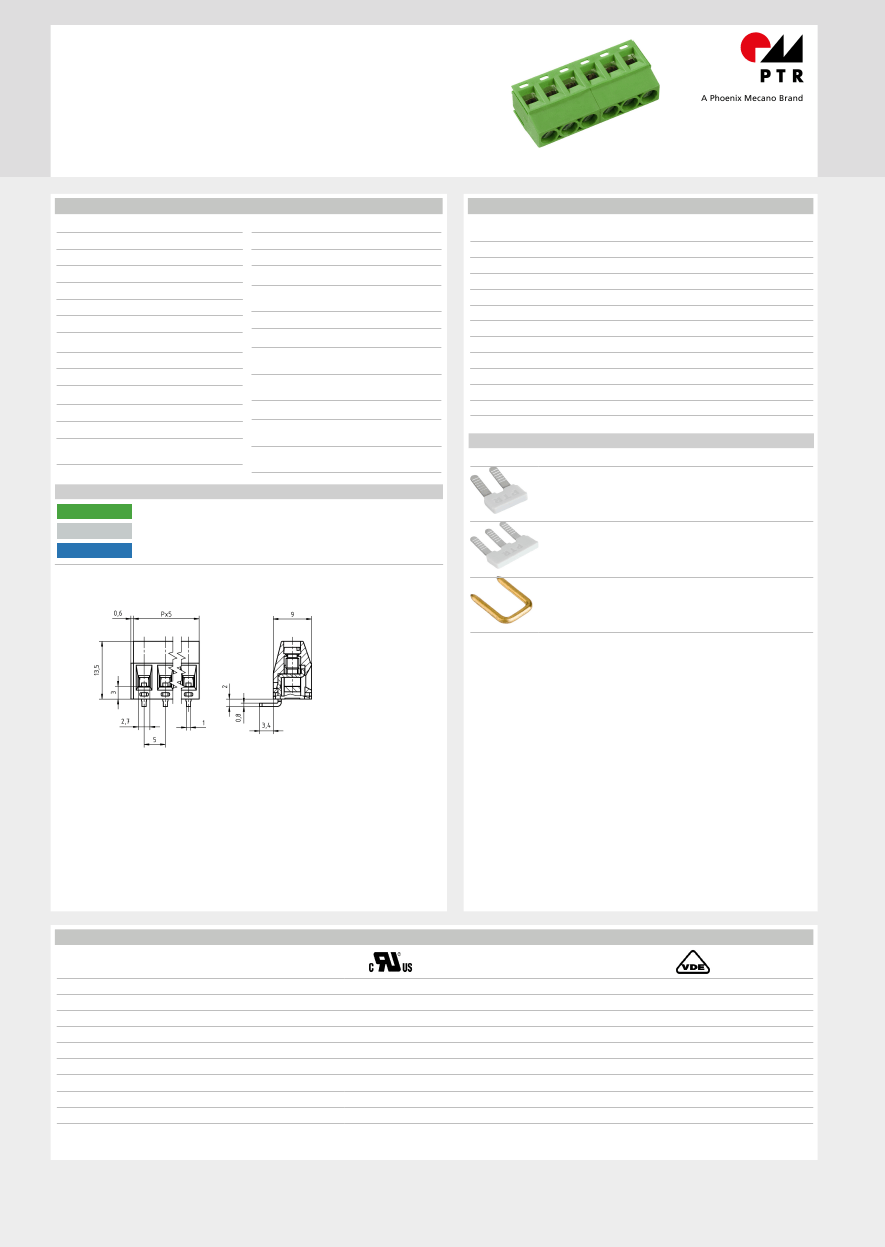

Spacing 5.0 mm

AK350/..-5.0-H-GREEN-HC

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.14 mm²

2.5 mm²

0.14mm²

1.5 mm²

0.25 mm²

1.5 mm²

Order Data (Spacing 5.0 mm)

Insulating Material

Material

Flammability Class

PA 6.6

10.60

15.60

20.60

25.60

30.60

35.60

40.60

45.60

50.60

55.60

60.60

AK350/2-5.0-H-GREEN-HC

AK350/3-5.0-H-GREEN-HC

AK350/4-5.0-H-GREEN-HC

AK350/5-5.0-H-GREEN-HC

AK350/6-5.0-H-GREEN-HC

AK350/7-5.0-H-GREEN-HC

AK350/8-5.0-H-GREEN-HC

AK350/9-5.0-H-GREEN-HC

AK350/10-5.0-H-GREEN-HC

AK350/11-5.0-H-GREEN-HC

AK350/12-5.0-H-GREEN-HC

Poles

Width (mm)

Article Designation

Article

Number

50350020295 F

50350030295 F

50350040295 F

50350050295 F

50350060295 E

50350070295 E

50350080295 E

50350090295 E

50350100295 D

50350110295 D

50350120295 D

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

PCB Hole Diameter

6.0 mm

1.3 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Clamp

Screw

Solder Tab

Brass

Steel

Copper

Alloy

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Accessoires

Figure

Designation

Bridge, 2-pole, insulated,

BRI/2-5.0/5.08-LIGHT GREY

Article Number

Order Data: 50000000006

Colours

GREEN, RAL 6018

LIGHT GREY, RAL 7035

BLUE, RAL 5015

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Bridge, 3-pole, insulated,

BRI/3-5.0/5.08-LIGHT GREY

Order Data: 50000000007

Bridge, 2-pole,

BR/2-5.0/5.08-L7.0

Order Data: 50000000008

Ratings

UseGroup

Rated Voltage

Rated Current

Rated Wire Size

- solid

- stranded

Torque

Screw Size

Test Voltage

300 V

19 A

150 V

19 A

300 V

10 A

min

250 V

24 A

max

2.5 mm²

1.5 mm²

0.50 Nm

2.0 kV

AWG 22-12

0.50 Nm

1.60 kV

AWG 22-12

0.50 Nm

1.30 kV

AWG 22-12

0.50 Nm

1.60 kV

0.5 mm²

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

50350080295E Related Products
