50975115001D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 50975115001D

50975115001D: DescriptionStrip Terminal Block,; CategoryThe connector; File Size622KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric View All

50975115001D Overview

Strip Terminal Block,

50975115001D Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

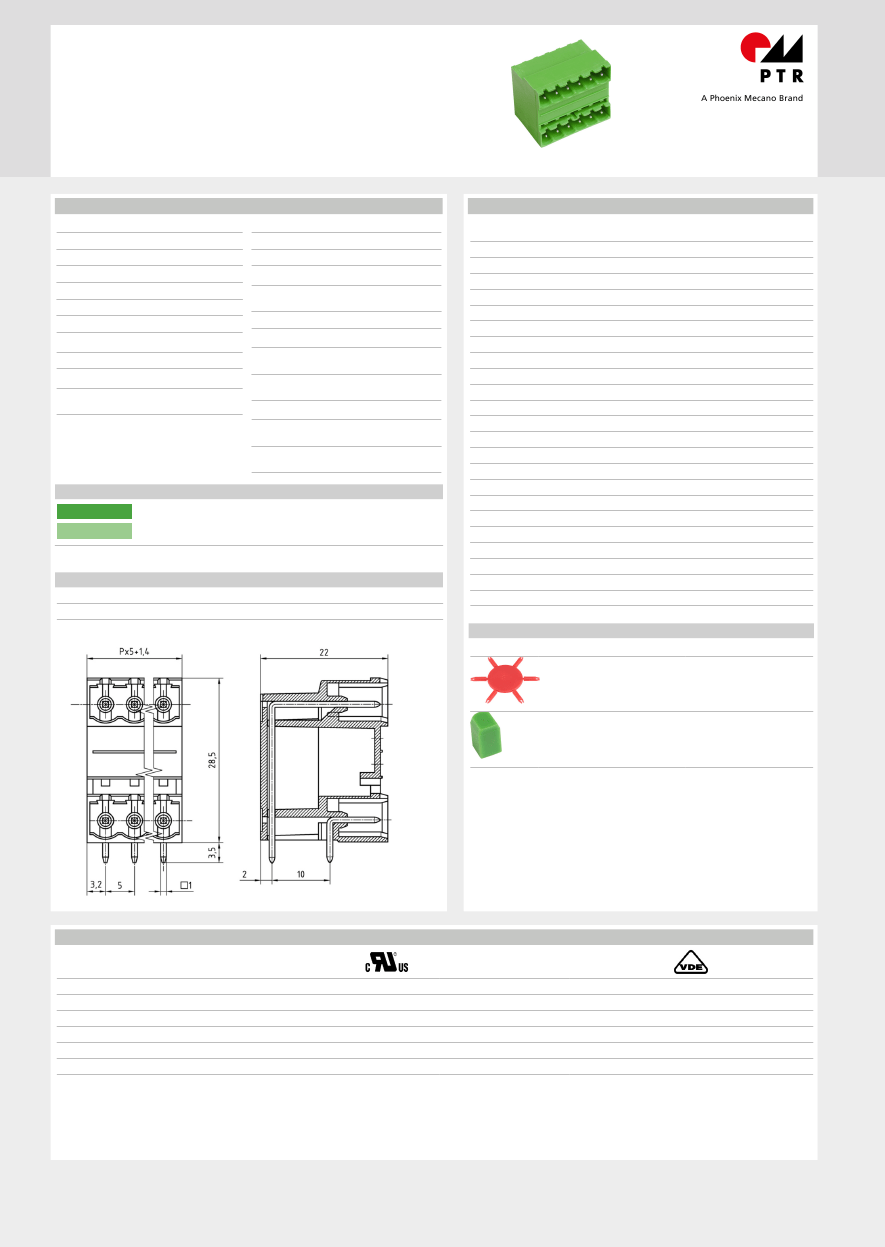

Pin Strip |

Spacing 5.0 mm

STL975/..G-5.0-H-GREEN

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

Order Data (Spacing 5.0 mm)

Insulating Material

Material

Flammability Class

PA 6.6

11.40

16.40

21.40

26.40

31.40

36.40

41.40

46.40

51.40

56.40

61.40

66.40

71.40

76.40

81.40

86.40

91.40

96.40

101.40

106.40

111.40

116.40

121.40

STL975/2G-5.0-H-GREEN

STL975/3G-5.0-H-GREEN

STL975/4G-5.0-H-GREEN

STL975/5G-5.0-H-GREEN

STL975/6G-5.0-H-GREEN

STL975/7G-5.0-H-GREEN

STL975/8G-5.0-H-GREEN

STL975/9G-5.0-H-GREEN

STL975/10G-5.0-H-GREEN

STL975/11G-5.0-H-GREEN

STL975/12G-5.0-H-GREEN

STL975/13G-5.0-H-GREEN

STL975/14G-5.0-H-GREEN

STL975/15G-5.0-H-GREEN

STL975/16G-5.0-H-GREEN

STL975/17G-5.0-H-GREEN

STL975/18G-5.0-H-GREEN

STL975/19G-5.0-H-GREEN

STL975/20G-5.0-H-GREEN

STL975/21G-5.0-H-GREEN

STL975/22G-5.0-H-GREEN

STL975/23G-5.0-H-GREEN

STL975/24G-5.0-H-GREEN

Poles

Width (mm)

Article Designation

Article

Number

50975025001 D

50975035001 D

50975045001 D

50975055001 D

50975065001 D

50975075001 D

50975085001 D

50975095001 D

50975105001 D

50975115001 D

50975125001 D

50975135001 D

50975145001 D

50975155001 D

50975165001 D

50975175001 D

50975185001 D

50975195001 D

50975205001 D

50975215001 D

50975225001 D

50975235001 D

50975245001 D

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

PCB Hole Diameter

1.4 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Contact Pin

Copper

Alloy

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

GREEN, RAL 6018

LIGHT GREEN, similar RAL 6018

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Counterparts (Spacing 5.0 mm)

Terminal Block

AK950

AK955

AK1100

AK1110

In combination of connectors with different admission data, the lower value is valid.

Accessoires

Figure

Designation

Coding Star CS2-5.0/5.08-RED

Article Number

Order Data: 50000000024

Separating Element

SE-STL950-GREEN

Order Data: 50950000002

Ratings

UseGroup

Rated Voltage

Rated Current

Overvoltage Category

Test Voltage

Pollution Degree

300 V

15 A

150 V

15 A

300 V

10 A

250 V

12 A

III

1.60 kV

1.30 kV

1.60 kV

4.0 kV

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu
