53101090021D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 53101090021D

53101090021D: DescriptionBarrier Strip Terminal Block,; CategoryThe connector; File Size639KB，1 Pages; ManufacturerPTR Messtechnik GmbH & Co. KG

Download Datasheet Parametric Compare View All

53101090021D Overview

Barrier Strip Terminal Block,

53101090021D Parametric

Parameter Name	Attribute value
Maker	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK

Preview

Download Datasheet

View All

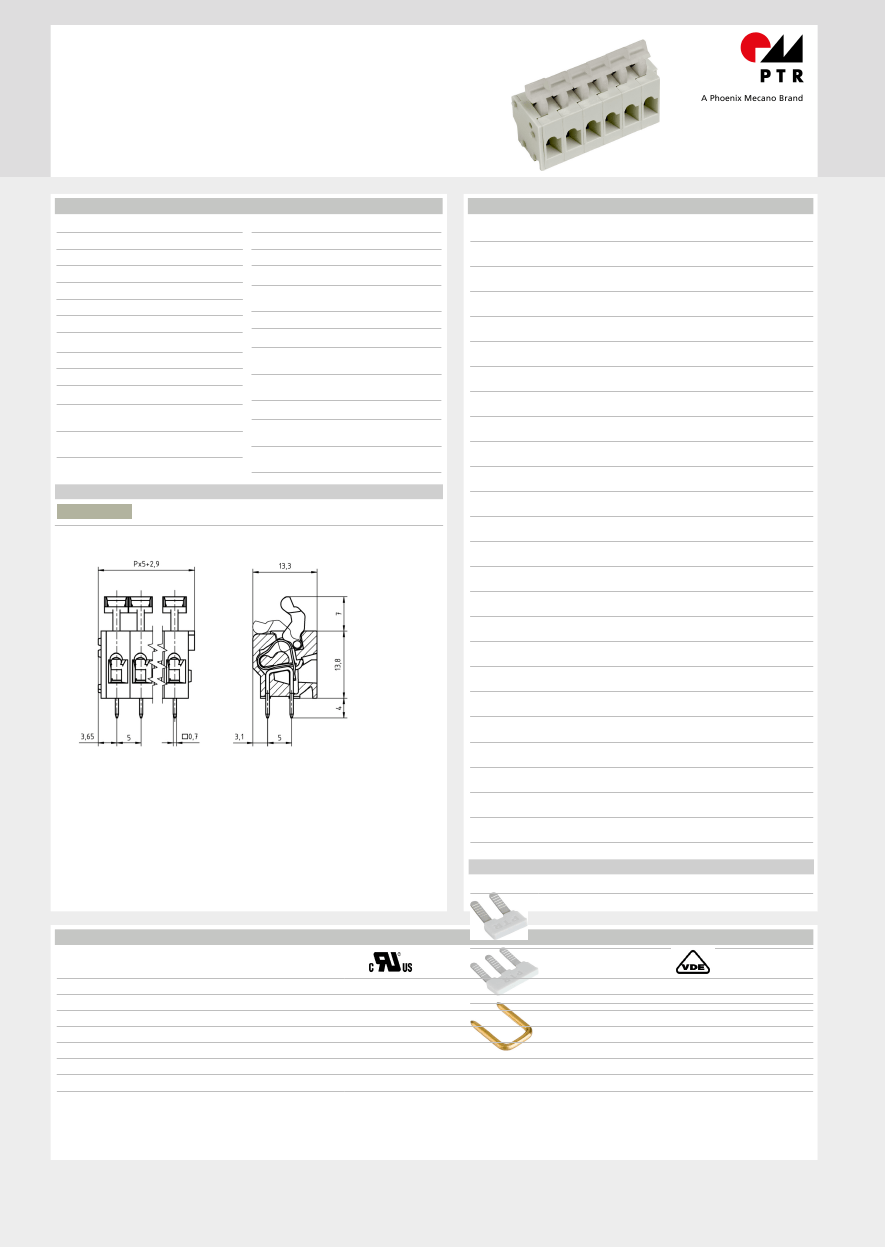

Tension Spring |

Spacing 5.0 mm

AK3101/..WD-5.0-PEBBLE GREY

- 1- to n-poles

Technical Data

Wire sizes

Solid min

Solid max

Stranded (flexible) min

Stranded (flexible) max

Stranded with Ferrule min

Stranded with Ferrule max

0.14 mm²

2.5 mm²

0.14mm²

2.5 mm²

0.14 mm²

1.5 mm²

Order Data (Spacing 5.0 mm)

Insulating Material

Material

Flammability Class

PA 6.6

7.90

12.90

17.90

22.90

27.90

32.90

37.90

42.90

47.90

52.90

57.90

62.90

67.90

72.90

77.90

82.90

87.90

92.90

97.90

102.90

107.90

112.90

117.90

122.90

Poles

Width (mm)

Article Designation

AK3101/1WD-5.0-PEBBLE

GREY

AK3101/2WD-5.0-PEBBLE

GREY

AK3101/3WD-5.0-PEBBLE

GREY

AK3101/4WD-5.0-PEBBLE

GREY

AK3101/5WD-5.0-PEBBLE

GREY

AK3101/6WD-5.0-PEBBLE

GREY

AK3101/7WD-5.0-PEBBLE

GREY

AK3101/8WD-5.0-PEBBLE

GREY

AK3101/9WD-5.0-PEBBLE

GREY

AK3101/10WD-5.0-PEBBLE

GREY

AK3101/11WD-5.0-PEBBLE

GREY

AK3101/12WD-5.0-PEBBLE

GREY

AK3101/13WD-5.0-PEBBLE

GREY

AK3101/14WD-5.0-PEBBLE

GREY

AK3101/15WD-5.0-PEBBLE

GREY

AK3101/16WD-5.0-PEBBLE

GREY

AK3101/17WD-5.0-PEBBLE

GREY

AK3101/18WD-5.0-PEBBLE

GREY

AK3101/19WD-5.0-PEBBLE

GREY

AK3101/20WD-5.0-PEBBLE

GREY

AK3101/21WD-5.0-PEBBLE

GREY

AK3101/22WD-5.0-PEBBLE

GREY

AK3101/23WD-5.0-PEBBLE

GREY

AK3101/24WD-5.0-PEBBLE

GREY

Article

Number

53101010021 G

53101020021 F

53101030021 F

53101040021 F

53101050021 E

53101060021 E

53101070021 E

53101080021 D

53101090021 D

53101100021 D

53101110021 D

53101120021 D

53101130021 D

53101140021 D

53101150021 D

53101160021 D

53101170021 D

53101180021 D

53101190021 D

53101200021 D

53101210021 D

53101220021 D

53101230021 D

53101240021 D

250

200

100

UL 94 V-0

Temperatures

Operating Temperature

(without mech. load)

Store Temperature

-40 °C - 105 °C

Dimensions

Stripped Length

PCB Hole Diameter

6.0 mm

1.1 mm

Wave Soldering Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

260 °C

3-4 s

Materials

Solder Tab

Tension Spring

Copper

Alloy

Stainless

Steel

Reflow Process

Soldering Temperature,

recommended

Peak Soldering Time,

recommended

Colours

PEBBLE GREY, RAL 7032

Colours according to RAL, there may be variations on colour due to production conditions. Special

colours on request.

Accessoires

Figure

Designation

Bridge, 2-pole, insulated,

BRI/2-5.0/5.08-LIGHT GREY

Article Number

Order Data: 50000000006

Ratings

Bridge, 3-pole, insulated,

BRI/3-5.0/5.08-LIGHT GREY

UseGroup

Rated Voltage

Rated Current

Rated Wire Size

- solid

- stranded

Test Voltage

AWG 28-14

1.60 kV

AWG 28-14

1.60 kV

300 V

15 A

300 V

10 A

250 V

Order Data: 50000000007

Bridge, 2-pole,

BR/2-5.0/5.08-L7.0

min

0.5 mm²

24 A

Order Data: 50000000008

max

2.5 mm²

2.0 kV

PTR HARTMANN GmbH

• Gewerbehof 38 • 59368 Werne / Germany

Telefon: +49 (0)2389/7988-0 •

E-Mail: info@ptr-hartmann.com

www.ptr.eu

53101090021D Related Products

	53101090021D	53101060021E	53101070021E	53101210021D	53101160021D
Description	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,	Barrier Strip Terminal Block,
Maker	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG	PTR Messtechnik GmbH & Co. KG
Reach Compliance Code	compliant	compliant	compliant	compliant	compli
Terminal and terminal strip types	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK	BARRIER STRIP TERMINAL BLOCK
