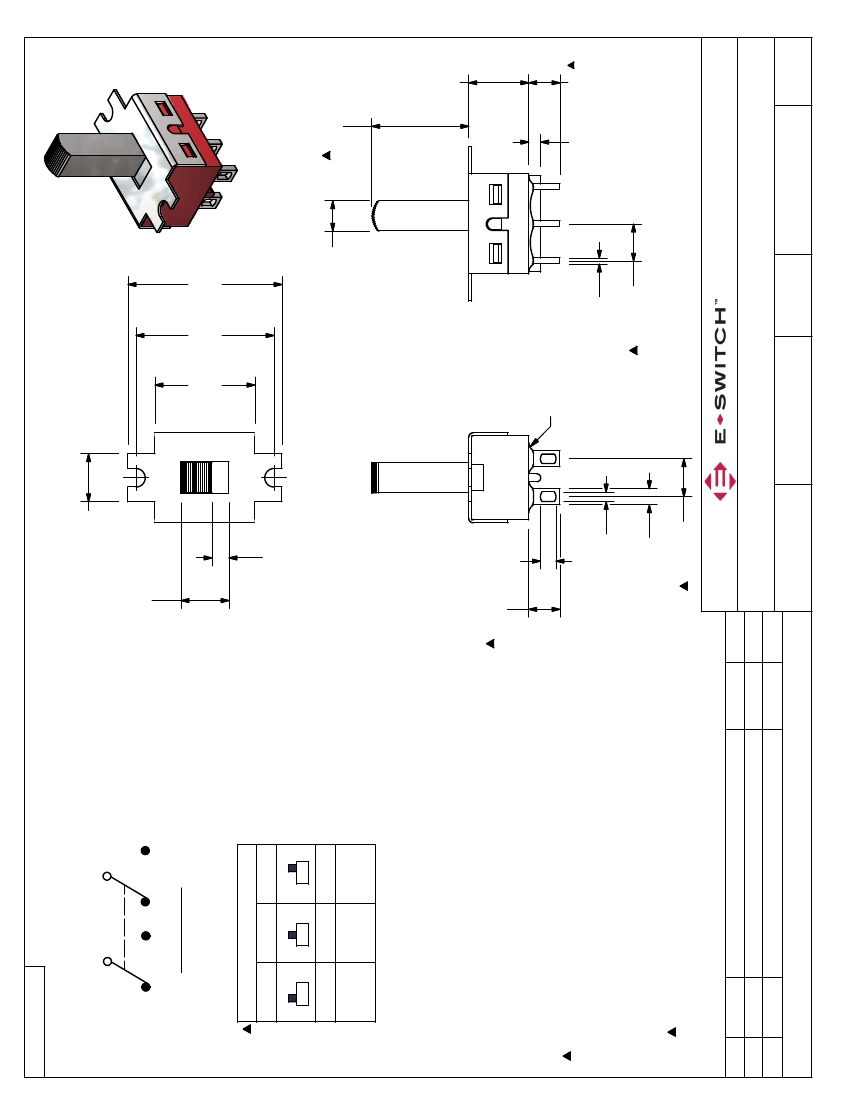

SHEET 1 OF 1
6.10
[.240 in]
6.10
[.240 in]
2
5
1
3
4
6
CIRCUIT: DPDT
12.70
17.53
19.56
[.500 in] [.690 in] [.770 in]
SWITCH FUNCTION
2.16
[.085 in]
TRAVEL
3.86
[.152 in]
POS. 1
POS. 2
POS. 3
ISOMETRIC
ON
NONE
ON
12.32
[.485 in]
2-1, 5-4
N/A
2-3, 5-6
7.62
[.300 in]
3.96
[.156 in]
1.98
[.078 in]
1
4
EPOXY SEAL
4
.76
[.030 in]
5
6
1.52
[.060 in]
3.96
[.156 in]
1.19
[.047 in]
2.03
[.080 in]
4.83
[.190 in]
NOTE:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERMINAL NUMBERS FOR REF ONLY
4. PLATING MATERIAL: SILVER
5. CONTACT RATING: 5A @120VAC OR 28VDC
2A @250VAC
6. ELECTRIC LIFE: 30,000 ACTUATIONS AT FULL LOAD.
7. CONTACT RESISTANCE: 10 m-OHM TYP.
7. INSULATION RESISTANCE: 1,000 MEGA-OHM MIN.
8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.
9. OPERATING TEMP.: -30°C to 85°C
10.
DENOTES CRITICAL PARAMETER.
11. 2002/95/EC (ROHS) COMPLIANT
12. PACKAGE: TRAY/108 PCS PER
1/7/11
6/4/10
DATE
BGL
BLR
BY
4.70
[.185 in]
B
19572
DRAWING UPDATE / CLEAN-UP
A
19088
RELEASED FOR PRODUCTION
TITLE
SCALE
500SDP1S7M1QEB
2:1
DATE
REV
PCR NO
DESCRIPTION
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
6/4/2010
DR
BLR
DWG
T523006
REV
B
