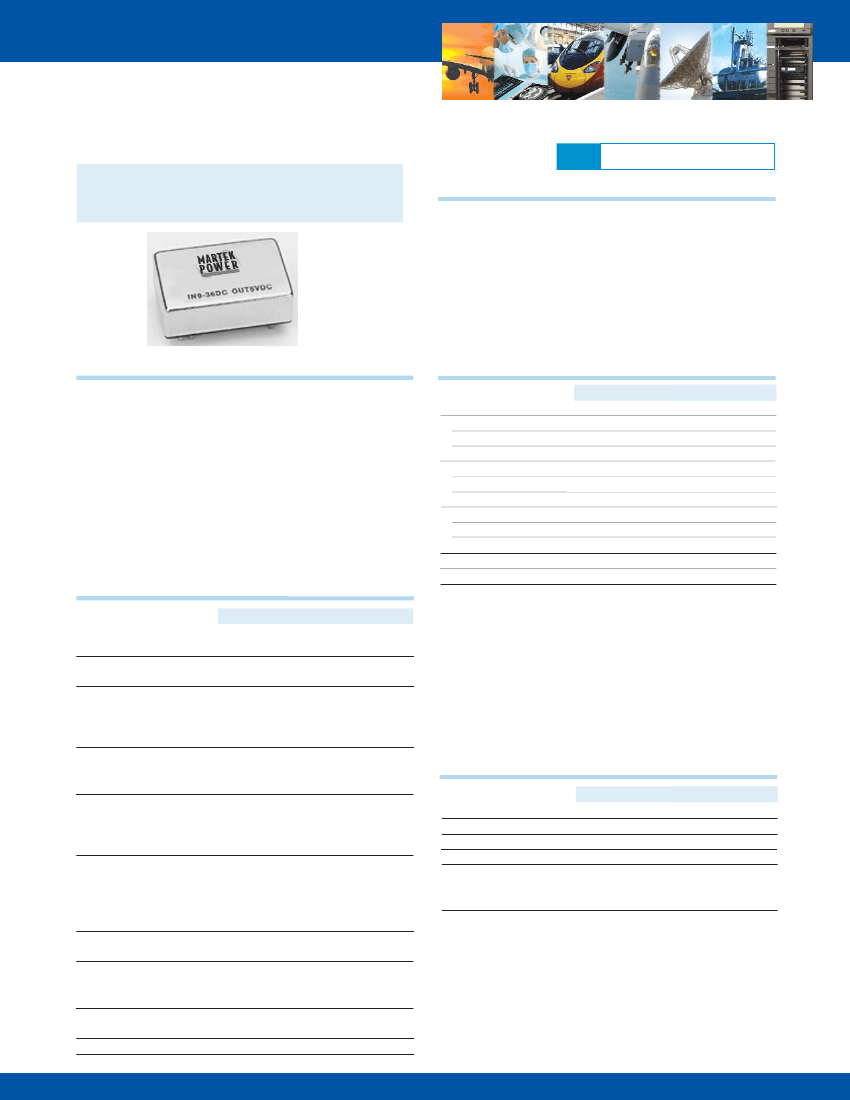

500HFR series
Single & Dual Output
DC/DC Converter
NEW
Approved for New Designs
F
EATURES
•
•
•
•
•
Up to 86% Efficiency
Single & Dual Output, 5 watt converter
Available in 24 and 48 VDC Inputs
4 - 1 Input Range
Industry Standard Pinout
Complies with EN55022 Class A
D
ESCRIPTIONS
The 500HFR series power modules are high efficiency, low
noise, 5 watt low-profile dc-dc converters. The 5 watt converters
operate over a wide input voltage range of 9 - 36 VDC or 18 - 75
VDC and provide precisely regulated output voltages of 3.3V,
5V, 12V, 15V, ±5V, ±12V and ±15V.
The -25
o
C to +71
o
C operating temperature range makes it
ideal for data communication equipment, mobile battery
driven equipment, distributed power systems, telecommunication
equipment, mixed analog/digital subsystems, process/
machine control equipment, computer peripheral systems
and industrial robot systems.
I
NPUT
C
HARACTERISTICS
Min Typ Max Unit/Comments
Input Voltage
24 VDC Input Models
9
24 36
48 VDC Input Models
18 48 75
Under Voltage Shut Down
24 VDC Input Models
8.5
48 VDC Input Models
16
Input Fuse Requirements
24 VDC Input Models
1500
48 VDC Input Models
750
Reverse Polarity Input Current
0.5
Short Circuit Input Power
2500
Input Filter
VDC
VDC
VDC
VDC
mA; Slow blow type
mA; Slow blow type
Amp
mW
Pi Filter
O
UTPUT
C
HARACTERISTICS
Output Voltage Set Point
Output Voltage Balance
(Duals)
Line Regulation
Min Typ Max Unit/Comments
±0.5 ±1.0 % Output voltage at
nominal line & FL
±0.5 ±2.0 % Equal Output
Loads
±0.1 ±0.3 % Output voltage
measured from
min. input line to
maximum
±0.3 ±1.0 % Output voltage
measured from FL
to 10% load
50 75 mV p-p, Nom.Line
@FL, 20MHz B.W.,
using 1
μf
bypass
capacitor
100 mV p-p, Over Line,
Load & Temp., 20
MHz B.W.,
using 1
μf
bypass
capacitor
Continuous,
Automatic Recovery
±3
% deviation of Vout
for a 25% load
change
250 500
μS
for 25% load
change
±0.01 ±0.02 % per degree C
Load Regulation
Ripple/Noise
G
ENERAL
C
HARACTERISTICS
Switching Frequency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
MTBF (MIL-HBK-217F)
Min Typ Max Unit/Comments
kHz
340
VDC, 1 minute
1500
Mohm, 500VDC
1000
550 pF, 100kHz, 1Volt
Million Hours,
1
+25
o
C, Ground
Benign
Ripple/Noise
Short Circuit Protection
Transient Response
Deviation
Transient Recovery Time
Temperature Coefficient
>> B-68
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
www.martekpower.com
E
NVIRONMENTAL
S
PECIFICATIONS
Operating Temp. Range
Operating Temp. Range
Storage Temp. Range
Relative Humidity
Cooling
Conducted EMI
Min
-25
-40
Typ Max
+71
+90
+125
95
Unit/Comments
o
C; Ambient
o
C; Case
o
C
% Humidity; non-
condensing
Free-Air Convection
Complies with
EN55022 Class A
P
HYSICAL
C
HARACTERISTICS
Case Size
Case Material
Flammability
Weight
Unit/Comments
1.25 X 0.8 X 0.4 inches
(31.8 X 20.3 X 10.2 mm)
Metal with Non-conductive Base
UL94V-0
17.3 Grams

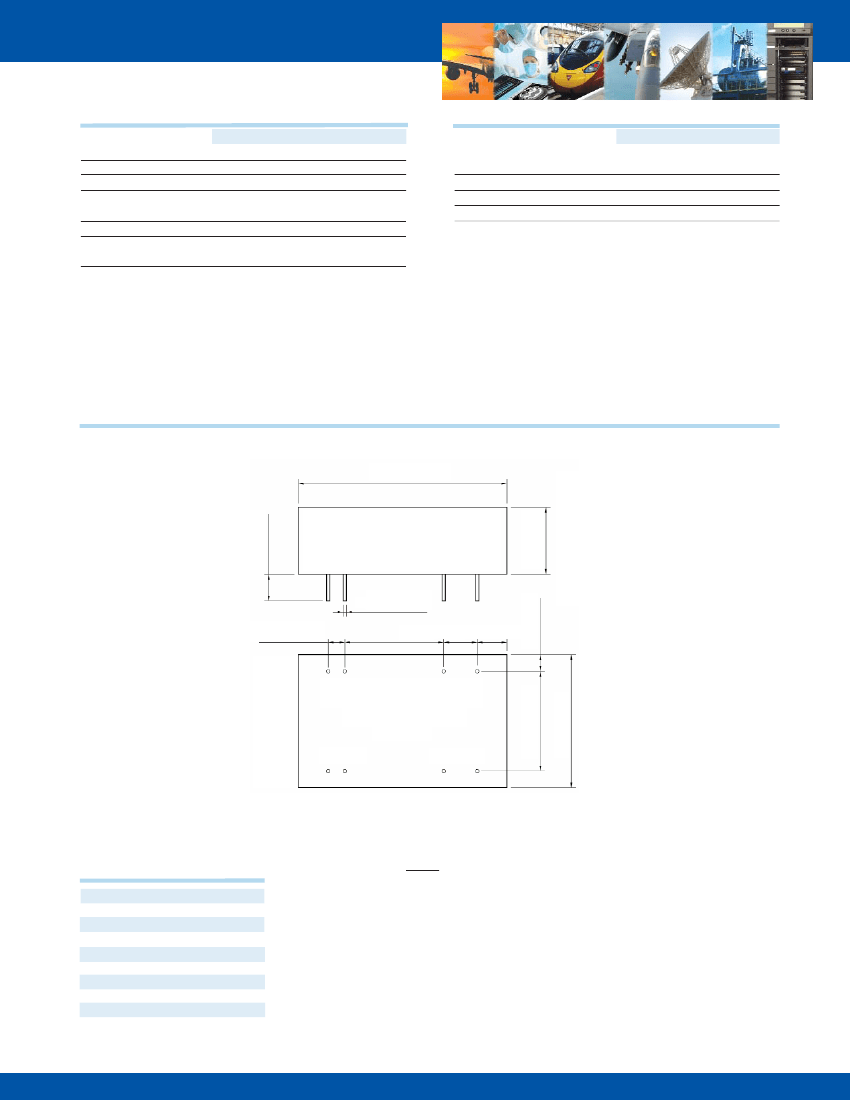

O
UTLINE
D
RAWING
1.25 (31.8)
SIDE VIEW
0.40
(10.2)
0.16 (4.1)
0.020 (0.51)
PIN DIA. TYP.
0.100 (2.54)
6.000 (15.24)
0.200 0.18
(5.08) (4.6)
0.10
(2.5)
2
3
9
11
0.600 0.80
(15.24) (20.3)
14
BOTTOM VIEW
23 22
16
P
IN
O
UT
C
HART
Pins
2
3
9
11
14
16
22
23
Single
- Vin
- Vin
NO PIN
NC
+ Vout
- Vout
+ Vin
+ Vin
Dual
- Vin
- Vin
Common
- Vout
+ Vout
Common
+ Vin
+ Vin
Notes:
1. Unless otherwise specified dimensions are in inches (mm).
Tolerances
Inches
mm
X.XX = ±0.02
X.X = ±0.5
X.XXX= ±0.010
X.XX = ±0.25
Pin :
±0.002
±0.05
All specifications are typical at nominal input, nominal load and 25
°
C unless otherwise specified.
Capacitor mounted close to the power module helps ensure stability of the unit, it is recommended
to use a good quality low ESR capacitor of 4.7
μF
for the 24V input devices
and a 2.2μF for the
NC = No Connection
48V devices.
>> B-69
1111 Knox Street
Torrance
CA 90502
USA
Tel: +1 310 202 8820
sales@martekpower.com
