Data Sheet
Features
•
•
•
•
•
•
•
Ultra low loss SAW filter for GPS applications
Usable bandwidth 2.4 MHz
Single-ended operation
Ceramic chip-scale Package (CSP)
Small Size
Hermetic
RoHS
compliant (2002/95/EC),
Pb-free
Pb
Part Number 856756
1575.42 MHz SAW Filter
Package
Surface Mount 1.40 x 1.20 x 0.46 mm
CSP-5BT

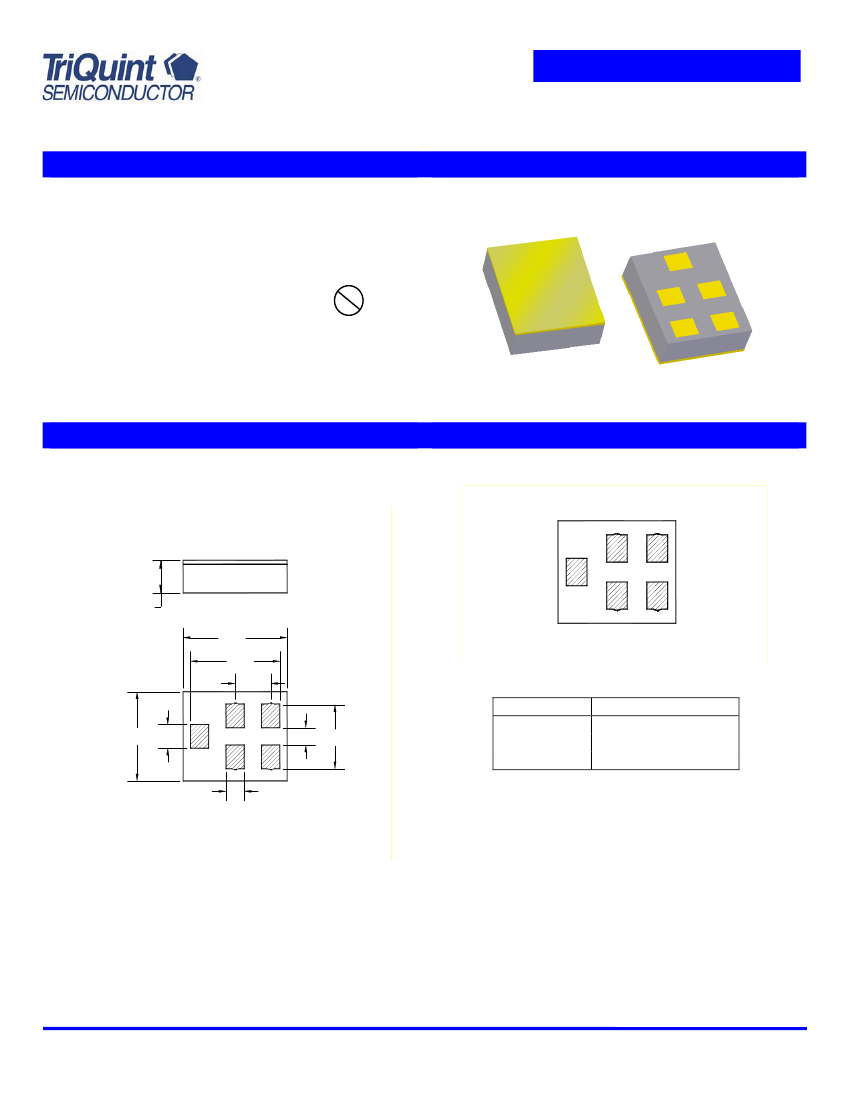

Pin Configuration
Bottom View
2
3
1
0.46 NOM.
0.50 MAX.
1.40
1.25
0.50
5
4
1.20 0.325
0.25
0.90
Pin No.
1
4
2,3,5
Description
Input
Output
Ground
0.25
Dimensions shown are nominal in millimeters
All tolerances are
±0.10mm
Body:
Al
2
O
3
ceramic
Lid:
Kovar
or
Alloy 42, Au
over
Ni
plated
Terminations:
Au
plating 0.5 - 1.0μm,
over a 2 - 6μm
Ni
plating
Subject to change or obsolescence without notice
Rev A
09/08
© TriQuint Semiconductor
Page 1 of 1
Data Sheet
Operating Temperature Range:
(2)
-40 to +85
°C
Part Number 856756
1575.42 MHz SAW Filter

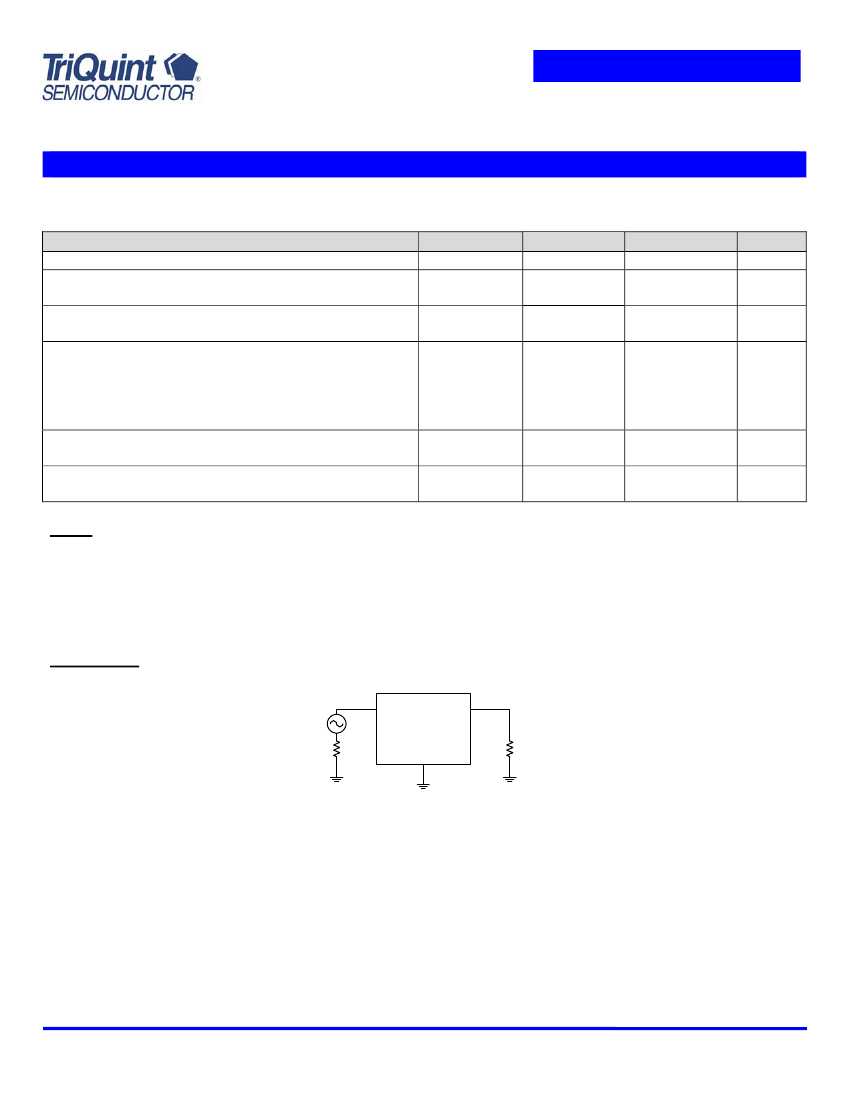

Electrical Specifications
(1)
Parameter
(3)
Center Frequency
Maximum Insertion Loss
1574.22 – 1576.62 MHz
Amplitude Variation
1574.22 – 1576.62 MHz
Absolute Attenuation
824 – 960 MHz
1500 – 1525.42 MHz
1625.42 – 1650 MHz
1710 – 2170 MHz
Input/Output Return Loss
1574.22 – 1576.62 MHz
Source Impedance (single-ended)
(6)
Load Impedance (single-ended)
(6)
Notes:
Minimum
-
-
-
20
21
21
20
15
-
-
Typical
(4)
1575.42
0.5
0.02
22
30
34
24
22
50
50
Maximum
-
0.8
0.2
-
-
-
-
-
-
-
Unit
MHz
dB
dB p-p
dB
dB
dB
dB
dB
Ω
Ω
1. All specifications are based on the TriQuint test circuit shown below
2. In production, devices will be tested at room temperature to a guardbanded specification to ensure electrical compliance over
temperature
3. Electrical margin has been built into the design to account for the variations due to temperature drift and manufacturing tolerances
4. Typical values are based on average measurements at room temperature
5. This is the optimum impedance in order to achieve the performance shown
Test Circuit:
1
50
Ω
4
50
Ω
50
Ω
Single-ended
Input
No impedance matching
required
2,3,5
50
Ω
Single-ended
Output
No impedance matching
required
Subject to change or obsolescence without notice
Rev A
09/08
© TriQuint Semiconductor
Page 2 of 2
Data Sheet
Part Number 856756
1575.42 MHz SAW Filter

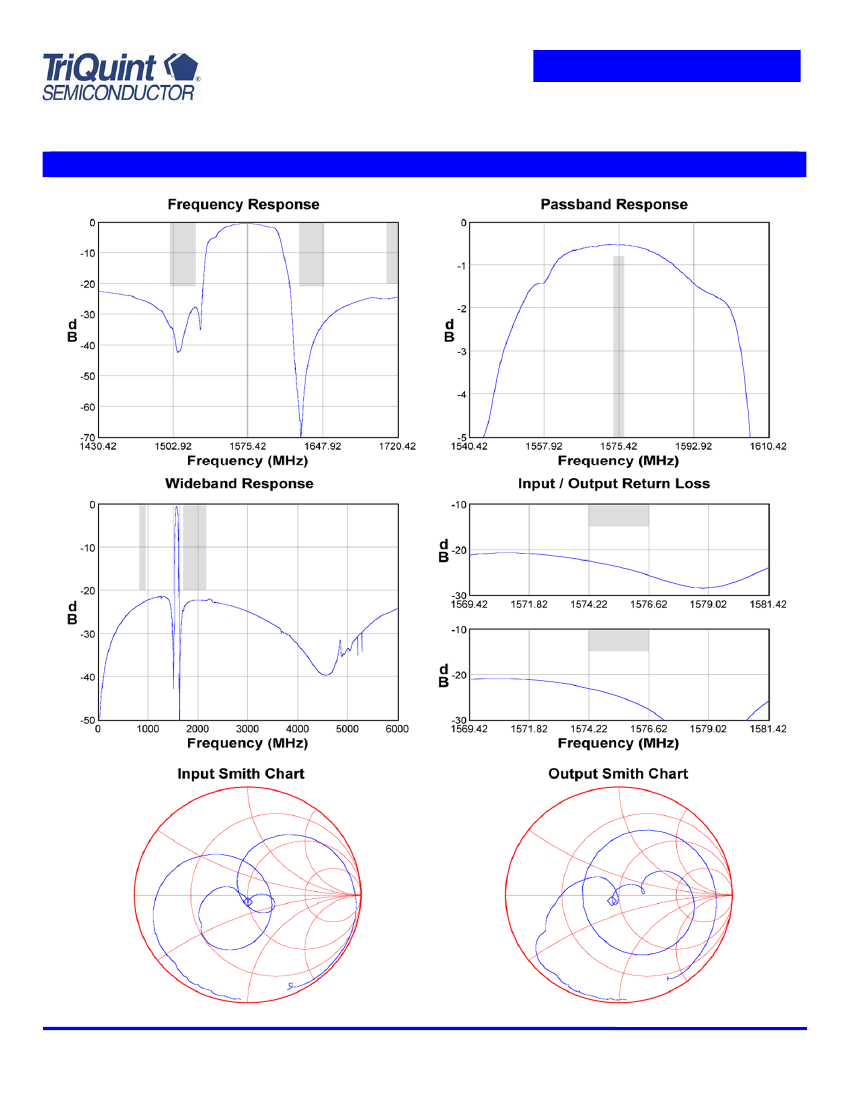

Typical Performance
(at room temperature)
Subject to change or obsolescence without notice
Rev A
09/08
© TriQuint Semiconductor
Page 3 of 3
Data Sheet
Part Number 856756
1575.42 MHz SAW Filter

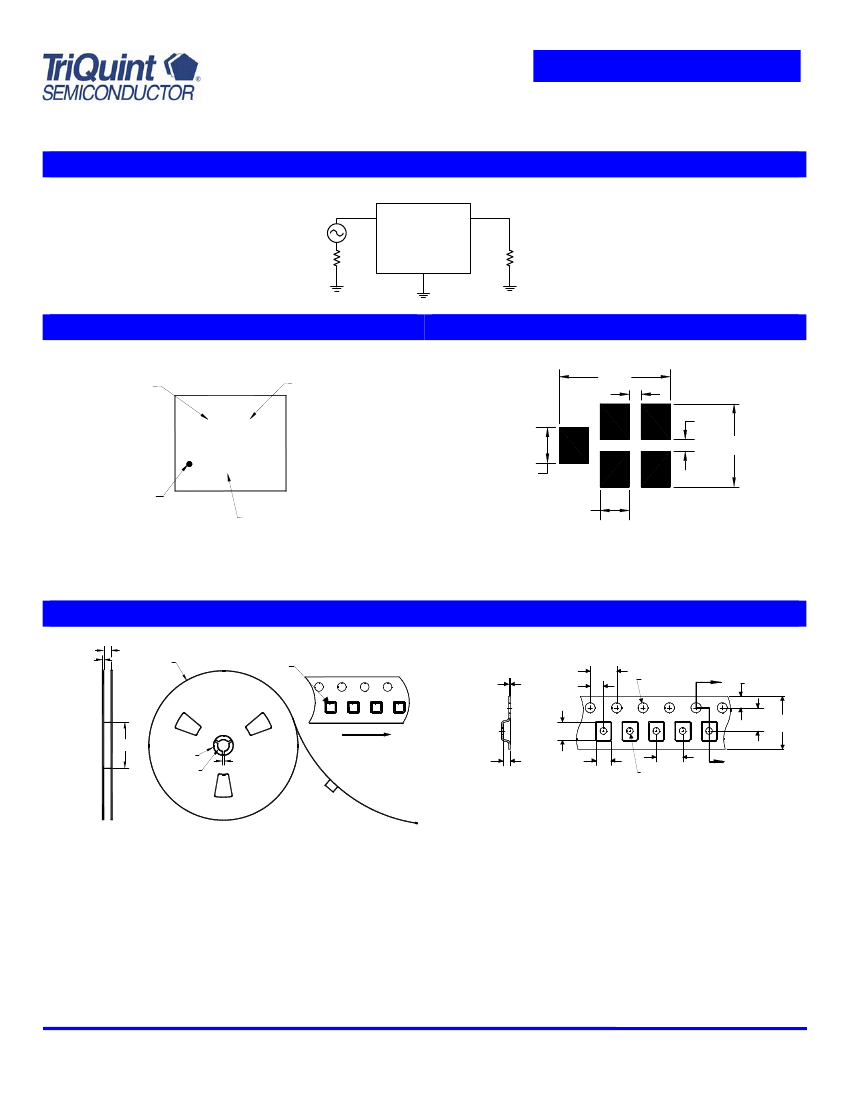

Matching Schematics
50
Ω
Single-ended
Input
No impedance matching
required
1
50
Ω
4
50
Ω
2,3,5
50
Ω
Single-ended
Output
No impedance matching
required
Marking
Marking
code
MFG site
PCB Footprint
1.35
0.15
0.15
1.00
BA M
WWY
ID dot
Date code
0.425
0.35
The date code consists of: WW = 2 digit week,
Y = last digit of year, M = manufacturing site code
This footprint represents a recommendation only
Dimensions shown are nominal in millimeters
Tape and Reel
2.7
8.8
Ø330
ID dot
4.0
0.3
2.0
Ø1.5
A
1.75
1.73
Ø102
Ø20.2
Ø13.0
Direction of travel
2.0
3.5 8.0
4.0
Ø1.0
0.91
Section A-A
1.47
A
Dimensions shown are nominal in millimeters
Packaging quantity: 10000 units/reel
Subject to change or obsolescence without notice
Rev A
09/08
© TriQuint Semiconductor
Page 4 of 4
Data Sheet
Parameter
Operating Temperature Range
Storage Temperature Range
T
T
stg
Part Number 856756
1575.42 MHz SAW Filter
Maximum Ratings
Symbol
Minimum
-40
-40
Maximum
+85
+85
Unit
o
o
C
C
Important Notes
Warnings
•
•
•
•
Electrostatic Sensitive Device (ESD)
Avoid ultrasonic exposure
RoHS Compliance
This product complies with EU directive 2002/95/EC (RoHS)
Pb
Solderability
Compatible with JESD22-B102, Pb-free process, 260C peak reflow temperature
(see
soldering profile)
Links to Additional Technical Information
PCB Layout Tips
S-Parameters
Qualification Flowchart
RoHS Information
Soldering Profile
Other Technical Information
TriQuint’s liability is limited only to the Surface Acoustic Wave (SAW) component(s) described in this data sheet. TriQuint does not accept any liability
for applications, processes, circuits or assemblies, which are implemented using any TriQuint component described in this data sheet.
Contact Information
PO Box 609501
Orlando, FL 32860-9501
USA
Subject to change or obsolescence without notice
Phone: +1 (407) 886-8860
Fax: +1 (407) 886-7061
Email:
info-product@tqs.com
Web:
www.triquint.com
Rev A
09/08
Or contact one of our worldwide
Network of
sales offices,
Representatives or distributors
© TriQuint Semiconductor
Page 5 of 5
