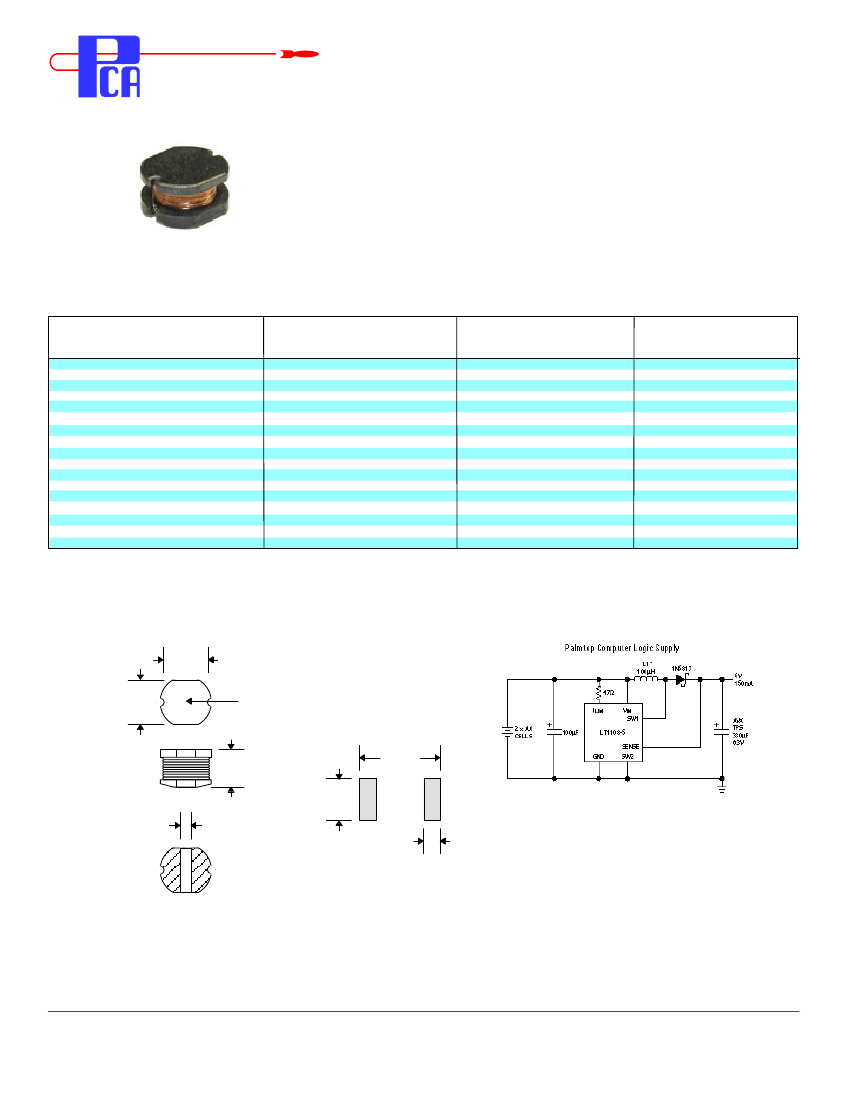

Surface Mount Power Inductor
ELECTRONICS INC.
EPI G3229L Series
• Used in TFT-LCD Bias Supply, Digital Cameras, Cordless Phones,
Medical Diagnostic Equipment, Handheld Devices, MP3 Players
and Other Portable Devices
• Used as Inductors in Linear Technology LT1108, LT1372/77,
LT1767 & LTC1433/34
• Low loss material ensures operation in high frequency switching
converters, such as Buck, Boost or as output averaging filter inductor
Primary Specification
Part
Number
EPI100142G3229L
EPI120132G3229L
EPI150122G3229L
EPI180112G3229L
EPI220102G3229L
EPI270941G3229L
EPI330851G3229L
EPI390741G3229L
EPI470681G3229L
EPI560641G3229L
EPI680591G3229L
EPI820541G3229L
EPI101511G3229L
EPI151401G3229L
EPI221311G3229L
EPI271291G3229L
EPI331281G3229L
Induct.
(µH ± 10%)
@ 0 Adc
10
12
15
18
22
27
33
39
47
56
68
82
100
150
220
270
330
DCR
(Ω Max.)
.081
.090
.104
.111
.129
.153
.170
.217
.252
.282
.332
.406
.481
.755
1.20
1.30
1.495
Idc
(Amps Max.)
1.44
1.39
1.24
1.12
1.07
0.94
0.85
0.74
0.68
0.64
0.59
0.54
0.51
0.40
0.31
0.29
0.28
Package G3229L
.307
± .012
(7.80
± .300)
.276 ± .012
(7.00 ± .300)
Marking:
PCA
Inductance Value
Application
Recommended
Pad Layout
.315
(8.00)
.295
(7.50)
.138 ± .020
(3.50 ± .500)
.079
(2.00)
.118
(3.00)
Note :
1. Temperature Rise : 40°C Typ. @ Idc
2. Inductance Change at I Saturation : 10% TYP.
Unless Otherwise Specified Dimensions are in Inches /mm ± .010 /.25
PCA ELECTRONICS, INC.
16799 SCHOENBORN ST.
NORTH HILLS, CA 91343
Product performance is limited to specified parameters. Data is subject to change without prior notice.
CSIXXXXXXG3229L
Rev. 1
6/9/03 FF
TEL: (818) 892-0761
FAX: (818) 894-5791
http://www.pca.com
