QBLP676-IW-XX
3020 PLCC 2 LED
---------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek PLCC Series
3020 White LED
Part No.: QBLP676-IW-XX
XX = WW/NW/CW
Product: QBLP676-IW-XX
Date: December 06, 2013
Version# 2.2
Page 1 of 10
QBLP676-IW-XX
3020 PLCC 2 LED
---------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (T=25
o
C) .......................................................................................... 4
Absolute Maximum Rating .................................................................................................................... 4
Correlated Color Temperature .............................................................................................................. 5
Characteristic Curves ............................................................................................................................ 6
Solder Profile & Footprint ...................................................................................................................... 7
Packing ................................................................................................................................................. 8
Labeling ................................................................................................................................................ 9
Ordering Information ............................................................................................................................. 9
Revision History .................................................................................................................................. 10
Disclaimer ........................................................................................................................................... 10
Product: QBLP676-IW-XX
Date: December 06, 2013
Version# 2.2
Page 2 of 10
QBLP676-IW-XX
3020 PLCC 2 LED
---------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
Package in tape and reel
Ultra bright reflector type 3020 PLCC 2 LED
InGaN technology for IW
120 degree viewing angle
CRI 80
Description:
This ultra-bright 3020 LED has a height profile of
1.30mm. Combination of high brightness output and
robust package, this LED is ideal for back lighting,
architecture lighting, and industrial equipment lighting
applications.
Application:
Status indication
Industrial equipment backlighting
Architecture lighting
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

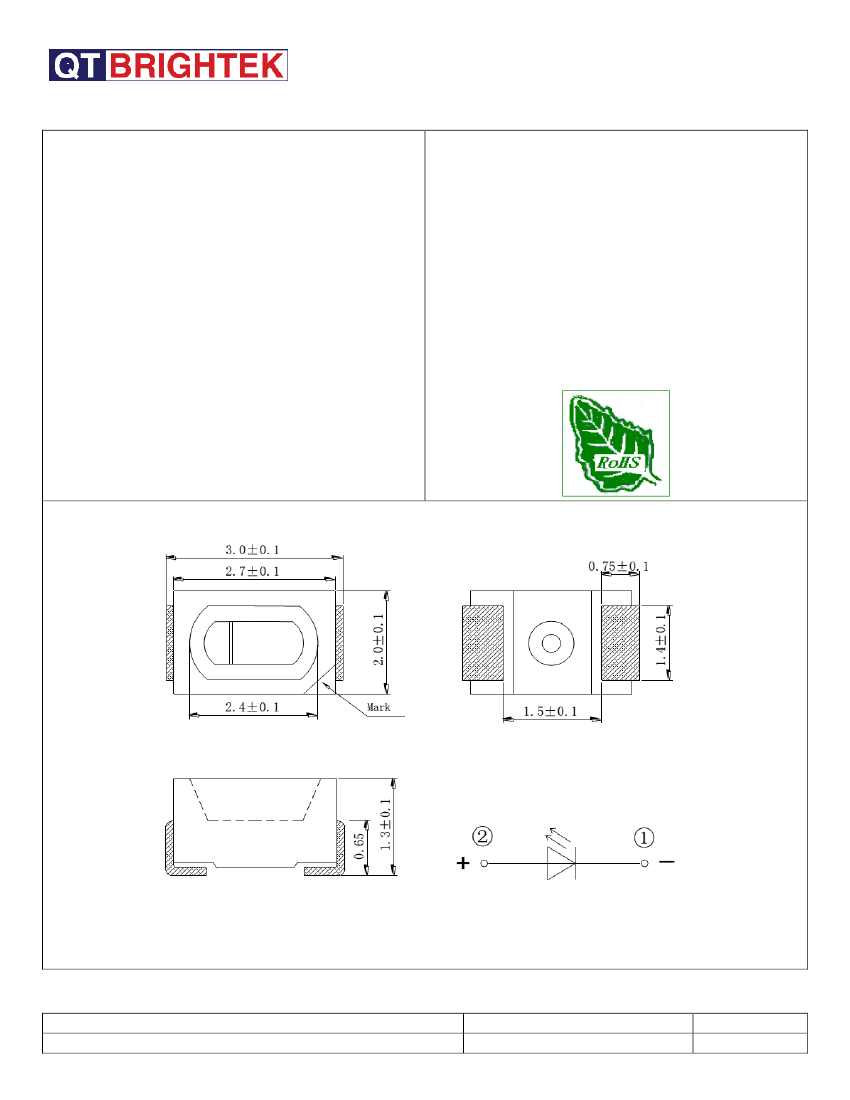

Dimension:
Units: mm / tolerance = +/-0.1mm
Product: QBLP676-IW-XX
Date: December 06, 2013
Version# 2.2
Page 3 of 10
QBLP676-IW-XX
3020 PLCC 2 LED
---------------------------------------------------------------------------------------------------------------------------------------
Electrical / Optical Characteristic (T=25
o
C)
Product
QBLP676-IW-WW
QBLP676-IW-CW
Color
Warm White
Cool White
I
F
(mA)
20
20
20
V
F
(V)
Typ. Max.
3.2
3.4
3.2
3.2
3.4
3.4
CCT(K)
Min.
Typ.
Max.
2760
3000
3260
3640
5300
4000
6020
4240
7050
I
V
(mcd)
Min.
Typ.
1600
1950
1600
1600
2000
2000
QBLP676-IW-NW Natural White
Absolute Maximum Rating
Material
P
d
(mW)
I
F
(mA)
I
FP
(mA)*
V
R
(V)
5
T
OP
(
o
C)
-30 ~ +85
T
ST
(
o
C)
-40 ~ +100
T
SOL
(
o
C)**
260
InGaN
75
30
100
*Duty 1/10 @ 1KHz
** IR Reflow for no more than 10 sec @ 260
o
C
Forward Voltage V
F
@ I
F
=20mA
Bin
H
J
K
Min.
2.8
3.0
3.2
Max.
3.0
3.2
3.4
Unit
V
Luminous Intensity I
V
@I
F
=20mA
Bin
L1
L2
L3
L4
L5
Min.
1600
1950
2400
2880
3450
Max.
1950
2400
2880
3450
4150
Unit
mcd
Note:
Tolerance of measurement of forward voltage: ±0.1V
Tolerance of measurement of luminous intensity: ±15%
Correlated Color Temperature (CCT) @ I
F
=20mA
Bin
RN
RL
RM
RR
Min.
2760
3640
5300
6020
Max.
3260
4240
6020
7050
Unit
K
Product: QBLP676-IW-XX
Date: December 06, 2013
Version# 2.2
Page 4 of 10
QBLP676-IW-XX
3020 PLCC 2 LED
---------------------------------------------------------------------------------------------------------------------------------------

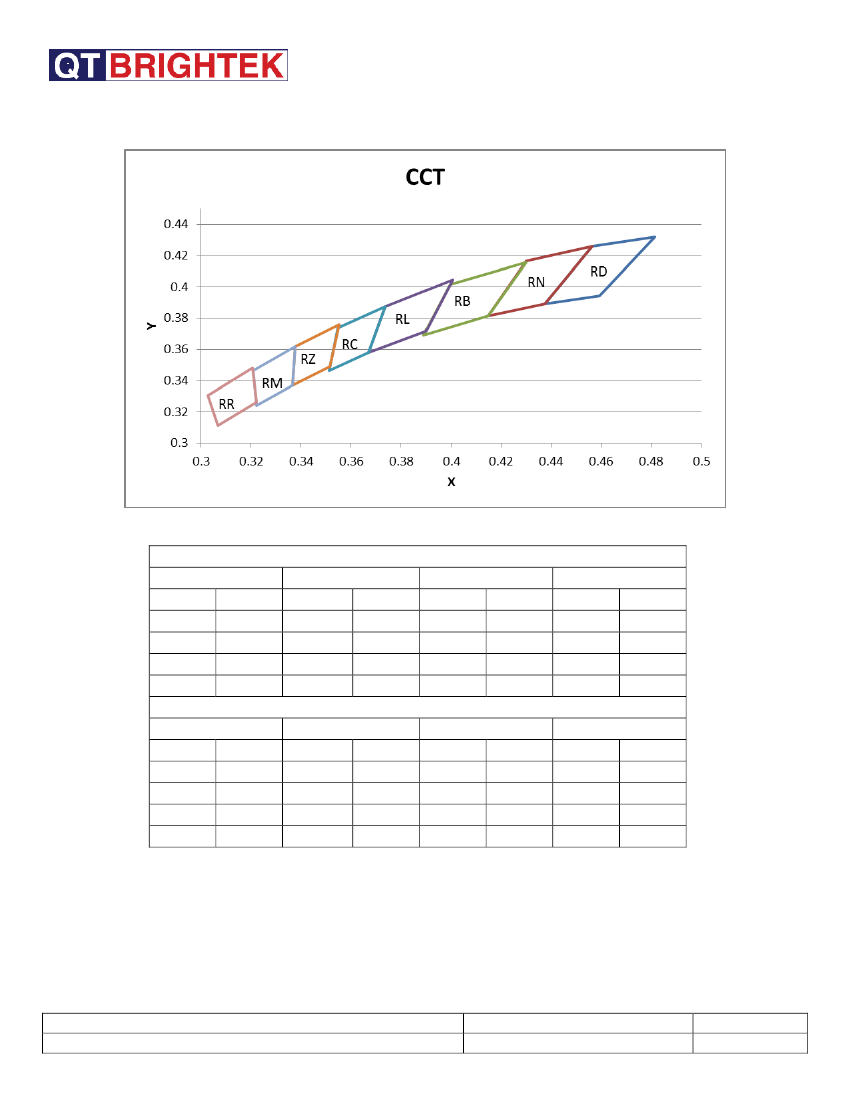

Correlated Color Temperature
RD
0.4813 0.4319
0.4562 0.426
0.4373 0.3893
0.4593 0.3944
0.4813 0.4319
RC
0.3736 0.3874
0.3548 0.3736
0.3512 0.3465
0.367 0.3578
0.3736 0.3874
Color Ranks @ I
F
=20mA
RN
RB
0.4562
0.426 0.4299 0.4156
0.4299 0.4165 0.3996 0.4015
0.4147 0.3814 0.3889 0.369
0.4373 0.3893 0.4147 0.3814
0.4562
0.426 0.4299 0.4156
RZ
0.3551
0.376
0.3376 0.3616
0.3366 0.3369
0.3515 0.3487
0.3551
0.376
RM
0.3376 0.3616
0.3207 0.3462
0.3222 0.3243
0.3366 0.3369
0.3376 0.3616
RL
0.4006 0.4044
0.3736 0.3874
0.367 0.3578
0.3898 0.3716
0.4006 0.4044
RR
0.3205 0.3481
0.3028 0.3304
0.3068 0.3113
0.3221 0.3261
0.3205 0.3481
Note:
Tolerance of measurement of color coordinates: ±0.01
Product: QBLP676-IW-XX
Date: December 06, 2013
Version# 2.2
Page 5 of 10
