417-152 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 417-152

417-152: DescriptionBoard Connector, 152 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug; CategoryThe connector The connector; File Size446KB，2 Pages; ManufacturerEDAC

Download Datasheet Parametric Compare View All

417-152 Overview

Board Connector, 152 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug

417-152 Parametric

Parameter Name	Attribute value
Maker	EDAC
Reach Compliance Code	compliant
Other features	POLARIZED, STAGGERED CONFIGURATION
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact point gender	HERMAPHRODITIC
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	417
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	152
UL Flammability Code	94V-0

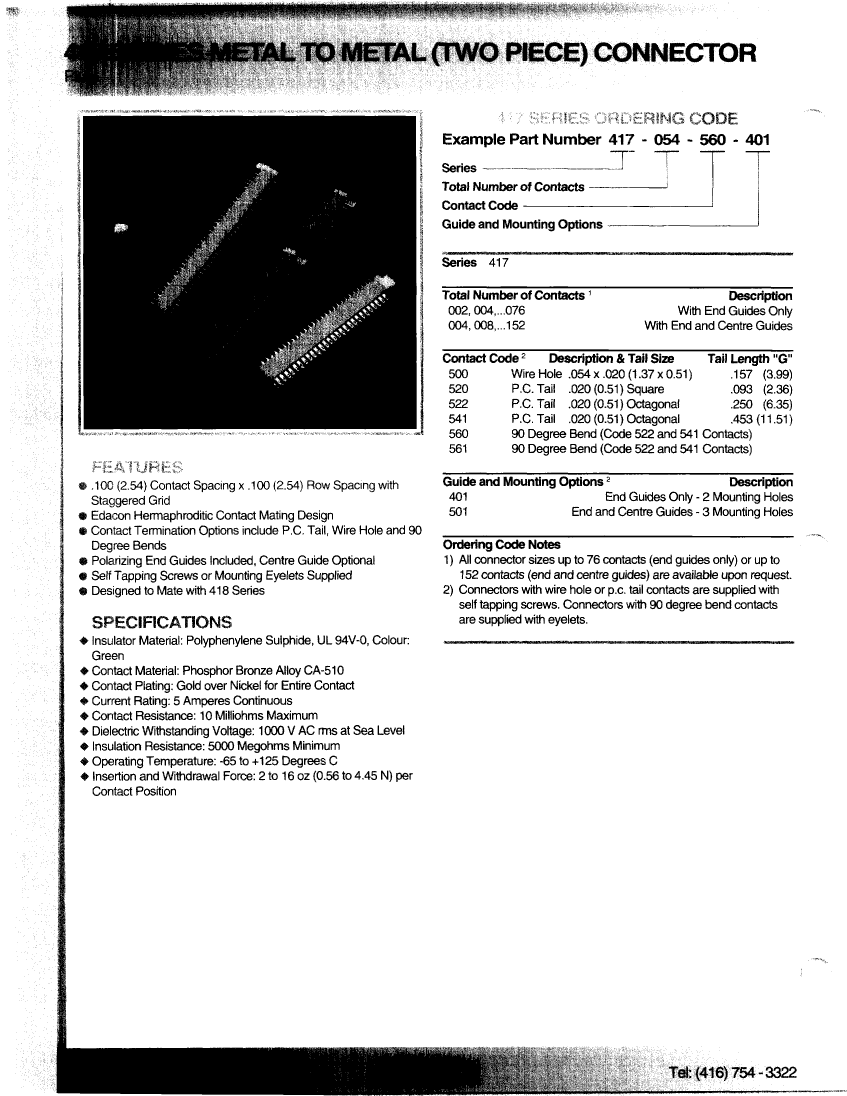

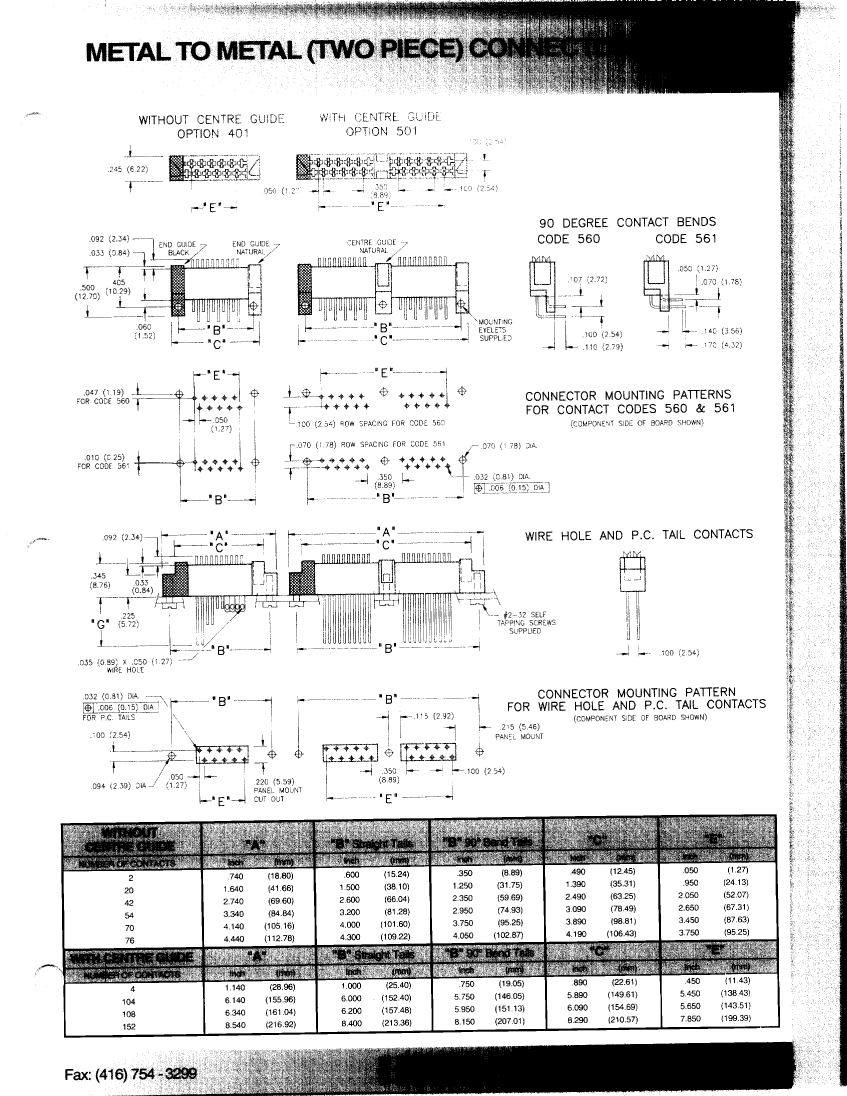

Preview

Download Datasheet

View All

417-152 Related Products

	417-152	417-108	417-076	417-042	417-070	417-054
Description	Board Connector, 152 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug	Board Connector, 108 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug	Board Connector, 76 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug	Board Connector, 42 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug	Board Connector, 70 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug	Board Connector, 54 Contact(s), 2 Row(s), Hermaphroditic, Right Angle, Solder Terminal, Plug
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION	POLARIZED, STAGGERED CONFIGURATION
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	HERMAPHRODITIC	HERMAPHRODITIC	HERMAPHRODITIC	HERMAPHRODITIC	HERMAPHRODITIC	HERMAPHRODITIC
DIN compliance	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	417	417	417	417	417	417
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	152	108	76	42	70	54
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	EDAC	-	-	EDAC	EDAC	EDAC
Base Number Matches	-	1	1	1	1	-
