633-062-263-555 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 633-062-263-555

633-062-263-555: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

633-062-263-555 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	633-062-263-555	-	-	View	Buy Now

633-062-263-555 Overview

D Subminiature Connector,

633-062-263-555 Parametric

Parameter Name	Attribute value
Maker	EDAC
Reach Compliance Code	compliant
Connector type	D SUBMINIATURE CONNECTOR

Preview

Download Datasheet

View All

UNLESS OTHERWISE

SPECIFIED

TOLERANCE

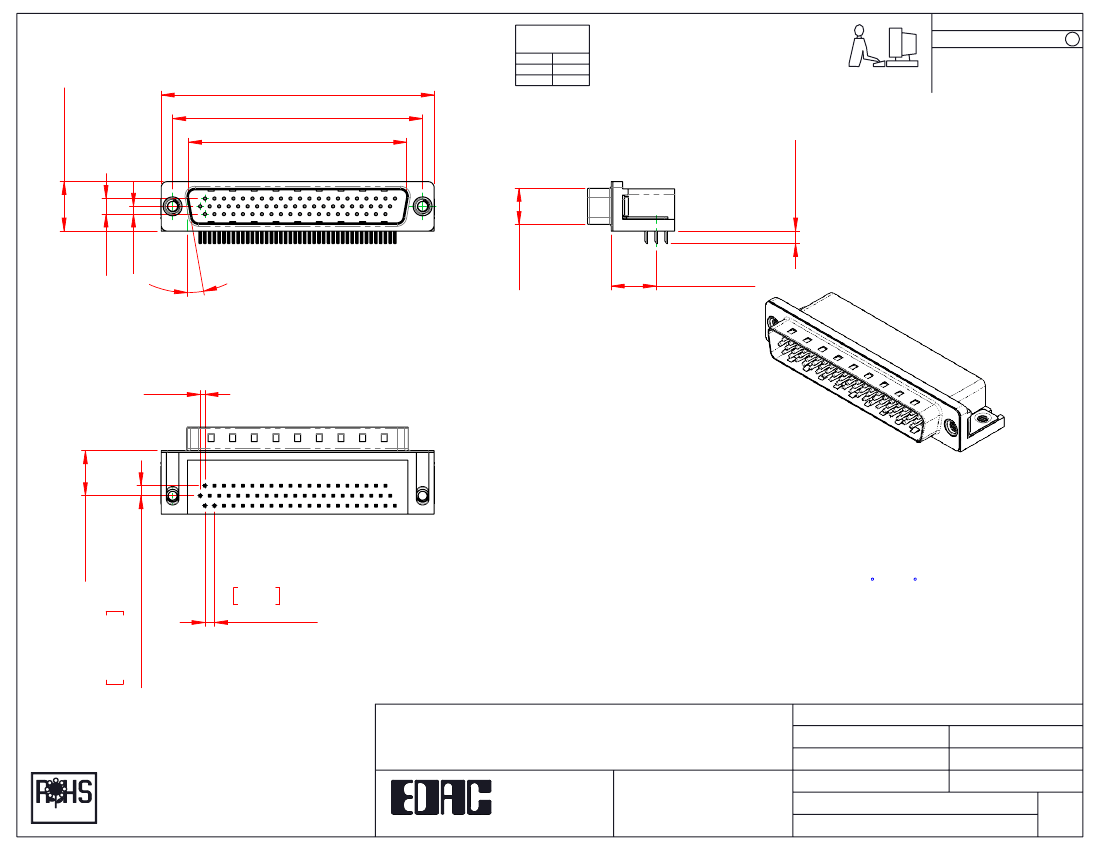

THIS IS A C.A.D. GENERATED DRAWING

DO NOT MAKE MANUAL REVISIONS TO MASTER.

ISSUE NUMBER

ORIGINAL

12.55

±0.38

69.32

±0.38

63.50

±0.25

55.42

.XX

.XXX

±0.25

±0.13

±0.05

3.96

1.98

9.16

10°

11.43

±0.25

1.21

NOTES:

11.43

±0.25

MATERIAL:

HOUSING: THERMOPLASTIC POLYESTER, UL94V-0

SHELL: STEEL, Sn or Ni PLATED

CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING

0.10

±0.01

2.54

±0.25

TYP

0.095

2.41 TYP

OPERATING TEMPERATURE: -55 C ~ 85 C

CURRENT RATING: 3A PER CONTACT

CONTACT RESISTANCE: 25mΩ MAX.

INSULATOR RESISTANCE: 5000MΩ min.

DIELECTRIC

WITHSTANDING VOLTAGE: 1000V AC rms

SW REFERENCE NO.:

633 ASSEMBLY

DATE:

SHEET

AUG. 01/2018

633 SERIES D-SUB CONNECTOR

THIS SERIES FULLY CONFORMS TO

THE EUROPEAN UNION DIRECTIVES

COMPLIANT

2011/65/EU FOR RoHS COMPLIANCY.

EDAC INC

TORONTO, ONTARIO

CANADA

YOUR CONNECTION TO QUALITY & SERVICE

THESE DRAWINGS AND SPECIFICATIONS

ARE THE PROPERTY OF EDAC INC.,AND

SHALL NOT BE REPRODUCED,OR COPIED

OR USED AS THE BASIS FOR THE

MANUFACTURE OR SALE OF APPARATUS

WITHOUT WRITTEN PERMISSION.

3.18

±0.38

DRAWN:

CHECKED:

SCALE:

C.B

(IN C.A.D. 1:1)

ISSUE

DRAWING NUMBER:

PART NUMBER:

633-062-263-555
