634-015-663-545

Description
D Subminiature Connector,
CategoryThe connector    The connector
File Size95KB,1 Pages
ManufacturerEDAC
Download Datasheet Parametric View All

634-015-663-545 Online Shopping

Suppliers Part Number Price MOQ In stock
634-015-663-545 - - View Buy Now

634-015-663-545 Overview

D Subminiature Connector,

634-015-663-545 Parametric

Parameter NameAttribute value
MakerEDAC
Reach Compliance Codecompliant
Connector typeD SUBMINIATURE CONNECTOR
UNLESS OTHERWISE
SPECIFIED
TOLERANCE

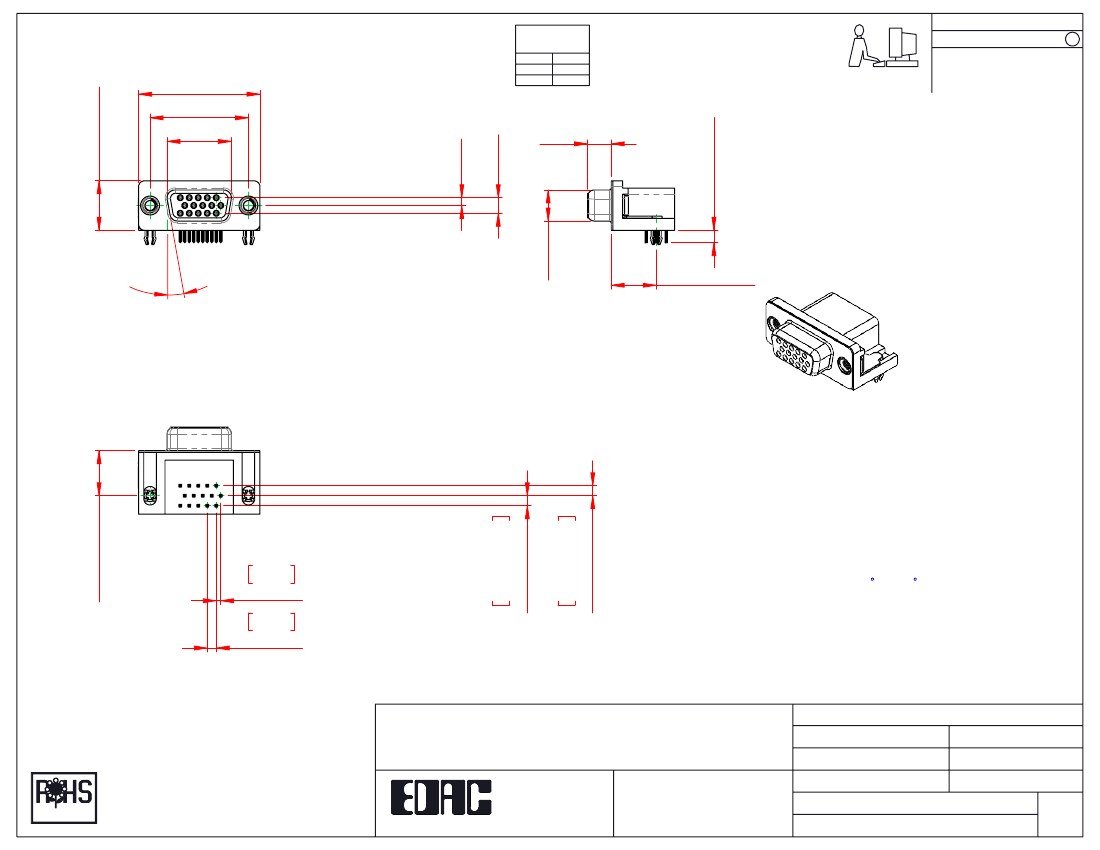

THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
ISSUE NUMBER
ORIGINAL
1
12.55
±0.38
30.81
±0.38
24.99
±0.25
3.960
16.33
1.98
.X
.XX
.XXX
±0.25
±0.13
±0.05
6.0
7.90
10°
11.43
±0.25
NOTES:
MATERIAL:
HOUSING: THERMOPLASTIC POLYESTER, UL94V-0
SHELL: STEEL, Sn or Ni PLATED
CONTACT: COPPER ALLOY SEE ORDERING GUIDE FOR PLATING
OPERATING TEMPERATURE: -55 C ~ 85 C
CURRENT RATING: 3A PER CONTACT
CONTACT RESISTANCE: 25mΩ MAX.
INSULATOR RESISTANCE: 5000MΩ min.
DIELECTRIC
WITHSTANDING VOLTAGE: 1000V AC rms
SW REFERENCE NO.:
634 ASSEMBLY
DATE:
DATE:
SHEET
AUG. 01/2018
0.100
±0.010
2.54
±0.25
0.045
1.14
0.090
2.29
634 SERIES D-SUB CONNECTOR
THIS SERIES FULLY CONFORMS TO
THE EUROPEAN UNION DIRECTIVES
COMPLIANT
2011/65/EU FOR RoHS COMPLIANCY.
EDAC INC
TORONTO, ONTARIO
CANADA
YOUR CONNECTION TO QUALITY & SERVICE
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
0.100
±0.010
2.54
±0.25
11.43
±0.25
3.18
±0.38
DRAWN:
CHECKED:
SCALE:
C.B
(IN C.A.D. 1:1)
1
OF
1
ISSUE
DRAWING NUMBER:
PART NUMBER:
634-015-663-545
634-015-663-545
1
