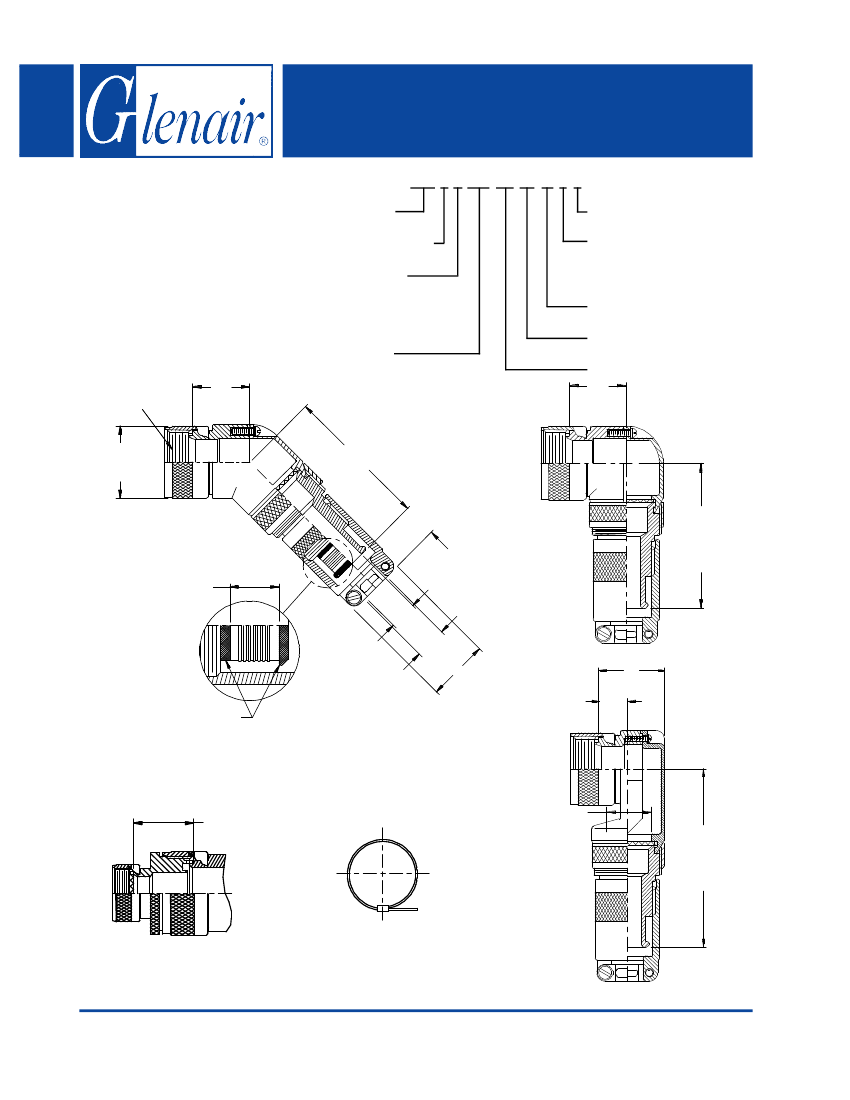

447-425

EMI/RFI Non-Environmental Band-in-a-Can Backshell

with Cable Clamp Strain-Relief

Rotatable Coupling - Split Shell

447 F D 425 NF 16 12 K P

447

CONNECTOR

DESIGNATORS

Product Series

Connector Designator

Angle and Profile

C = Low Profile Split 90

D = Split 90

F = Split 45

Basic Part No.

Polysulfide (Omit for none)

B = Band

K = Precoiled Band

(Omit for none)

Cable Entry (Table IV)

Shell Size (Table I)

A-F-H-L-S

ROTATABLE

COUPLING

A Thread

(Table I)

D

(Table III)

Finish (Table II)

F

(Table III)

C Typ.

(Table I)

E (Table III)

Split 45°

.500 (12.7)

Max

Termination Area

Free of Cadmium

Knurl or Ridges

Mfr's Option

M **

Cable

Range

Split 90°

G

(Table

III)

L **

** (Table IV)

Polysulfide Stripes

P Option

H (Table III)

K

(Table III)

.88 (22.4)

Max

Max Wire

Bundle

(Table III,

Note 1)

J

(Table

III)

STYLE 2

(See Note 1)

Band Option

(K Option Shown -

See Note 3)

CAGE Code 06324

Ultra Low-

Profile Split

90°

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 447 - Page 10
