013058 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 013058

013058: DescriptionBoard Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size261KB，3 Pages; ManufacturerERNI; Websitehttp://www.erni.com; Environmental Compliance

Download Datasheet Parametric Compare View All

013058 Overview

Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

013058 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41612; IEC 60603-2
body width	0.638 inch
subject depth	0.492 inch
body length	3.701 inch
Body/casing type	RECEPTACLE
Connector type	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact style	SQ PIN-SKT
DIN compliance	YES
Durability	400 Cycles
Filter function	NO
IEC compliance	YES
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Loaded row name	A,B,C,D,E
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	ENDS
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.15 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	160
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

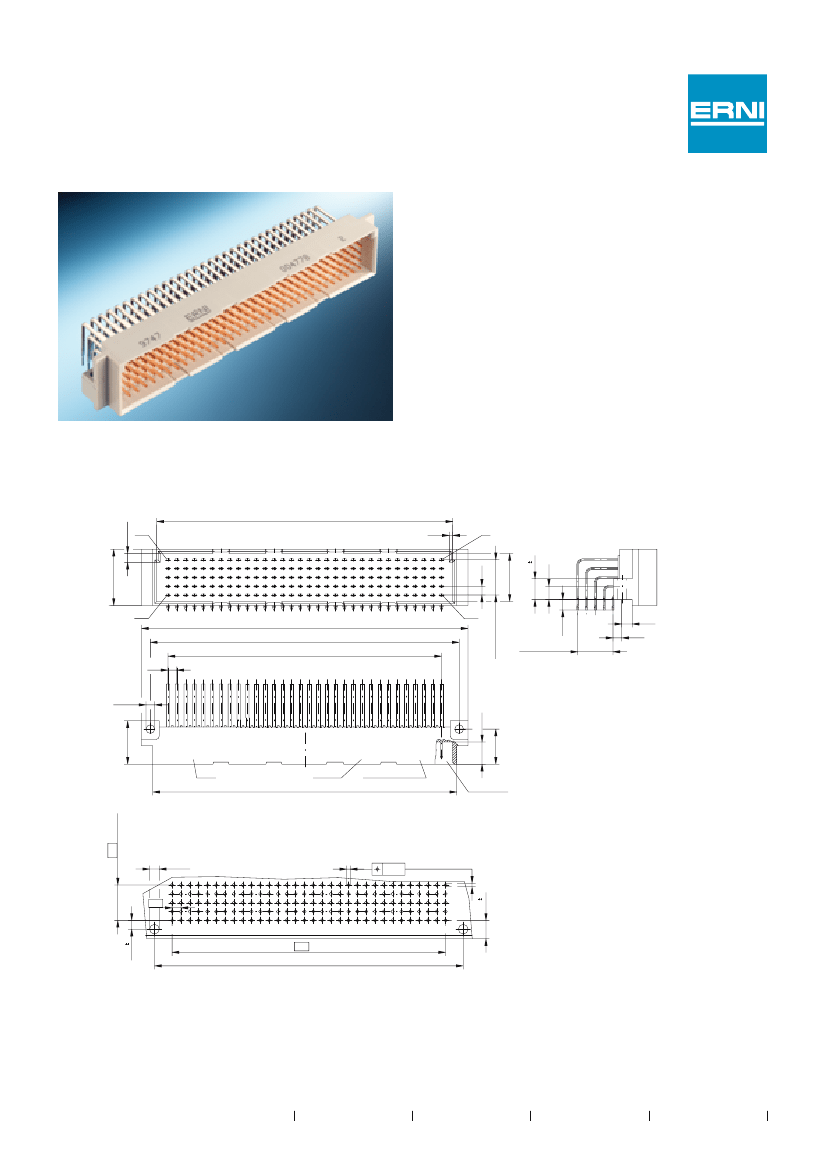

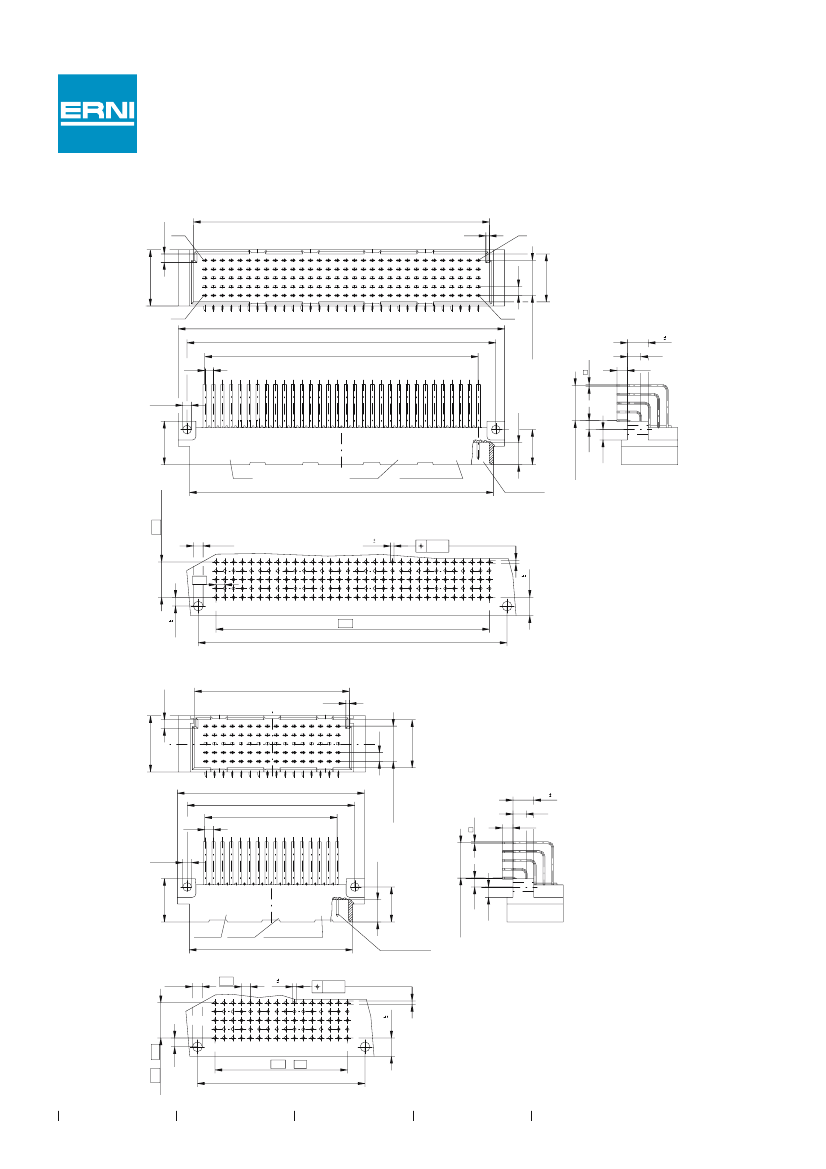

DIN 41612 / IEC 60603-2 Connectors

Type E 160 / E 80 Male

Dimensional Drawing Pressfit Type E 160

85,2

-0,2

2,5

e 32

-0,1

0,1

16,2 max.

2,54

3,85

+0,2

13,8

a 32

94 max.

88,9

31 x 2,54 = 78,74

2,54

10,16

-0,4

2,54

4 x 2,54 =

10,16

+0,1

2,5

-0,1

12,5

6,4

XXXX

Datum

date

ERNI

Ident-Nr.

87,5

XXXXXX

Anforderungsstufe

class

Stecklänge

mating length

4 x 2,54 =

( 10,16)

Leiterplatten-Lochbild /

+0,1

PCB drillhole pattern

0,05

alle Löcher/

all holes

0,1

2,8

10,2

-0,2

ø 1,0

ø 1,15

+ 0,09

- 0,06

+ 0,09

- 0,06

Durchmesser des metallisierten Loches

Diameter of finished plated-through hole

Bohrungsdurchmesser des Loches

32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9

0,1

5,3

2,54

0,025

ø 1,15

0,025

Diameter of drilled hole

2,54

31 x 2,54 =

88,9

( 78,74 )

114

Catalog E 074558

03/06

Edition 1

+0,1

www.erni.com

013058 Related Products

	013058	033704	004777	004778	913615	013096
Description	Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,	Board Euro Connector, 80 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,	Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle,	Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Receptacle	Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, Solder Terminal	Board Euro Connector, 160 Contact(s), 5 Row(s), Male, Right Angle, 0.1 inch Pitch, Press Fit Terminal, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compli	unknown	compliant	compliant	compliant
Other features	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2	STANDARDS: DIN 41612; IEC 60603-2
Connector type	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR	BOARD EURO CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	TIN	TIN	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	YES	YES	YES	YES	YES	YES
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	YES	YES	YES	YES	YES	YES
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	5	5	5	5	5	5
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	PRESS FIT
Total number of contacts	160	80	160	160	160	160
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Maker	ERNI	-	ERNI	ERNI	ERNI	ERNI
body width	0.638 inch	0.638 inch	0.638 inch	0.638 inch	-	0.638 inch
subject depth	0.492 inch	0.904 inch	0.892 inch	0.892 inch	-	0.892 inch
body length	3.701 inch	2.122 inch	3.701 inch	3.701 inch	-	3.701 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	-	SQ PIN-SKT
Durability	400 Cycles	400 Cycles	500 Cycles	400 Cycles	-	400 Cycles
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	GLASS FILLED POLYBUTYLENE TEREPHTHALATE	-	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Match contact row spacing	0.1 inch	0.1 inch	0.1 inch	0.1 inch	-	0.1 inch
Loaded row name	A,B,C,D,E	A,B,C,D,E	A,B,C,D,E	A,B,C,D,E	-	A,B,C,D,E
PCB row number	5	5	5	5	-	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	-	125 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
PCB contact row spacing	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm
polarization key	ENDS	ENDS	POLARIZED HOUSING	POLARIZED HOUSING	-	ENDS
Rated current (signal)	3 A	2 A	3 A	3 A	-	1 A
Guideline	UL	UL	UL	UL	-	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal length	0.15 inch	0.118 inch	0.118 inch	0.118 inch	-	0.118 inch
