013634 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 013634

013634: DescriptionD Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket,; CategoryThe connector The connector; File Size65KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

013634 Overview

D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket,

013634 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

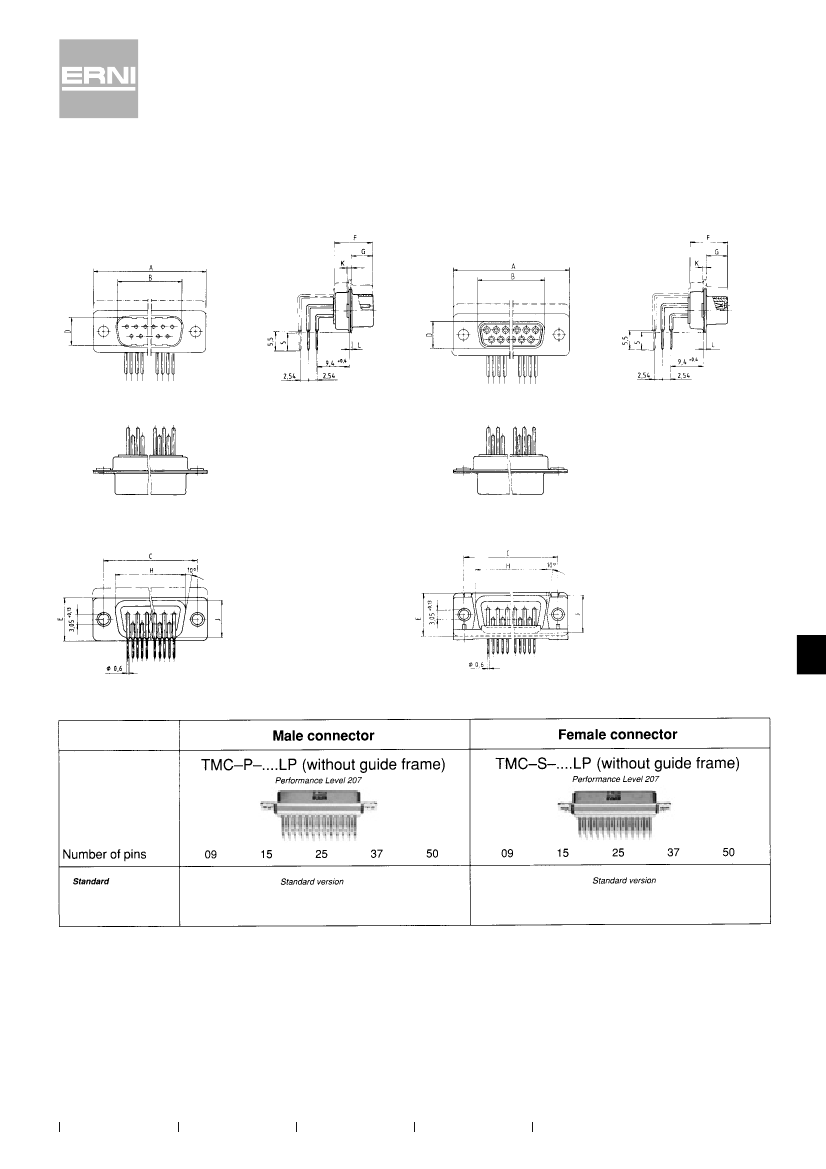

TMC with angled dip-solder termination

(without guide frame)

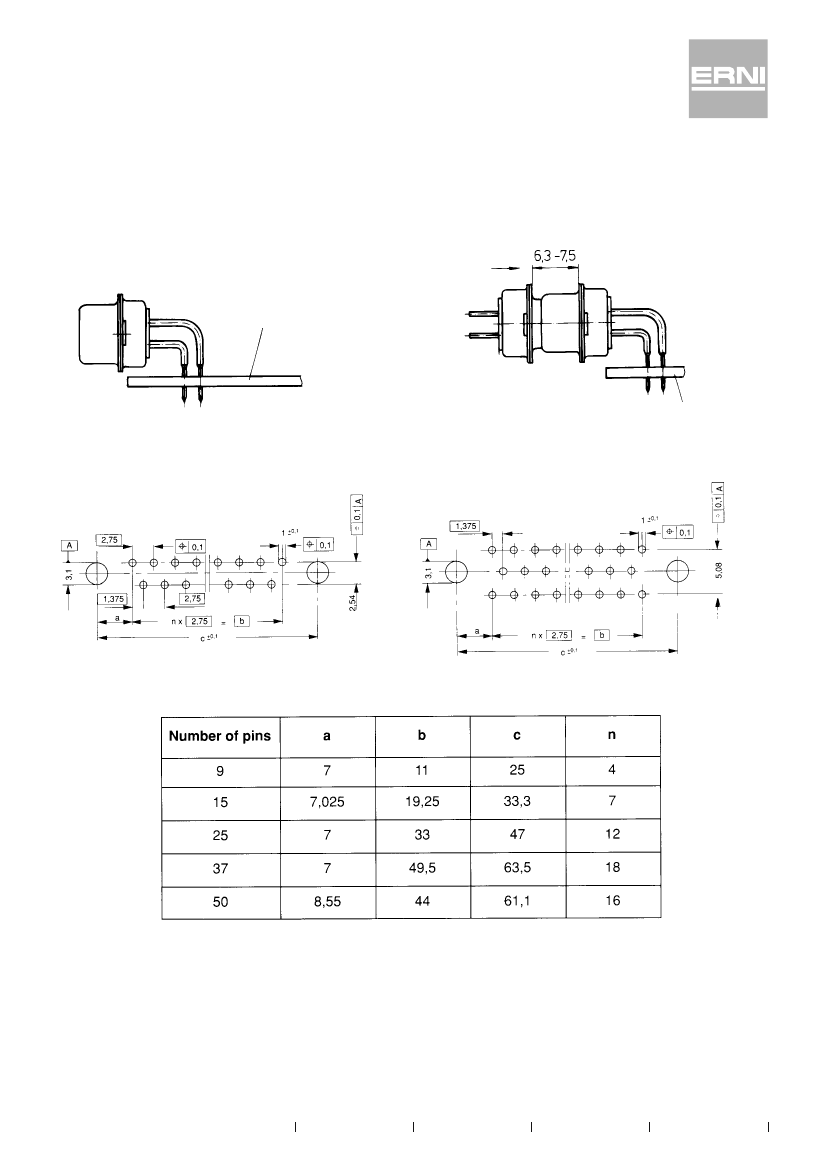

Dimensional drawings

Male connector

Female connector

D-Sub

Ordering details

023322

023323

023324

023325 023326*

013487

013525

013634

013714

013930

Integrated accessories are also available on request for TMC connectors with angled terminals without guide frame.

For assembly, an assembly comb is available on request.

Catalog E 074484

04/06

Edition 7

www.erni.com

545

013634 Related Products

	013634	013487	013714	013930	023325	023326
Description	D Subminiature Connector, 25 Contact(s), Female, Solder Terminal, Socket,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket,	D Subminiature Connector, 37 Contact(s), Female, Solder Terminal, Socket,	D Subminiature Connector, 50 Contact(s), Female, Solder Terminal, Socket,	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal,	D Subminiature Connector, 50 Contact(s), Male, Solder Terminal,
Maker	ERNI	ERNI	ERNI	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3	STANDARDS: MIL-C-24308; DIN 41652; IEC 807-3
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	3/B	1/E	4/C	5/D	4/C	5/D
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	25	9	37	50	37	50
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	-	-
