014184: DescriptionD Subminiature Connector, 50 Contact(s), Female, Crimp Terminal, Socket,; CategoryThe connector The connector; File Size195KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

014184 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	014184	-	-	View	Buy Now

014184 Overview

D Subminiature Connector, 50 Contact(s), Female, Crimp Terminal, Socket,

014184 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014237; 014240; 014234; 014236; 014239; 014233
body width	0.535 inch
subject depth	0.472 inch
body length	2.638 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	STAGGERED
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	2.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	CRIMP
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

A

H

+0,13

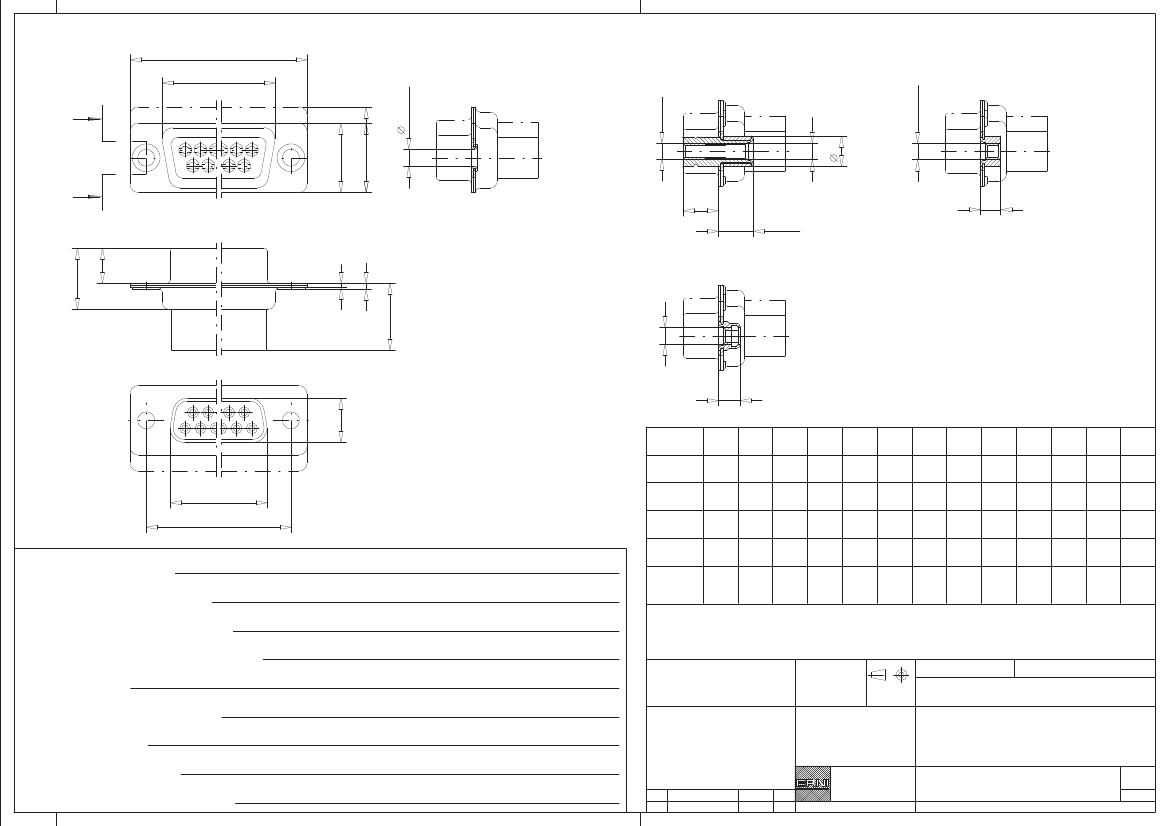

Schnitt A-A /

Gewindebolzen / Hülse

threaded bolt / sleeve :

#4-40

M3

3,05

cross section A-A

M3 oder/ or

Nietmutter /

#4-40

riveted nut :

A

E

J

A

5,5

6,4

6,3

-0,3

3,7

G

K

L

Nietmutter /

riveted nut :

F

12

M3

3,9

D

9

15

30.8

39.1

53.0

69.3

67.0

16.4

24.7

38.5

54.9

52.5

25.0

33.3

47.0

63.5

61.1

8.0

10.8

12.5

15.4

11.0

6.3

19.3

27.5

41.3

57.7

55.3

10.8

13.6

1.5

0.8

B

C

Ident-Nr. /

Polzahl /

Part No. :

Refer to table on page 2

CRIMP-SNAP IN

Refer to table on page 2

25

37

50

Polzahl/

No. of

contacts

A

±0.3

B

-0.2

C

±0.2

D

-0.2

E

±0.3

F

±0.2

G

-0.3

H

±0.3

J

±0.2

K

max.

L

±0.1

No. of contacts :

Terminal Type :

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Fehlende Masse und Angaben siehe DIN 41652 /

Sonstige Angaben siehe Fertigungsunterlagen /

Information:

Tolerances

Missing information and dimensions according to DIN 41652

Additional indications please see the production documentation

Scale

All Dimensions

in mm

Terminal Length :

1

Class :

ERNI 1

2:1

Consider protection memo from DIN 34

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

Refer to table on page 2

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-S 9 bis 50-CSI

TMC-S 9 to 50-CSI

www.ERNI.com

c

Index

27.04.1999

Date

M:00021176.SZN

Sonderausführung /

054872

TMCS

I

014184 Related Products

	014184	014176	014178
Description	D Subminiature Connector, 50 Contact(s), Female, Crimp Terminal, Socket,	D Subminiature Connector, 9 Contact(s), Female, Crimp; Solder Terminal, Socket,	D Subminiature Connector, 15 Contact(s), Female, Crimp Terminal, Socket,
Maker	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014237; 014240; 014234; 014236; 014239; 014233	STANDARD: DIN 41652; IEC 807-3	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014237; 014240; 014234; 014236; 014239; 014233
body width	0.535 inch	0.425 inch	0.425 inch
subject depth	0.472 inch	0.472 inch	0.472 inch
body length	2.638 inch	1.213 inch	1.539 inch
Body/casing type	SOCKET	SOCKET	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN	PREASSEM CONN	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact resistance	10 mΩ	10 mΩ	10 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	014177	014179
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Rated current (signal)	2.5 A	2.5 A	2.5 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Housing size	5/D	1/E	2/A
Termination type	CRIMP	CRIMP; SOLDER	CRIMP
Total number of contacts	50	9	15
UL Flammability Code	94V-0	94V-0	94V-0
Maximum wire diameter	20 AWG	20 AWG	20 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
maximum insertion force	-	3.336 N	3.336 N
Evacuation force-minimum value	-	.3614 N	.3058 N
