014185 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 014185

014185: DescriptionD Subminiature Connector, 50 Contact(s), Male, Crimp Terminal, Plug,; CategoryThe connector The connector; File Size48KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

014185 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	014185	-	-	View	Buy Now

014185 Overview

D Subminiature Connector, 50 Contact(s), Male, Crimp Terminal, Plug,

014185 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014246; 014249; 014243; 014245; 014248; 014242
body width	0.606 inch
subject depth	0.472 inch
body length	2.638 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Housing size	5/D
Termination type	CRIMP
Total number of contacts	50
UL Flammability Code	94V-0
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG

Preview

Download Datasheet

View All

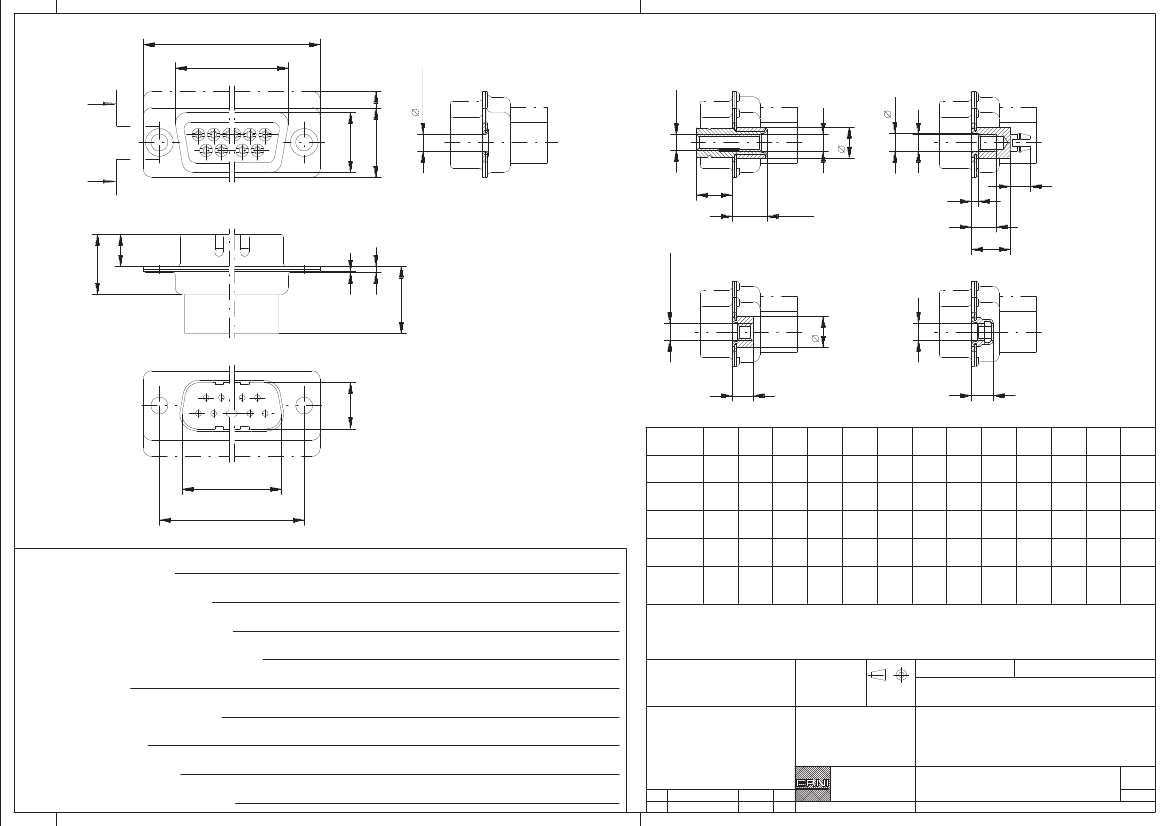

+0,13

Schnitt A-A /

Gewindebolzen / Hülse

threaded bolt / sleeve :

cross section A-A

Distanzbolzen /

spacer bolt :

#4-40

3,2

5,5

3,05

6,4

6,3

-0,3

3,5

1,3

4,4

M3 oder/ or

Nietmutter /

riveted nut :

#4-40

5,5

3,7

3,9

Zubehör /

Accessories :

Polzahl/

No. of

contacts

Gewindebolzen / threaded bolt

spacer bolt

Distanzbolzen /

Nietmutter /

riveted nut

Hülse / sleeve

30.8

39.1

53.0

69.3

67.0

16.8

25.1

38.9

55.3

52.7

25.0

33.3

47.0

63.5

61.1

8.3

11.0

12.5

15.4

10.8

5.8

19.3

27.5

41.3

57.7

55.3

10.8

13.6

1.5

0.8

0.9

Ident-Nr. /

Polzahl /

Part No. :

Refer to table on page 2

Crimp-Snap-in

±0.3

+0.2

±0.2

+0.2

±0.3

±0.2

+0.3

±0.3

±0.2

max.

±0.1

No. of contacts :

Terminal Type :

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Fehlende Masse und Angaben siehe DIN 41652 /

Sonstige Angaben siehe Fertigungsunterlagen /

Information:

Tolerances

Missing information and dimensions according to DIN 41652

Additional indications please see the production documentation

Scale

All Dimensions

in mm

Terminal Length :

Consider protection memo from DIN 34

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

Class :

ERNI

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-P 9 bis 50-CSI

TMC-P 9 to 50-CSI

Elektroapparate GmbH

D-73099 ADELBERG

M:00018242.SZN

Sonderausführung /

Index

24.02.1999

Date

054871

BMEZT

014185 Related Products

	014185	014181	014183
Description	D Subminiature Connector, 50 Contact(s), Male, Crimp Terminal, Plug,	D Subminiature Connector, 25 Contact(s), Male, Crimp Terminal, Hole .115-.125, Plug,	D Subminiature Connector, 37 Contact(s), Male, Crimp Terminal, Hole .115-.125, Plug,
Maker	ERNI	ERNI	ERNI
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014246; 014249; 014243; 014245; 014248; 014242	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014246; 014249; 014243; 014245; 014248; 014242	STANDARD: DIN 41652; IEC 807-3, COMPATIBLE CONTACTS: 014246; 014249; 014243; 014245; 014248; 014242
body width	0.606 inch	0.492 inch	0.492 inch
subject depth	0.472 inch	0.472 inch	0.472 inch
body length	2.638 inch	2.087 inch	2.728 inch
Body/casing type	PLUG	PLUG	PLUG
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	MALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
MIL compliance	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	014180	014182
Mixed contacts	NO	NO	NO
Installation type	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL
Housing size	5/D	3/B	4/C
Termination type	CRIMP	CRIMP	CRIMP
Total number of contacts	50	25	37
UL Flammability Code	94V-0	94V-0	94V-0
Maximum wire diameter	20 AWG	20 AWG	20 AWG
Minimum wire diameter	28 AWG	28 AWG	28 AWG
Is it lead-free?	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to
Contactor design	-	PREASSEM CONN	PREASSEM CONN
Contact material	-	NOT SPECIFIED	NOT SPECIFIED
Contact resistance	-	10 mΩ	10 mΩ
Dielectric withstand voltage	-	1400VAC V	1400VAC V
maximum insertion force	-	3.336 N	3.336 N
Insulation resistance	-	5000000000 Ω	5000000000 Ω
Installation option 1	-	HOLE .115-.125	HOLE .115-.125
Installation option 2	-	LOCKING	LOCKING
Maximum operating temperature	-	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C
Rated current (signal)	-	4.4 A	3.9 A
Evacuation force-minimum value	-	.3614 N	.3614 N
