024731 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 024731

Preview

024731: DescriptionD Subminiature Connector, 15 Contact(s), Male, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size42KB，2 Pages; ManufacturerERNI; Websitehttp://www.erni.com

Download Datasheet Parametric Compare View All

024731 Overview

D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, #4-40, Receptacle,

024731 Parametric

Parameter Name	Attribute value
Maker	ERNI
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3
body width	0.492 inch
subject depth	0.216 inch
body length	1.539 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	YES
empty shell	NO
Filter function	NO
IEC compliance	YES
MIL compliance	NO
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	2
Options	GENERAL PURPOSE
Plating thickness	30u inch
Guideline	UL
reliability	COMMERCIAL
Shell material	METAL
Housing size	2/A
Terminal length	0.236 inch
Termination type	SOLDER
Total number of contacts	15

Preview

Download Datasheet

View All

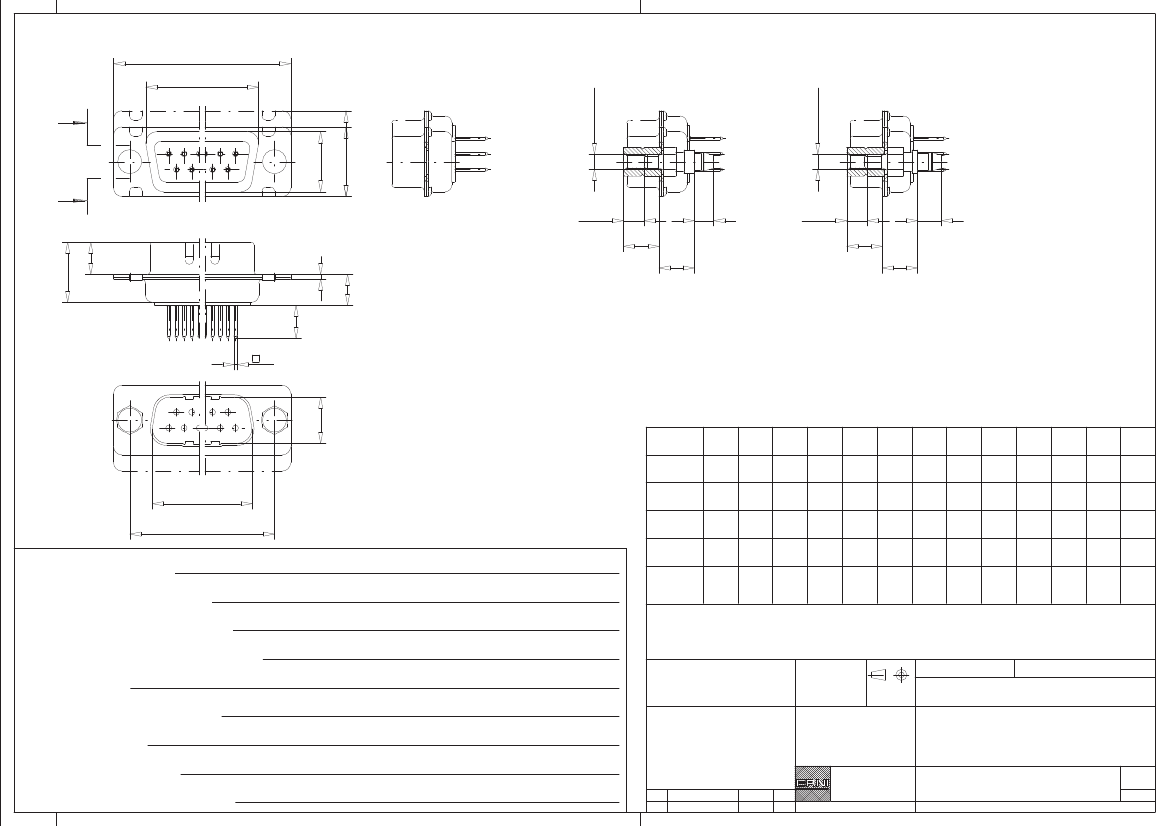

Schnitt A-A /

A

H

M3 oder /

or #-40

LP 1.5 /

PCB 1.5

cross section A-A

LP 2.4 /

PCB 2.4

l = 5.6 / 6.3

M3 oder /

3,5

6,4

(5.9)

l

A

min. 3

( min. 2.5 )

min. 3

( min. 2.5 )

6,4

(5.9)

6,3

4,3

G

F

L

0,6

a : Anschlusslänge beliebig von 3 bis 6 mm; Toleranz

±0.3

a

5,5

E

J

D

Zubehör /

Accessories :

threaded bolt

threaded sleeve

a : terminal length from 3 to 6 mm; tolerance

±0.3

Gewindebolzen /

Gewindehülse /

9

15

30.8

39.1

53.0

69.3

67.0

16.8

25.1

38.9

55.3

52.7

25.0

33.3

47.0

63.5

61.1

8.3

11.0

or #-40

12.5

15.4

10.8

5.8

19.3

27.5

41.3

57.7

55.3

10.8

13.6

0.8

0.9

B

C

Ident-Nr. /

Polzahl /

Part No. :

Refer to table on page 2

Straight solder

6.0 mm

Schichtaufbau im metallisierten Loch

für Gewindebolzen siehe Zeichnung 114303

diamteter of drilled hole

for threaded bolt see drawing 114303

25

37

50

Polzahl/

No. of

contacts

A

±0.3

B

+0.2

C

±0.2

D

+0.2

E

±0.3

F

±0.2

G

+0.3

H

±0.3

J

±0.2

L

±0.1

No. of contacts :

Terminal Type :

Anschlußart /

Anschlußlänge /

Bauart /

Type :

Fehlende Masse und Angaben siehe DIN 41652 /

Sonstige Angaben siehe Fertigungsunterlagen /

Information:

Tolerances

Missing information and dimensions according to DIN 41652

Additional indications please see the production documentation

Scale

All Dimensions

in mm

Terminal Length :

7

2:1

Consider protection memo from DIN 34

Anforderungsstufe /

Aufdruck /

Zubehör /

Logo :

Class :

ERNI

207=0.8µm (30

µin)

Au CONTACT, TIN/LEAD TERMINAL

Accessory :

Refer to table on page 2

Special :

Refer to table on page 2

Only for information.

To insure that this is the latest

version of this drawing, please

contact one of the ERNI companies

before using.

Subject to modification without

prior notice.

Drawing will not be updated.

Designation

TMC-P 9 bis 50-TL-3.0 bis 6.0

TMC-P 9 to 50-TL-3.0 to 6.0

Elektroapparate GmbH

D-73099 ADELBERG

M:00017824.SZN

Sonderausführung /

a

Index

03.02.2000

Date

054960

TMCP

I

024731 Related Products

	024731	053043	WF10T2183BTL	053044	024732	024733
Description	D Subminiature Connector, 15 Contact(s), Male, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, M3, Receptacle,	Fixed Resistor, Thin Film, 0.25W, 218000ohm, 200V, 0.1% +/-Tol, 50ppm/Cel, Surface Mount, 1210, CHIP, LEAD FREE	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, M3, Receptacle,	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 37 Contact(s), Male, Solder Terminal, #4-40, Receptacle,
Reach Compliance Code	compliant	compli	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	HIGH PRECISION, LASER TRIMMABLE	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3	STANDARDS: DIN 41652; IEC 807-3
Maker	ERNI	-	-	ERNI	ERNI	ERNI
body width	0.492 inch	0.492 inch	-	0.492 inch	0.492 inch	0.492 inch
subject depth	0.216 inch	0.216 inch	-	0.216 inch	0.216 inch	0.216 inch
body length	1.539 inch	2.087 inch	-	2.728 inch	2.087 inch	2.728 inch
Body/casing type	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	-	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	AU	-	AU	AU	AU
Contact point gender	MALE	MALE	-	MALE	MALE	MALE
contact mode	STAGGERED	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED
Contact style	RND PIN-SKT	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	YES	YES	-	YES	YES	YES
empty shell	NO	NO	-	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO
IEC compliance	YES	YES	-	YES	YES	YES
MIL compliance	NO	NO	-	NO	NO	NO
Mixed contacts	NO	NO	-	NO	NO	NO
Installation option 1	#4-40	M3	-	M3	#4-40	#4-40
Installation option 2	THREADED	THREADED	-	THREADED	THREADED	THREADED
Installation method	STRAIGHT	STRAIGHT	-	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	-	BOARD	BOARD	BOARD
PCB row number	3	3	-	3	3	3
Number of rows loaded	2	2	-	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Plating thickness	30u inch	30u inch	-	30u inch	30u inch	30u inch
Guideline	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	METAL	METAL	-	METAL	METAL	METAL
Housing size	2/A	3/B	-	4/C	3/B	4/C
Terminal length	0.236 inch	0.236 inch	-	0.236 inch	0.236 inch	0.236 inch
Termination type	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	15	25	-	37	25	37
Contact completed and terminated	-	TIN/LEAD	-	TIN/LEAD	TIN/LEAD	TIN/LEAD
