50.000MHZMJ/5/15/-40+90/18PF/50R datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> 50.000MHZMJ/5/15/-40+90/18PF/50R

50.000MHZMJ/5/15/-40+90/18PF/50R: DescriptionParallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size141KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

50.000MHZMJ/5/15/-40+90/18PF/50R Overview

Parallel - Fundamental Quartz Crystal, 50MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, SMD, 4 PIN

50.000MHZMJ/5/15/-40+90/18PF/50R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	ROHS COMPLIANT, HERMETIC SEALED, MINIATURE, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.0015%
frequency tolerance	5 ppm
load capacitance	18 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	50 MHz
Maximum operating temperature	90 °C
Minimum operating temperature	-40 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	50 Ω
surface mount	YES

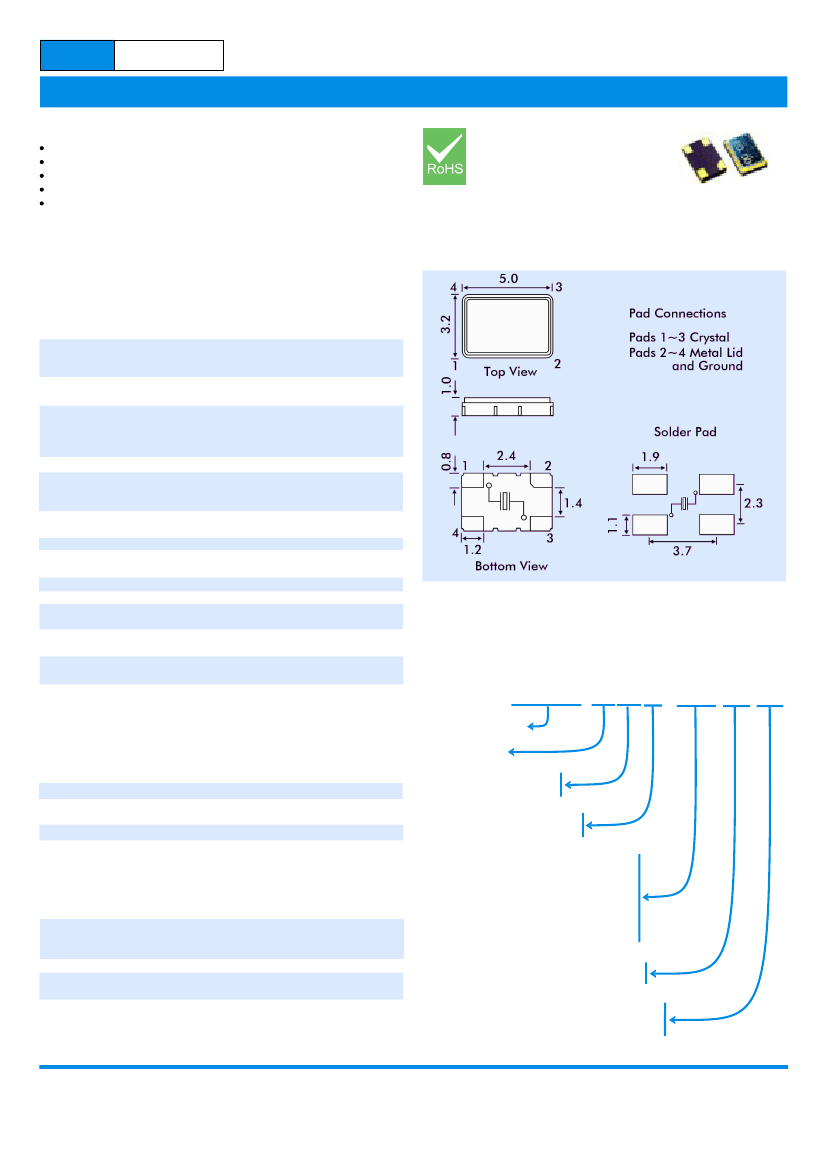

50.000MHZMJ/5/15/-40+90/18PF/50R Preview

EURO

QUARTZ

5 x 3.2 x 0.9mm SMD

FEATURES

Miniature size: 5.0mm x 3.2mm x 1.0mm height

Gold-plated ceramic base with metal seam-welded lid

To minimize EMI the whole crystal may be grounded

High shock and vibration resistance

Ideal for PDAs, GPS, PCMCIA, Wirless LAN etc.

DESCRIPTION

MJ crystals are miniature surface-mount crystals produced with a

ceramic substrate and seam-welded metal lid. Their compact size and

low mass make hem an ideal crystal for high-density applications.

SPECIFICATION

Frequency Range:

AT-Cut Fundamental:

AT-Cut 3rd Overtone:

Calibration Tolerance at 25ºC:

OUTLINE & DIMENSIONS

MJ CRYSTALS

7.0MHz to 125MHz

7.0MHz to 50.0MHz

40.0MHz to 125.0MHz

from ±5ppm

(±10, ±20 or ±30ppm standard)

Frequency stability

-10° to +60°C

from ±5ppm

-20° to +70°C

from ±10ppm

-40° to +90°C

from ±15ppm

Storage Temperature:

-50°~+105°C

Effective Series Resistance and Mode

7.0MHz to 50.0MHz:

50Ω max., AT-Cut Fundamental

40.0MHz to 125.0MHz:

80Ω max., AT-Cut 3rd Overtone

Operating Temperature Range:

from 0° ~ +50°C

to -55° ~ +105°

Shunt Capacitance (C0):

2pF to 4pF typical, 5pF maximum

Load Capacitance (CL):

Series or from 10pF to 32pF

(Customer

specified CL)

Ageing:

<±3ppm per year at +25°C

Drive level:

100

maximum

Reflow Soldering:

10s maximum at 260°C twice

or 180s at 230°C, once.

Package:

Ceramic base, metal (Kovar) lid,

Hermetic seal

Packaging:

12mm EIA tape and reel

1000 pieces per reel

PART NUMBER GENERATION

Part numbers for MJ crystals are generated as follows:

Example:

12.000MHz MJ/20/30/-10+60/18pF/60R

Nominal Frequency

Package MJ

ENVIRONMENTAL SPECIFICATION

RoHS Status:

Gross Leak:

Fine Leak:

Shock:

Compliant

1kg pressurized water immersion

test as per Euroquartz procedures.

<5x10

-8

atm cc/s -helium leak test

±5ppm max. Free drop 3 times

from 75cm height onto a hard

wooden board or half sine wave

acceleration of 100g peak

amplitude for 11 ms duration, 3

cycles each plane.

±5ppm max., frequency 10 to

55Hz, amplitude 1.5mm or

10g rms. Duration 6 hours.

MIL-STD-883, Method 2003

48 hours at 85°C, relative

humidity, non-condensing

Temperature cycling: Exposed to

-40°C for 30 minutes then to

+85°C for 30 minutes,

- duration 5 days.

Calibration Tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

(Lower and upper limits)

Common ranges: -10° ~ +60°C

-20° ~ +70°C

-40° ~ +85°C

(Or custom temp. range -

check with Euroquartz sales)

Load Capacitance

(Either SR for series or CL in pF)

Equivalent Series Resistance

(Optional - include when

special value is required)

Vibration:

Solderability:

Humidity:

Thermal Shock:

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
