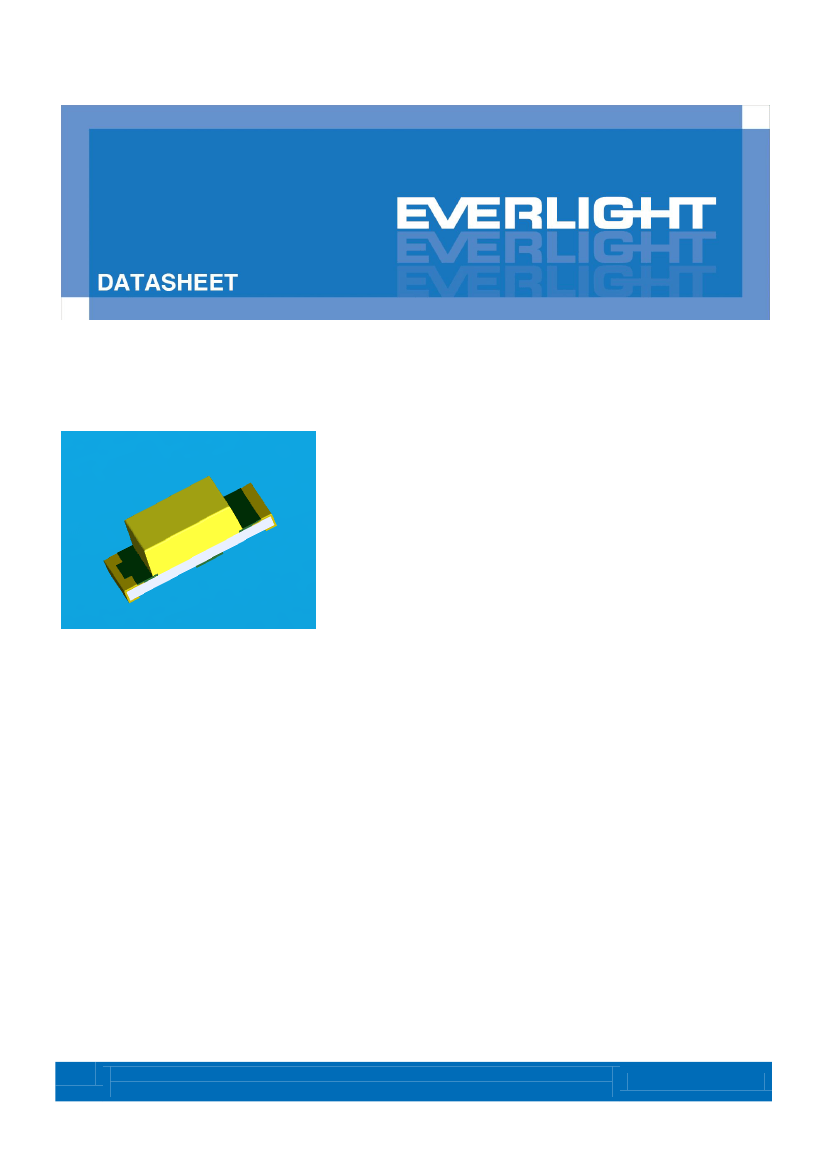

SMD
B
19-217/W1D-AQRHY/3T
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Description
․The
19-217 SMD LED is much smaller than lead frame type components, thus enable smaller board size, higher
packing density, reduced storage space and finally smaller equipment to be obtained.
․Besides,
lightweight makes them ideal for miniature applications. etc.
Applications
․Telecommunication:
indicator and backlighting in telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
1
Copyright © 2010,Everlight All RightsReserved.ReleaseDate:18 Nov 2013. Issue No: DSE-0002889
Rev.2
www.everlight.com
DATASHEET
SMD
B
19-217/W1D-AQRHY/3T
Device Selection Guide
Chip
Emitted Color
Materials
InGaN
Pure White
Yellow Diffused
Resin Color
Absolute Maximum Ratings (Ta=25℃)
Parameter
Symbol
Rating
Unit
Reverse Voltage
Forward Current
eak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
V
R
I
F
I
FP
Pd
ESD
HBM
T
opr
Tstg
Tsol
5
10
100
40
150
-40 ~ +85
-40 ~ +90
V
mA
mA
mW
V
℃
℃
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
Reflow Soldering : 260
℃
for 10 sec.
Hand Soldering : 350
℃
for 3 sec.
2
Copyright © 2010, EverlightAllRightsReserved.ReleaseDate :18Nov 2013. Issue No: DSE-0002889
Rev.2
www.everlight.com
DATASHEET
SMD
B
19-217/W1D-AQRHY/3T
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous
Intensity
Viewing Angle
Forward
Voltage
Reverse
Current
Symbol
Iv
2θ
1/2
V
F
I
R
Min.
72.0
-----
2.70
-----
Typ.
-----
130
Max.
180.0
-----
Unit
mcd
deg
V
μA
V
R
=5V
I
F
=5mA
Condition
-----
-----
3.15
50
Note:
1.Tolerance of Luminous Intensity: ±11%
2. Tolerance of Forward Voltage: ±0.1V
3
Copyright © 2010, EverlightAllRightsReserved.ReleaseDate :18Nov 2013. Issue No: DSE-0002889
Rev.2
www.everlight.com
DATASHEET
SMD
B
19-217/W1D-AQRHY/3T
Bin Range of Luminous Intensity
Bin Code
Q
R
Min.
72.0
112
Max.
112
180
mcd
I
F
=5mA
Unit
Condition
Bin Range Of
Bin Code
15
16
17
Forward
Voltage
Min.
2.70
2.85
3.00
Max.
2.85
3.00
3.15
V
I
F
=5mA
Unit
Condition
Note:
1. Tolerance of Luminous Intensity: ±11%
2. Tolerance of Forward Voltage: ±0.1V
4
Copyright © 2010, EverlightAllRightsReserved.ReleaseDate :18Nov 2013. Issue No: DSE-0002889
Rev.2
www.everlight.com
DATASHEET
SMD
B
19-217/W1D-AQRHY/3T
Chromaticity Coordinates Specifications for Bin Grading
Bin Code
CIE_x
0.274
0.274
1
0.294
0.294
0.274
0.274
2
0.294
0.294
0.294
0.294
3
0.314
0.314
0.294
0.294
4
0.314
0.314
0.314
0.314
5
0.334
0.334
0.314
0.314
6
0.334
0.334
0.376
0.343
0.343
0.311
0.315
0.347
0.347
0.315
0.282
0.315
0.315
0.282
0.286
0.319
I
F
=5mA
0.319
0.286
0.254
0.286
0.286
0.254
0.258
0.291
CIE_y
0.226
0.258
Condition
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01
).
2.The products are sensitive to static electricity and care must be fully taken when
handling products.
5
Copyright © 2010, EverlightAllRightsReserved.ReleaseDate :18Nov 2013. Issue No: DSE-0002889
Rev.2
www.everlight.com
