Part Number

Search

5962-01-062-3556

Description
NOR Gate, TTL, CDFP14,
Categorylogic    logic
File Size180KB,5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric Compare View All

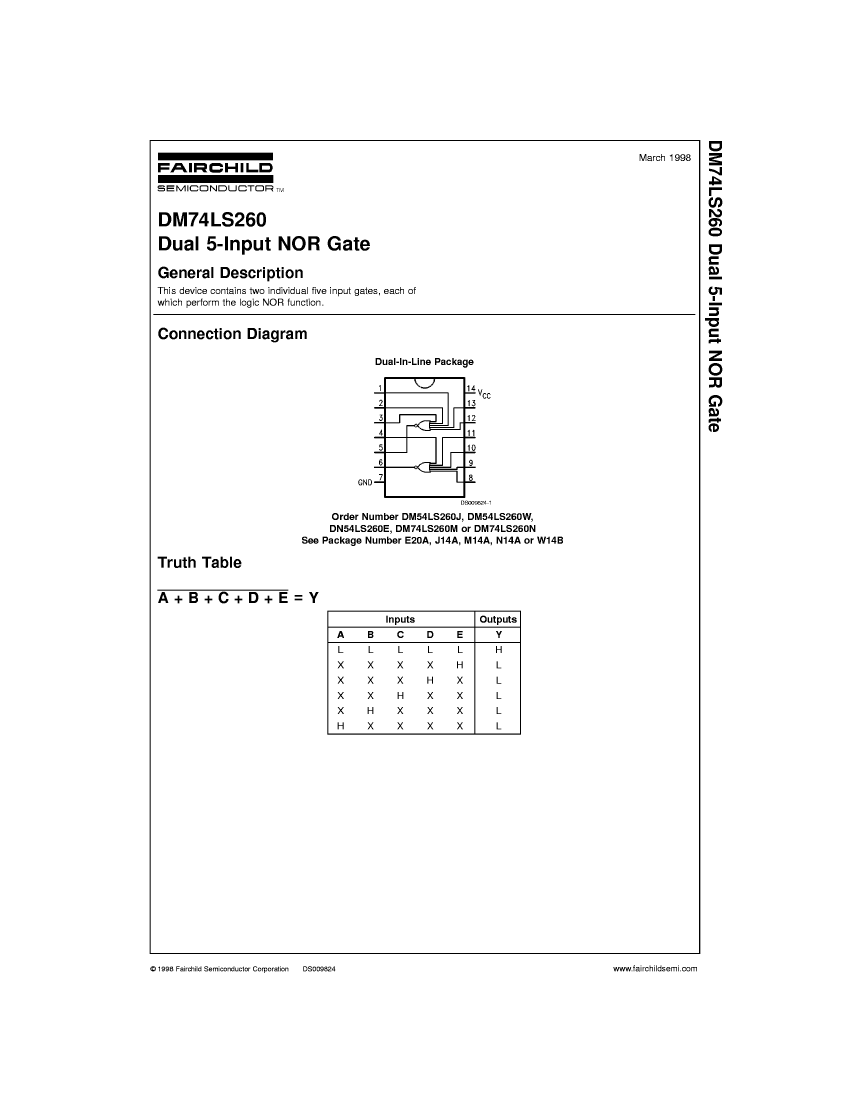

5962-01-062-3556 Overview

NOR Gate, TTL, CDFP14,

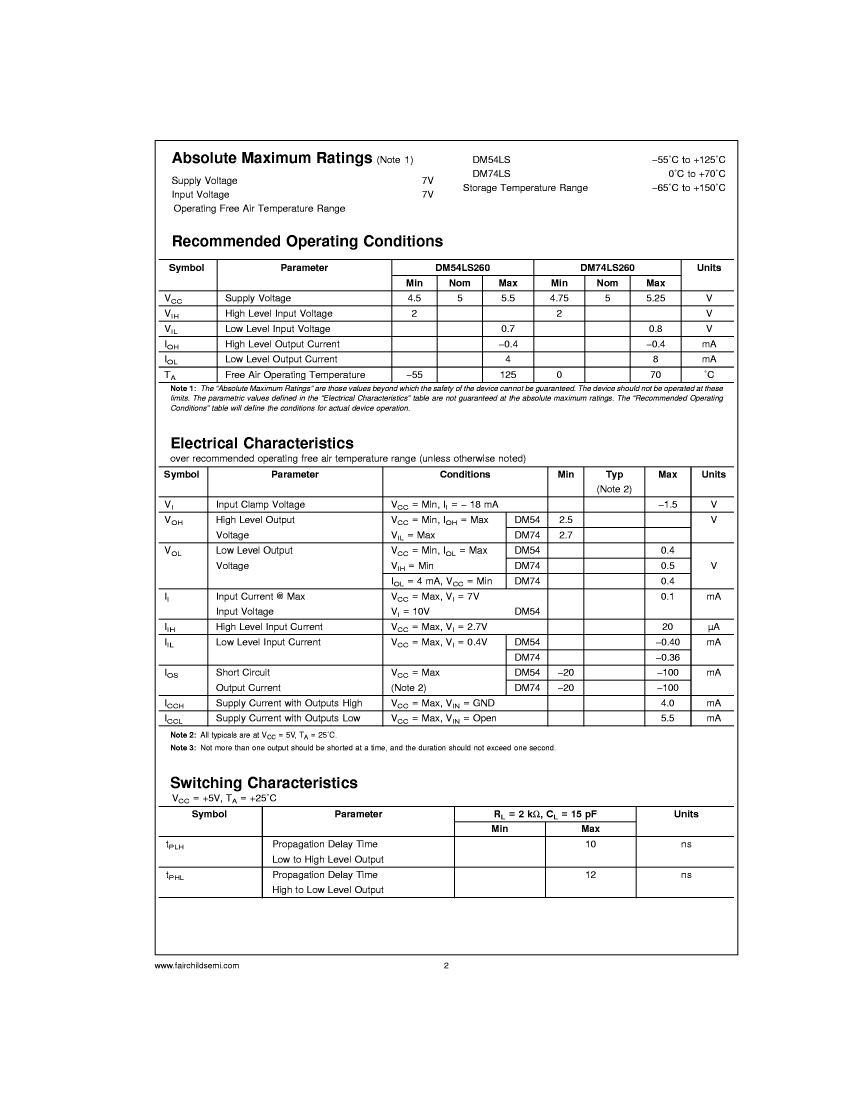

5962-01-062-3556 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerFairchild
package instructionDFP, FL14,.3
Reach Compliance Codecompliant
JESD-30 codeR-XDFP-F14
Logic integrated circuit typeNOR GATE
Humidity sensitivity level2A
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C

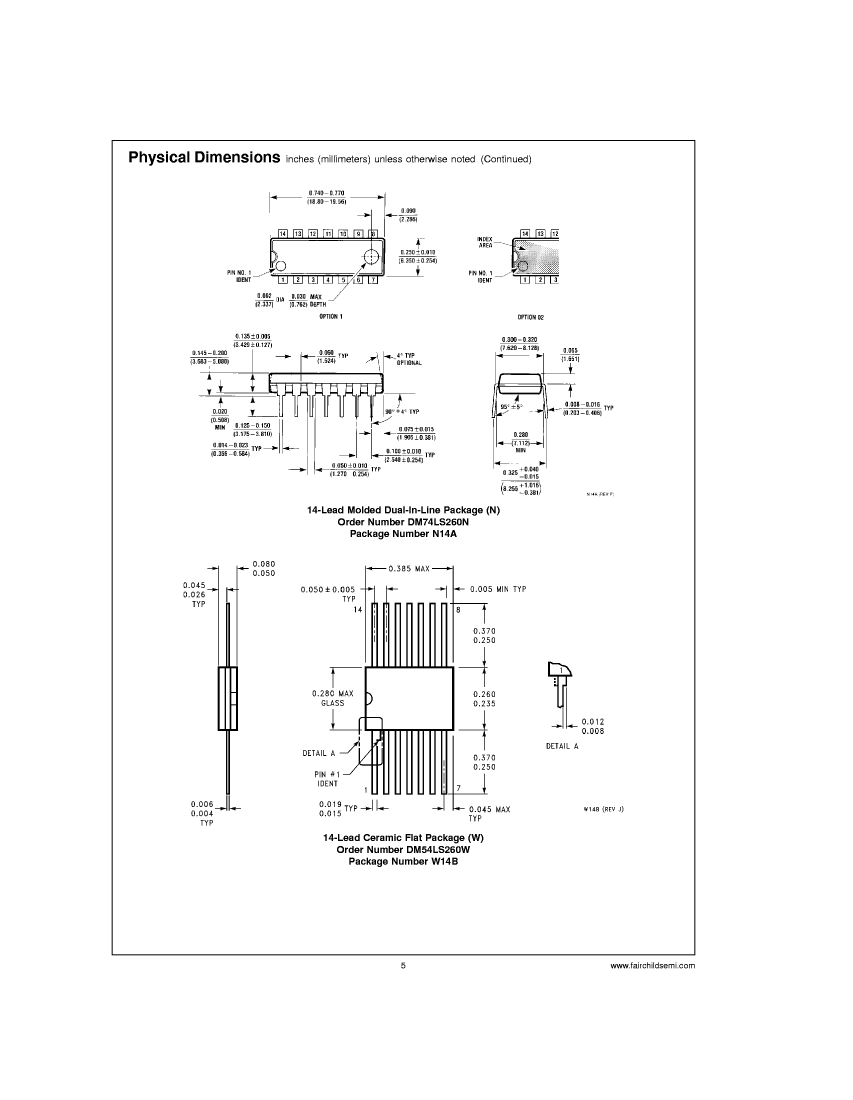

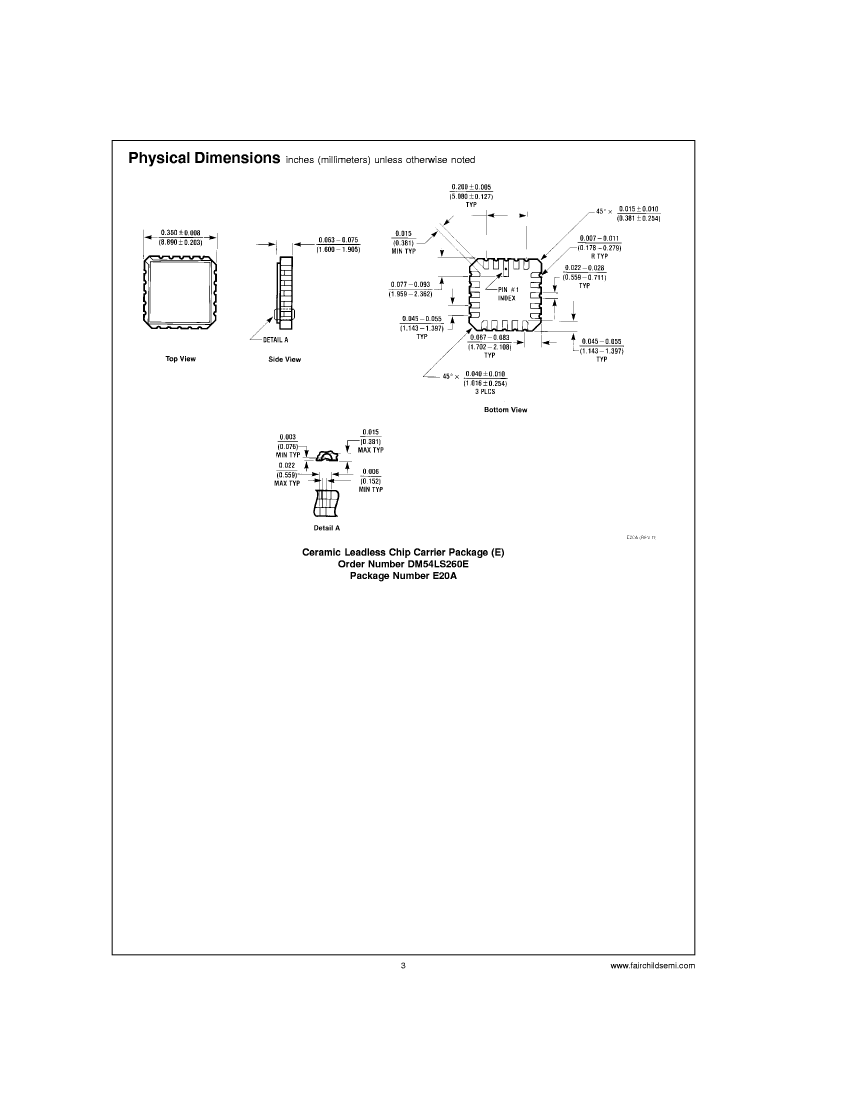

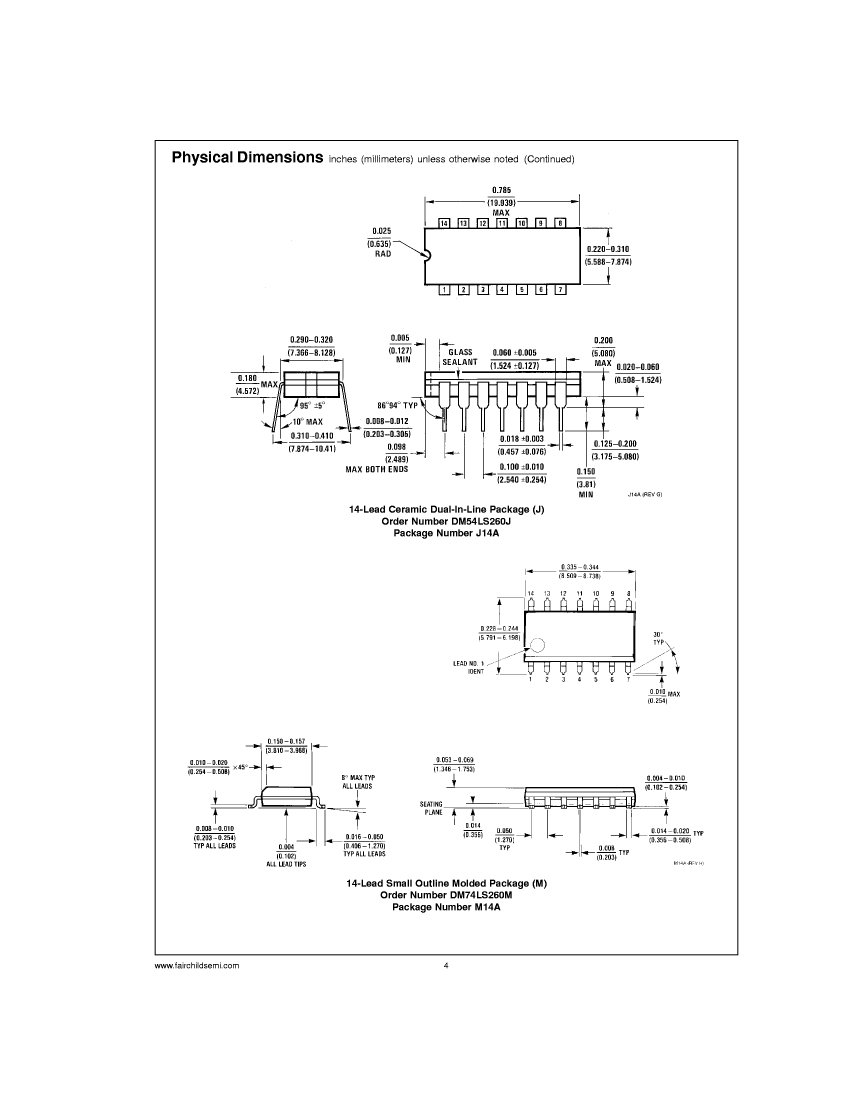

Package body materialCERAMIC
encapsulated codeDFP
Encapsulate equivalent codeFL14,.3
Package shapeRECTANGULAR
Package formFLATPACK
Peak Reflow Temperature (Celsius)250
power supply5 V
Certification statusNot Qualified
Schmitt triggerNO
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30

5962-01-062-3556 Related Products

5962-01-062-3556 54LS260L1MQB 54LS260FMQB 54LS260DMQB 74LS260PCQR 74LS260PCQM 74LS260DCQR 74LS260FCQM 74LS260FCQR
Description NOR Gate, TTL, CDFP14, NOR Gate, TTL, CQCC20, NOR Gate, TTL, CDFP14, NOR Gate, TTL, CDIP14, NOR Gate, TTL, PDIP14, NOR Gate, TTL, PDIP14, NOR Gate, TTL, CDIP14, NOR Gate, TTL, CDFP14, NOR Gate, TTL, CDFP14,
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Maker Fairchild Fairchild Fairchild Fairchild Fairchild Fairchild Fairchild Fairchild Fairchild
Reach Compliance Code compliant compliant compliant unknown compliant compliant compliant compliant compliant
JESD-30 code R-XDFP-F14 S-XQCC-N20 R-XDFP-F14 R-XDIP-T14 R-PDIP-T14 R-PDIP-T14 R-XDIP-T14 R-XDFP-F14 R-XDFP-F14
Logic integrated circuit type NOR GATE NOR GATE NOR GATE NOR GATE NOR GATE NOR GATE NOR GATE NOR GATE NOR GATE
Number of terminals 14 20 14 14 14 14 14 14 14
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 70 °C 70 °C 70 °C 70 °C 70 °C
Package body material CERAMIC CERAMIC CERAMIC CERAMIC PLASTIC/EPOXY PLASTIC/EPOXY CERAMIC CERAMIC CERAMIC
encapsulated code DFP QCCN DFP DIP DIP DIP DIP DFP DFP
Encapsulate equivalent code FL14,.3 LCC20,.35SQ FL14,.3 DIP14,.3 DIP14,.3 DIP14,.3 DIP14,.3 FL14,.3 FL14,.3
Package shape RECTANGULAR SQUARE RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLATPACK CHIP CARRIER FLATPACK IN-LINE IN-LINE IN-LINE IN-LINE FLATPACK FLATPACK
power supply 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Schmitt trigger NO NO NO NO NO NO NO NO NO
Nominal supply voltage (Vsup) 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
surface mount YES YES YES NO NO NO NO YES YES
technology TTL TTL TTL TTL TTL TTL TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY MILITARY COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal form FLAT NO LEAD FLAT THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE THROUGH-HOLE FLAT FLAT
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL QUAD DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Is it lead-free? Contains lead Contains lead - - Contains lead Contains lead Contains lead Contains lead Contains lead
package instruction DFP, FL14,.3 QCCN, LCC20,.35SQ - - DIP, DIP14,.3 DIP, DIP14,.3 DIP, DIP14,.3 DFP, FL14,.3 DFP, FL14,.3
Humidity sensitivity level 2A 2A - - 2A 2A 2A 2A 2A
Peak Reflow Temperature (Celsius) 250 250 - - 250 250 250 250 250
Certification status Not Qualified Not Qualified Not Qualified Not Qualified - Not Qualified - Not Qualified -
Maximum time at peak reflow temperature 30 30 - - 30 30 30 30 30
JESD-609 code - e0 e0 e0 e0 e0 e0 e0 e0
Terminal surface - Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
