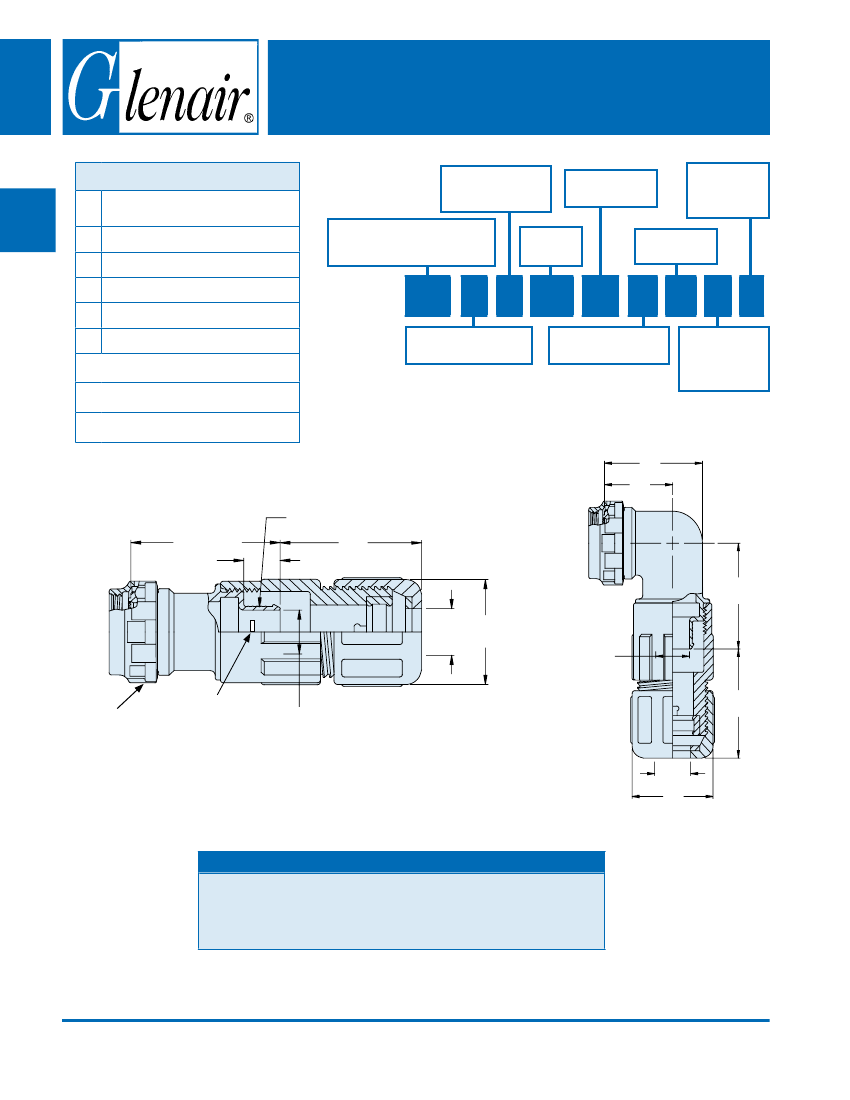

Band-in-a-Can Backshell with Qwik-Clamp Strain-Relief
and Self-Locking Rotatable Coupling
CONNECTOR DESIGNATOR:
Angle and Profile
S
- Straight
W
- 90° Elbow
Product Series
447
- EMI/RFI Non-Environmental
Banding Backshells
Slot Option
S
- Pigtail
Termin. Slot
(Omit
for none)
447-330
Composite Non-Environmental EMI/RFI
Composite
Backshells
Finish Symbol
(See
Table III)
A
A
F
L
H
G
U
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series 1.5 (JN1003)
MIL-DTL-38999 Series III and IV
MIL-DTL-28840
DG123 and DG123A
Basic Part
Number
Cable Entry
(See
Table IV)
447
H
S
330
XM
19 28
K
S
B
SELF-LOCKING
ROTATABLE COUPLING
STANDARD PROFILE
Connector Designator
A, F, L, H, G and U
Connector Shell Size
(See
Table II)
Band Option
Band supplied
with
K
option
(Omit
for none)
C
1.63
(41.4)
Accommodates 600-052-1 Band
J
.44 (11.2) Typ.
F
E
D
Pigtail
Termination
Entry Diameter
Slot
G
Cable
Range
H
Entry
Diameter
J
E
Anti-Decoupling
Device
US PATENT 5211576
Cable
Range
H
F
1.
2.
3.
NOTES
Metric dimensions (mm) are in parenthesis and are for reference only.
Coupling nut supplied unplated.
See Table I in Intro for front-end dimensional details.
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-82
Band-in-a-Can Backshell with Qwik-Clamp Strain-Relief
and Self-Locking Rotatable Coupling
TABLE II: CONNECTOR SHELL SIZE
E
(1.5)
(17.5)
(19.1)
(20.6)
(22.4)
(23.9)
(24.6)
(26.9)
(28.7)
(30.2)
(34.0)
± .09
.88
1.00
1.13
1.31
1.38
1.44
1.63
1.75
1.88
2.13
F
(2.3) ± .09
(22.4) 1.19
(25.4) 1.25
(28.7) 1.31
(33.3) 1.38
(35.1) 1.44
(36.6) 1.47
(41.4) 1.56
(44.5) 1.63
(47.8) 1.69
(54.1) 1.78
G
(2.3)
(30.2)
(31.8)
(33.3)
(35.1)
(36.6)
(37.3)
(39.6)
(41.4)
(42.9)
(45.2)
Max Entry
Dash No**
08
12
16
20
24
28
32
36
40
44
Shell Size For
Connector Designator*
A F/L H G U ± .06
08 08 09 – –
.69
10 10 11 – 08
.75
12 12 13 11 10
.81
14 14 15 13 12
.88
16 16 17 15 14
.94
18 18 19 17 16
.97
20 20 21 19 18 1.06
22 22 23 – 20 1.13
24 24 25 23 22 1.19
28 – – 25 24 1.34
**Consult factory for additional entry sizes available.
TABLE III: FINISH
Symbol
XM
XMT
XW
Finish Description
2000 Hour Corrosion Resistant Electroless Nickel
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
2000 Hour Corrosion Resistant Cadmium/Olive Drab
over Electroless Nickel
TABLE IV: CABLE ENTRY
Entry Dia.
Entry
H
J
Cable Range
Code ±.06 (1.5) ±.06 (1.5) ±.03 (0.8) Minimum Maximum
.72 (18.3)
.97 (24.6)
.25 (6.4) .10 (2.5) .25 (6.4)
08
.38 (9.7) .20 (5.1) .38 (9.7)
12
.91 (23.1) 1.11 (28.2)
.50 (12.7) .33 (8.4) .50 (12.7)
16
1.09 (27.7) 1.21 (30.7)
1.22 (31.0) 1.21 (30.7)
.63 (15.9) .45 (11.4) .63 (15.9)
20
.75 (19.1) .52 (13.2) .75 (19.1)
24
1.34 (34.0) 1.21 (30.7)
.88 (22.2) .64 (16.3) .88 (22.2)
28
1.53 (38.9) 1.36 (34.5)
1.72 (43.7) 1.51 (38.4) 1.00 (25.4) .77 (19.6) 1.00 (25.4)
32
36
1.85 (47.0) 1.51 (38.4) 1.13 (28.6) .86 (21.8) 1.13 (28.6)
40
1.97 (50.0) 1.51 (38.4) 1.25 (31.8) .98 (24.9) 1.25 (31.8)
44
2.09 (53.1) 1.63 (41.4) 1.38 (35.1) 1.13 (28.6) 1.38 (35.1)
* Entry diameter equals maximum wire bundle diameter.
** Cable range equals cable outer diameter.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-83
