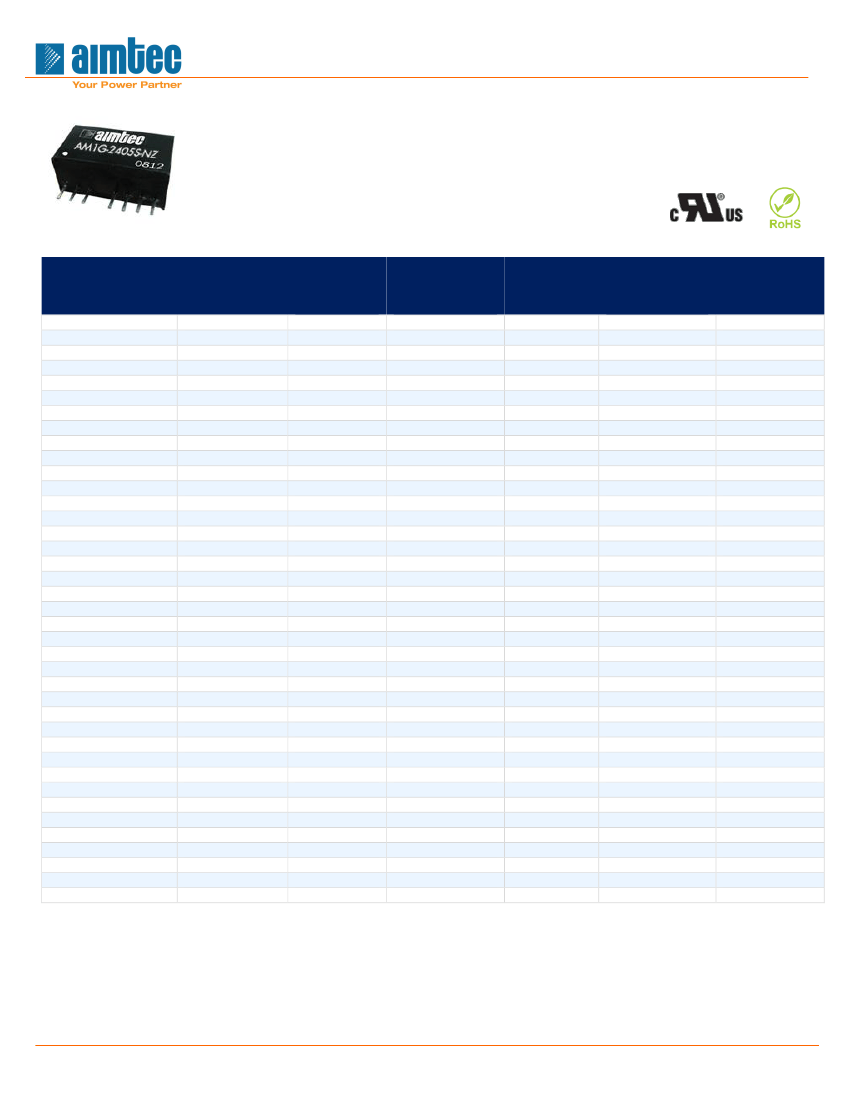

DC/DC Converter; Product Weight (grams): 4.9; Input voltage min (V): 36; Input voltage max (V): 75; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 1; Max Output current (A): 0.083; Efficiency (%): 81; Max Capacitive load (µF): 1000; Package type: SIP8; Mounting: PCB; W (in): 0.37; L (in): 0.87; H (in): 0.47; W (mm): 9.5; L (mm): 22; H (mm): 12; Min Operating temperature: -40; Max operating temperature (°C): 100; Isolation (VDC): 3000; EMC compliance 2: EN 55032 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 90; Switching Frequency typ (KHz): 200; Short circuit protection: Continuous; On/Off Control: 1
DC/DC Converter; Product Weight (grams): 4.9; Input voltage min (V): 36; Input voltage max (V): 75; Output voltage min: 12; Output voltage max: 12; Output voltage dual assymetric (y/n): Single; Output Power (W): 1; Max Output current (A): 0.083; Efficiency (%): 81; Max Capacitive load (µF): 1000; Package type: SIP8; Mounting: PCB; W (in): 0.37; L (in): 0.87; H (in): 0.47; W (mm): 9.5; L (mm): 22; H (mm): 12; Min Operating temperature: -40; Max operating temperature (°C): 100; Isolation (VDC): 3000; EMC compliance 2: EN 55032 Class B; Case material: Plastic (flammability to UL 94V-0) ; Application 4 (building automation/IoT): 1; Application 5 (Industrial): 1; MTBF (h): 1000000; Derating : 85; Voltage Accuracy (%): ±2; Line Regulation (% of Vin): ±0.5; Load Regulation %: ±0.5; Ripple & Noise (mV p-p): 90; Switching Frequency typ (KHz): 200; Short circuit protection: Continuous; On/Off Control: 1
NOTE: All specifications in this datasheet are measured at an ambient temperature of 25°C, humidity<75%, nominal input voltage and at rated output load
unless otherwise specified.
Safety Specifications
Parameters
Agency approvals
Standards
cULus
Information technology Equipment
UL 60950-1 (AM1G-0505S-NZ only)
Derating
Free Air Convection
85º C
100
Output Power (%)
80
Safe Operating Area
60
40
20
0
- 40
- 20
0
20
40
60
80
85
100
105
Ambient Temperature
º C
www.aimtec.com
F 051e R8.B
Tel: +1 514 620 2722
3 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM1G-NZ
1 Watt | DC-DC Converter
Pin Out Specifications
Pin
1
2
3
5
6
7
8
Dimensions
Dual
22.00
(0.87)
PRINTED
FACE
12.00
(0.47)
9.50
(0.37)
Single
- V Input
+ V Input
On/Off Control
N.C.
+ V Output
- V Output
CS
- V Input
+ V Input
On/Off Control
N.C.
+ V Output
Common
- V Output
12.00
(0.47)
0.50
(0.02)
4.10
(0.16)
2.54
(0.10)
0.50
(0.02)
2.50
(0.98)
1
2
2.10
(0.08)
3
5
6
7
8
0.300
(0.012)
9.50
(0.37)
0.50
(0.02)

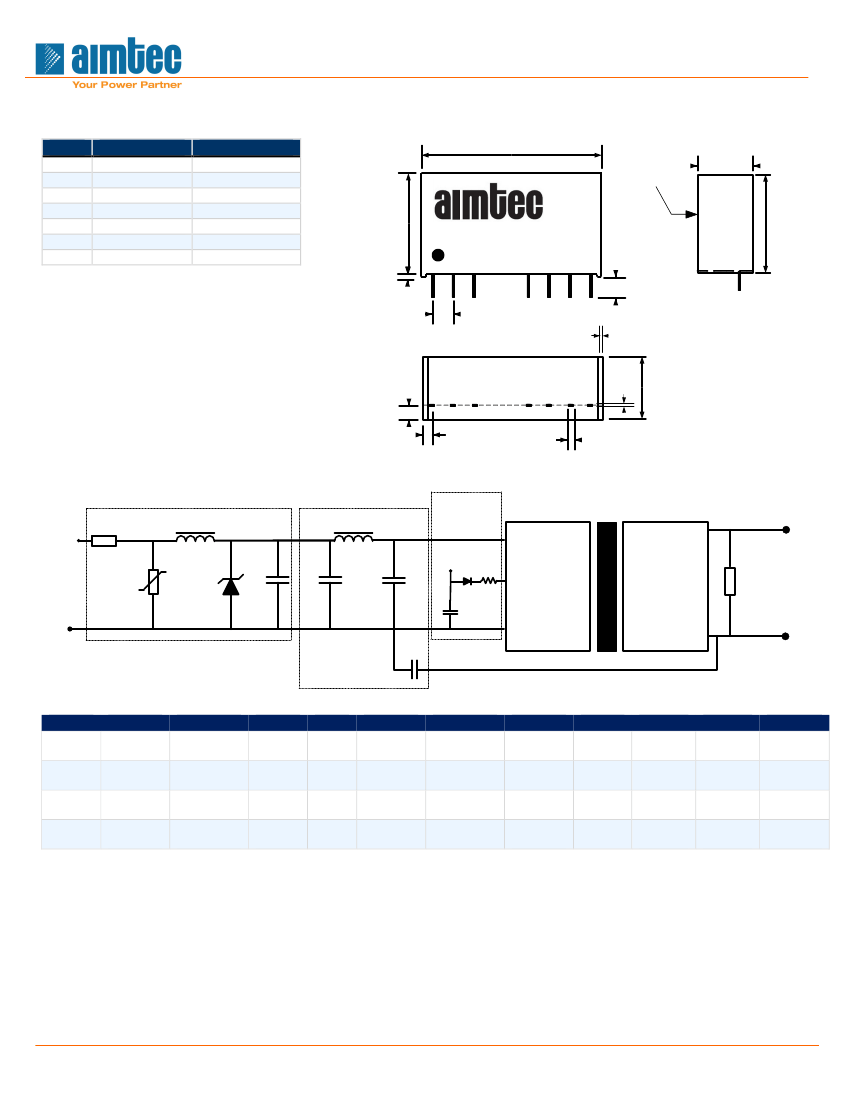

Recommended EMC Circuit
+ Vin FUSE
LDM2
LDM
Optional
CNTL
Circuit
Single Output
+Vout
MOV
TVS
D1 R1
Cd
DC
DC
- Vin
Optional Surge
Circuit
Optional Filter
Circuit
C4
- Vout
Model
5 Vin
C1
C2
C4
1nF
/3KV
1nF
/3KV
1nF
/3KV
1nF
/3KV
LDM
12 µH
12 µH
12 µH
12 µH
MOV
-
-
S14K35
S14K60
TVS
SMCJ13A
SMCJ28A
SMCJ48A
SMCJ90A
C3
680µF /
16V
680µF /
25V
330µF /
50V
330µF /
100V
LDM2
-
-
56µH
56µH
Cd
47nF
/100V
47nF
/100V
47nF
/100V
47nF
/100V
D1
RB160M
-60/1A
RB160M
-60/1A
RB160M
-60/1A
RB160M
-60/1A
Load
C3
+
C1
C2
CNTL
R1
See
Formula
See
Formula
See
Formula
See
Formula
4.7µF /
4.7µF /
50V
50V
4.7µF /
4.7µF /
12 Vin
50V
50V
4.7µF /
4.7µF /
24 Vin
100V
50V
4.7µF /
4.7µF /
48 Vin
100V
100V
Note: Fuse is user selectable
R1 = ((V
cd
–
V
d1
–
1.0) / I
cntl
)- 300
www.aimtec.com
F 051e R8.B
Tel: +1 514 620 2722
4 of 5
Toll free: + 1 888 9 AIMTEC (924 6832)
North America only
Series AM1G-NZ
1 Watt | DC-DC Converter
Recommended Circuits
Single Output
+ Vin
C1
LDM
2
C2
CNTL
3
D1 R1
- Vin
C3
1
DC
DC
8
Cs
6
Cout
+Vout
7
- Vout
Dual Output
+ Vin
C1
LDM
2
C2
CNTL
3
D1 R1
- Vin
C3
1
8
- Vout
Model
5 Vin
12 Vin
24 Vin
48 Vin
LDM1
6
Cout
+Vout
DC
DC
7
Cout
LDM1
GND
C1
100µF
100µF
10µF
10µF
C2
47µF
47µF
1µF
1µF
LDM
4.7 - 12 µH
4.7 - 12 µH
4.7 - 12 µH
4.7 - 12 µH
C3
47µF / 100V
47µF / 100V
47µF / 100V
47µF / 100V
D1
RB160M-60/1A
RB160M-60/1A
RB160M-60/1A
RB160M-60/1A
R1
See
Formula
See
Formula
See
Formula
See
Formula
LDM1
2.2 - 10 µH
2.2 - 10 µH
2.2 – 10 µH
2.2 - 10 µH
CS
10 - 22µF
10 - 22µF
10 - 22µF
10 - 22µF
Cout
100µF
100µF
100µF
100µF
R1 = ((V
cd
–
V
d1
–
1.0) / I
cntl
)- 300
