CALL 512-863-5585
x6464
DIMENSIONS
(metric table below)
CONTACT CUSTOMER SERVICE

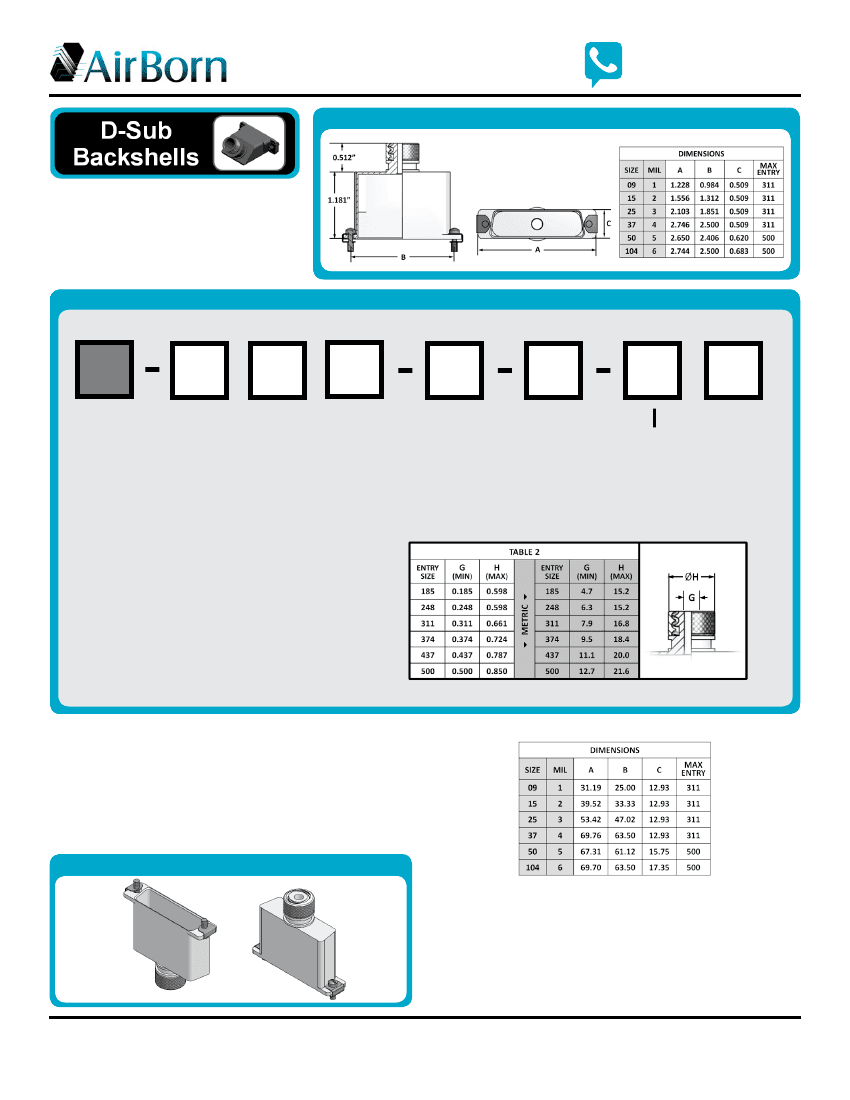

DE 1 – Braid Trap Backshell with
Circular Top Entry and Plain Nut
For use with D-Subminiature and
MIL-DTL-24308 connectors.
ORDER FORM
ENTER
CODE
ENTER
CODE
ENTER
CODE
Sample Part Number Format: DE-112-015-XXX-SH00
ENTER
CODE
ENTER
CODE
ENTER
CODE
ENTER
CODE
DE
SERIES
Braid Trap
Backshells for
D-Subminiature
Connectors
MATERIAL
1 – Aluminum
alloy
STYLE
1 – Circular top
entry with
plain nut
PLATING
2 – Nickel-plated
aluminum
3 – Cadmium-plated
aluminum ‡
D – Cadmium, olive
drab ‡
Z – Zinc cobalt over
nickel
SIZE
009 – 9 Contacts
015 – 15 Contacts
025 – 25 Contacts
037 – 37 Contacts
050 – 50 Contacts
104 – 104 Contacts
ENTRY SIZE
See Table 2 below
OPTIONS
00 – None
HARDWARE
00 – None
SH – Slot head screw with clip
AH – Allen head screw with clip
ES – Extended slot head screw with clip
AE – Allen head screw with E-clip
JP – Jackpost
TH – Threaded hole
NOTES
‡ Option not RoHS-compliant
PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.
MATERIALS and FINISHES
Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy
Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½
Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2
Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel
Zinc cobalt over electroless nickel with olive drab chromate conversion
Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or
AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2
Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M
Passivated per SAE AMS-2700, Method 2
METRIC
(for reference, only)
DE-112-015-XXX-SH00
DE1-PNB-1
www.airborn.com
(512 ) 863-5585
