DX-14Z-009-004-ES01-126 datasheet, PDF

Datasheet> All Categories > The connector> Connector bracket> DX-14Z-009-004-ES01-126

DX-14Z-009-004-ES01-126: DescriptionConnector Accessory; CategoryThe connector Connector bracket; File Size907KB，1 Pages; ManufacturerAirBorn; Environmental Compliance

Download Datasheet Parametric View All

DX-14Z-009-004-ES01-126 Overview

Connector Accessory

DX-14Z-009-004-ES01-126 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	AirBorn
Reach Compliance Code	compliant
Connector bracket type	CONNECTOR ACCESSORY
Manufacturer's serial number	DX

Preview

Download Datasheet

View All

CALL 512-863-5585

x6464

DIMENSIONS

(metric table below)

CONTACT CUSTOMER SERVICE

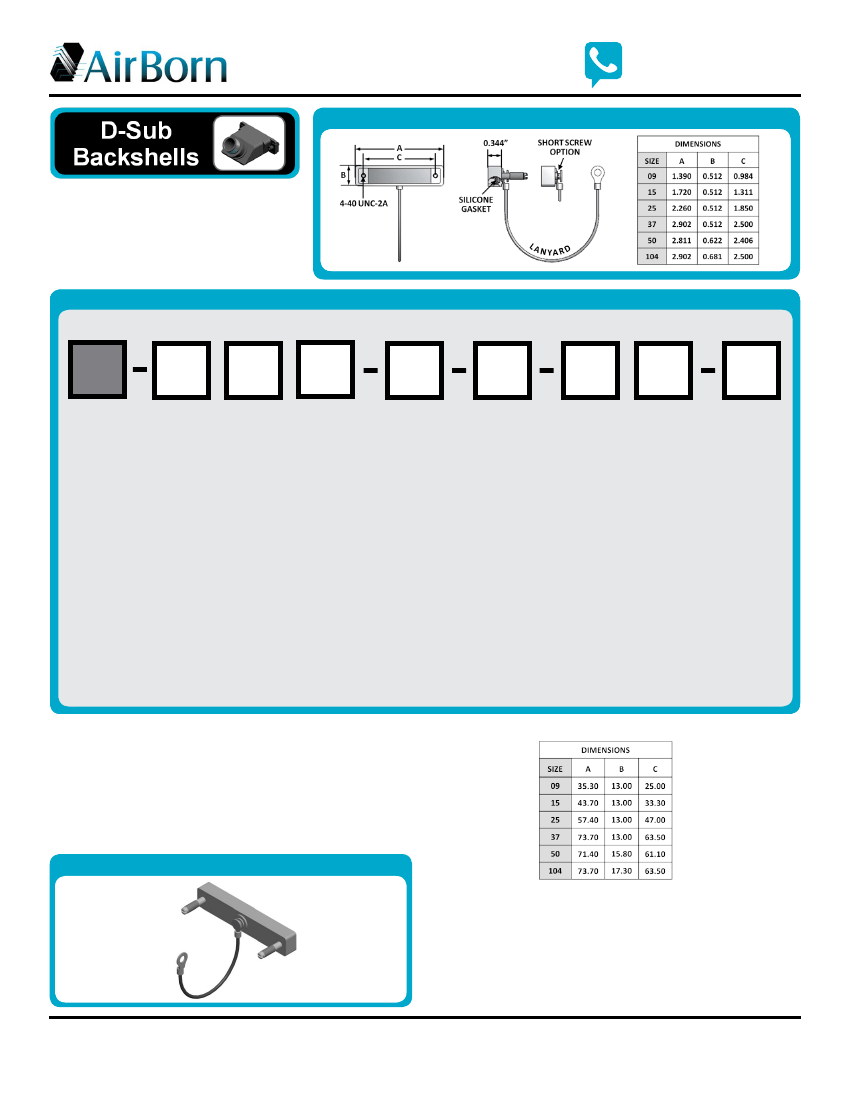

DX 4 – Protective Cap with Turning

Jackscrews and Gasket

For use with D-Subminiature and

MIL-DTL-24308 connectors.

ORDER FORM

ENTER

CODE

ENTER

CODE

ENTER

CODE

Sample Part Number Format: DX-14Z-037-004-ES01-169

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

ENTER

CODE

SERIES

Accessories for

D-Subminiature

Connectors

MATERIAL

1 – Aluminum

alloy

STYLE

PLATING

4 – Protective cap 2 – Nickel-plated

with turning

aluminum

jackscrews

3 – Cadmium-plated

and gasket

aluminum ‡

D – Cadmium,

olive drab ‡

Z – Zinc cobalt over

nickel

SIZE

009 – 9 Contacts

015 – 15 Contacts

025 – 25 Contacts

037 – 37 Contacts

050 – 50 Contacts

104 – 104 Contacts

LANYARD

LENGTH

(in inches)

XXX

00 – No lanyard

HARDWARE

SH – Slot head

screw

w/clip

ES – Extended

slot head

screw

w/clip

LANYARD TYPE

00 – None

01 – Black nylon cord

02 – Olive drab nylon

cord

03 – Link chain

04 – Bead chain

05 – Teflon-coated

(clear) stainless

steel wire rope

06 – Teflon-coated

(black) stainless

steel wire rope

07 – Teflon-coated

(olive drab)

stainless steel

wire rope

EYELET SIZE

000 – No eyelet

126 – 3.2 mm

146 – 3.7 mm

169 – 4.3 mm

209 – 5.3 mm

252 – 6.4 mm

NOTES

‡ Option not RoHS-compliant

PLEASE CONSULT THE AIRBORN WEBSITE FOR THE LATEST REVISION OF THIS DOCUMENT PRIOR TO BEGINNING ANY DESIGN WORK.

MATERIALS and FINISHES

Backshells: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Aluminum alloy

Shell Finishes: ½ ½ ½ ½ ½ ½ ½ ½ Electroless nickel per SAE AMS-C26074, Class 4, Grade B, 500 µ” min½

Electrodeposited cadmium per SAE AMS-QQ-P-416, Type II, Class 2

Cadmium, olive drab, SAE AMS-QQ-P-316, Type II, Class 3 over elelctroless nickel

Zinc cobalt over electroless nickel with olive drab chromate conversion

Jackscrews/posts: ½ ½ ½ ½ ½ ½ ½ 300-series steel per ASTM A582/A582M or SAE AMS-5640, Type 1 or

AISI-303 or EN 10088-3 1½4305, passivated per SAE AMS-2700, Method 2

Clips: ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ ½ Corrosion-resistant steel per ASTM A276 or ASTM A479/A479M

Passivated per SAE AMS-2700, Method 2

METRIC

(for reference, only)

DX-14Z-037-004-ES01-169

DX4-PNB-1

www.airborn.com

(512 ) 863-5585
