440-084
EMI/RFI Tinel-Lock
®
Ring Adapter
Rotatable Coupling - Standard Profile
440
A-F-H-L-S
ROTATABLE
COUPLING
FOR TINEL-LOCK
®
RING TERMINATIONS
CONNECTOR
DESIGNATORS
440 F S 084 M 20 12-8 AI T1
Product Series
Connector Designator
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
Cable Entry (Table IV)
Finish (Table II)
Shell Size (Table I)
Tinel-Lock
®
Ring Supplied
(Table V - Omit for none)
Length: S only
(1/2 inch increments,
e.g. 8 = 4.000 inches)
Shrink Boot Options
(Table IV - Omit for none)
Length ± .060 (1.52)
Min. Order
Length 2.0 inch
O-Ring
A Thread
(Table I)
C Typ.
(Table I)
Length **
** Length ± .060 (1.52)
Min. Order Length 1.0 inch
(See Note 4)
L (Table IV)
J*
K*
* (Table IV)

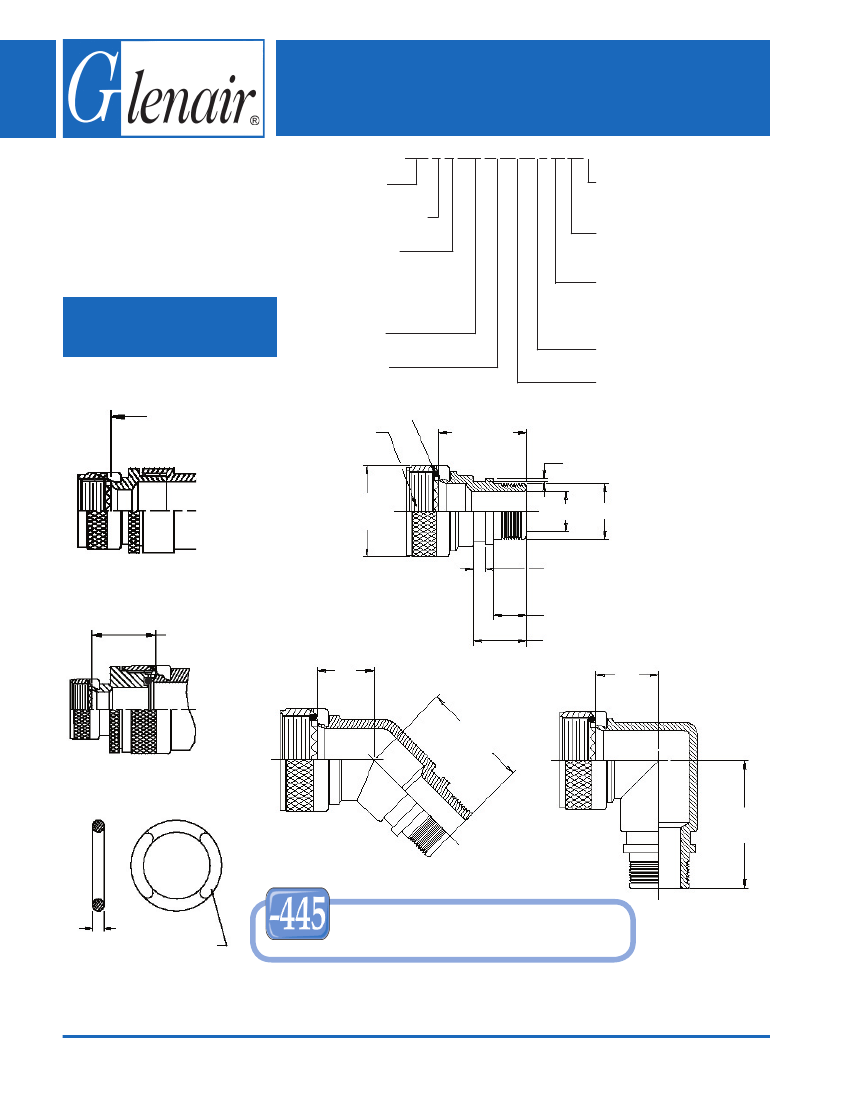

STYLE 2
(STRAIGHT
See Note 1)
.88 (22.4)
Max
.135 (3.4)
±.005 (.1)
.272 (6.9) Ref.
.525 (13.3)
(Table III)
E
G
(Table III)
F (Table III)
STYLE 2
(45° & 90°
See Note 1)
H
(Table III)
.070 (1.8)
Thermochromic
Paint (Note 6)
Tinel-Lock
®
Ring
Option (See Table V)
© 2005 Glenair, Inc.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
Tinel-Lock
®
is a registered trademark of Tyco
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 60
Rotatable Coupling - Standard Profile
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
03
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
28
32
36
40
44
48
61
E
Max
.64 (16.3)
.64 (16.3)
.66 (16.8)
.69 (17.5)
.71 (18.0)
.73 (18.5)
.75 (19.1)
.77 (19.6)
.80 (20.3)
.82 (20.8)
1.04 (26.4)
1.09 (27.7)
1.14 (29.0)
1.18 (30.0)
1.24 (31.5)
1.29 (32.8)
1.00 (25.4)
F
Max
.89 (22.6)
.89 (22.6)
.92 (23.4)
.94 (23.9)
.97 (24.6)
.99 (25.1)
1.00 (25.4)
1.02 (25.9)
1.06 (26.9)
1.09 (27.7)
1.26 (32.0)
1.30 (33.0)
1.35 (34.3)
1.39 (35.3)
1.44 (36.6)
1.49 (37.8)
1.21 (30.7)
G
Max
.75 (19.1)
.75 (19.1)
.81 (20.6)
.87 (22.1)
.92 (23.4)
.98 (24.9)
1.02 (25.9)
1.08 (27.4)
1.14 (29.0)
1.20 (30.5)
1.48 (37.6)
1.61 (40.9)
1.72 (43.7)
1.83 (46.5)
1.95 (49.5)
2.08 (52.8)
1.39 (35.3)
H
Max
1.00 (25.4)
1.00 (25.4)
1.06 (26.9)
1.12 (28.4)
1.19 (30.2)
1.25 (31.8)
1.27 (32.3)
1.33 (33.8)
1.41 (35.8)
1.48 (37.6)
1.72 (43.7)
1.81 (46.0)
1.92 (48.8)
2.03 (51.6)
2.16 (54.9)
2.28 (57.9)
1.57 (39.9)
See inside back
cover fold-out or
pages 13 and 14 for
Tables I and II.
TABLE IV: CABLE ENTRY
L
Tinel-Lock
®
K
J
Dash
+.008
(.2)
Shrink Boot
Shrink Boot
Ring Entry
Dia Max
I.D.
No.
-.000
(.0)
Option T2*
Option T1*
Size
.375 (9.5)
.250 (6.4)
04
.044 (1.1)
202K121-25-0
202K121-100-0
04
.437 (11.1)
.312 (7.9)
05
.044 (1.1)
202K132-100-0
202K132-25-0
05
.500 (12.7)
.375 (9.5)
06
.044 (1.1)
202K132-25-0
202K132-100-0
06
.562 (14.3)
.437 (11.1)
07
.044 (1.1)
202K142-100-0
202K142-25-0
07
.625 (15.9)
.500 (12.7)
08
.044 (1.1)
202K142-25-0
202K142-100-0
08
.750 (19.1)
.625 (15.9)
10
.044 (1.1)
202K153-100-0
202K153-25-0
10
.875 (22.2)
.750 (19.1)
12
.044 (1.1)
202K153-100-0
202K153-25-0
12
.875 (22.2) 1.000 (25.4)
14
.069 (1.8)
202K163-25-0
202K163-100-0
14
16 1.000 (25.4) 1.125 (28.6)
.069 (1.8)
202K163-100-0
202K163-25-0
16
18 1.125 (28.6) 1.250 (31.8)
.069 (1.8)
202K174-25-0
202K174-100-0
18
20 1.250 (31.8) 1.375 (34.9)
.069 (1.8)
202K174-100-0
202K174-25-0
20
22 1.375 (34.9) 1.500 (38.1)
.084 (2.1)
202K174-100-0
202K174-25-0
22
* Raychem Shrink Boot and Epoxy/Polyamide Two Part Adhesive Paste (S1125) Supplied with "T1" Option
(See Part Number Development)
** Raychem Shrink Boot and Hot-Melt/Polyolyfin Adhesive Supplied with "T2" Option (See Part Number
Development) - This is a Halogen Free System
1. When maximum cable entry (page 21) is exceeded, Style 2 will be sup-
plied. Dimensions E, F, G, and H will not apply. Please consult factory.
2. Interface O-Ring not supplied with Connector Designator A.
3. Consult factory for shorter lengths on straight backshells.
4. See pages 40 for Shrink Boot Reference Information.
5. The Tinel-Lock
®
ring designator must be specified according to the type of
cable braid used. Tinel-Lock
®
rings are marked with thermochromic paint
which changes color when the correct installation temperature is reached.
BI rings are identified with a red spot. CI rings are identified with a blue
spot.
© 2005 Glenair, Inc.
CAGE Code 06324
TABLE V: TINEL-LOCK
®
RING
Ring
Braid Type
Designator
Single Layer 36 AWG
AI
Single Layer 34 AWG
AI
Single Layer 32 AWG
BI
Single Layer 30 AWG
BI
Double Layer 36 AWG
BI
Double Layer 34 AWG
BI
Double Layer 32 AWG
CI
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 440 - Page 61
