DS1402X

1-Wire Network Cables

BENEFITS AND FEATURES



Coiled Cables Provide Flexible Connection to

Connect iButtons

and Capsule Products to

1-Wire

Networks

Convenient, Off-the-Shelf Connectivity

Multiple Connectors Maximize Battery Life

Momentary Contact

Dwelled Contact

Touch and Hold

Optional Adhesive Pad Simplifies Mounting

Spring-Controlled for Dwelled Contact

(DS1402-RC3+) for the DS1922F

Extension Cable (DS1402-BR8+) Supports a

Wider Range of Applications

ORDERING INFORMATION

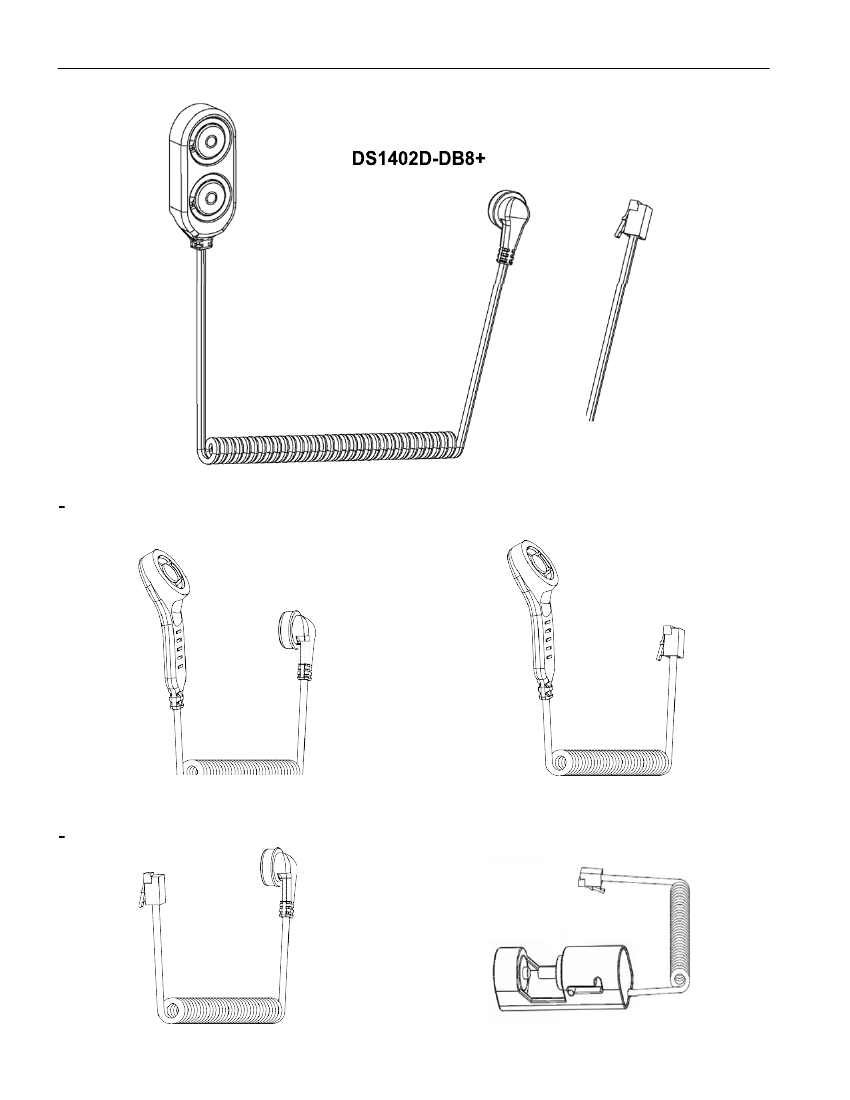

DS1402D-DB8+

DS1402D-DR8+

DS1402-BP8+

DS1402-RP3+

DS1402-RP8+

DS1402-BR8+

DS1402-RC3+

2.4m (8ft) cable

0.9m (3ft) cable

2.4m (8ft) cable

0.9m (3ft) cable



+ Denotes a lead(Pb)-free/RoHS-compliant product.

DESCRIPTION

The DS1402 series of 1-Wire network cables provides connectivity to any USB, serial, or parallel port

1-Wire adapter. Both the iButton probe cables and the Blue Dot receptor cables can touch any iButton,

but can only hold the F5 version iButtons. The DS1402-BR8+ is an extension cable for the DS1401

iButton Holder. The DS1402-RC3+ connects to the DS1922F. Applications of the DS1402-series 1-Wire

network cables range from software protection and access control to asset management and thermal

monitoring through handheld computers.

Connectivity Matrix

Cable Part Number

DS1402D-DB8+

Blue Dot Receptor Cable

DS1402D-DR8+

Blue Dot Receptor Cable

DS1402-BP8+

iButton Probe Cable

DS1402-RP3+, DS1402-RP8+

iButton Probe Cable

DS1402-BR8+

DS1402-RC3+

Connects From

DS1410E, DS1411, DS1413,

any version or DS1401

DS9490R, DS9097U (any

version), DS9097, DS9097E

DS1410E, DS1411, DS1413,

any version or DS1401

DS9490R, DS9097U (any

version), DS9097, DS9097E

DS9490R, DS9097U (any

version), DS9097, DS9097E

DS9490R, DS9097U (any

version), DS9097, DS9077E

any iButton

DS1401

Front Panel iButton Holder

DS1922F

iButton and 1-Wire are registered trademarks of Maxim Integrated Products, Inc.

For pricing, delivery, and ordering information, please contact Maxim Direct

at 1-888-629-4642, or visit Maxim’s website at www.maximintegrated.com.

19-4684; 2/15
