Submersible EMI/RFI Cable Sealing Backshell with Strain Relief

Preview

Download Datasheet

View All

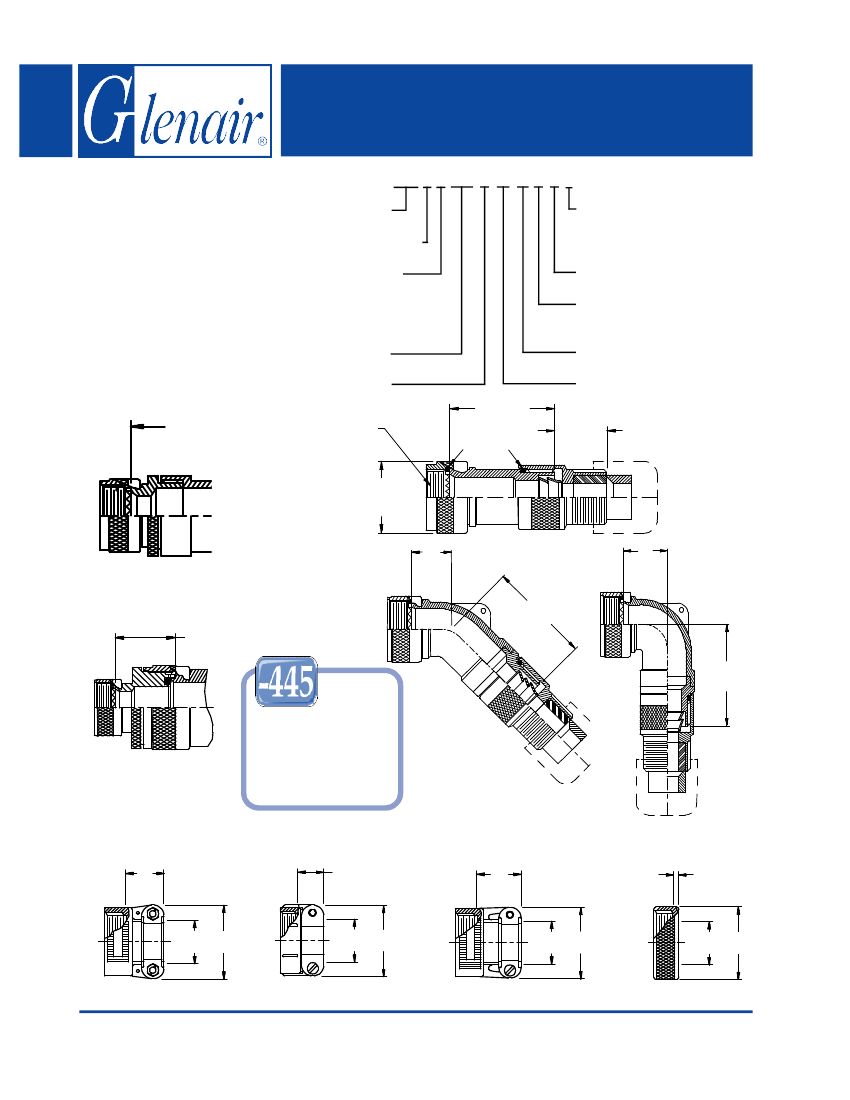

390-056

Submersible EMI/RFI Cable Sealing Backshell

with Strain Relief

Type E - Rotatable Coupling - Low Profile

CONNECTOR

DESIGNATORS

390 F S 056 M 16 10 D M 6

Product Series

Connector Designator

Angle and Profile

A = 90

B = 45

S = Straight

Basic Part No.

Finish (Table II)

Length *

Length: S only

(1/2 inch increments:

e.g. 6 = 3 inches)

Strain Relief Style (H, A, M, D)

Termination (Note 6)

D = 2 Rings, T = 3 Rings

Cable Entry (Tables X, XI)

Shell Size (Table I)

1.281

(32.5)

Ref. Typ.

* Length

± .060 (1.52)

Minimum Order

Length 1.5 Inch

(See Note 4)

A-F-H-L-S

ROTATABLE

COUPLING

TYPE E INDIVIDUAL

AND/OR OVERALL

SHIELD TERMINATION

Length ± .060 (1.52)

A Thread

Minimum Order Length 2.0 Inch (Table I)

(See Note 4)

C Typ.

(Table I)

O-Rings

STYLE 2

(STRAIGHT

See Note 1)

.88 (22.4)

Max

Now Available

with the NESTOR

(Table

III)

F (Table III)

(Table

III)

(Table III)

STYLE 2

(45° & 90°

See Note 1)

STYLE H

Heavy Duty

(Table X)

Glenair’s Non-Detent,

Spring-Loaded, Self-

Locking Coupling.

Add “-445” to Specify

This AS85049 Style “N”

Coupling Interface.

STYLE A

Medium Duty

(Table XI)

STYLE M

Medium Duty

(Table XI)

STYLE D

Medium Duty

(Table XI)

.135 (3.4)

Max

Cable

Range

Cable

Range

Cable

Range

Cable

Entry

CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

Series 39 - Page 46
