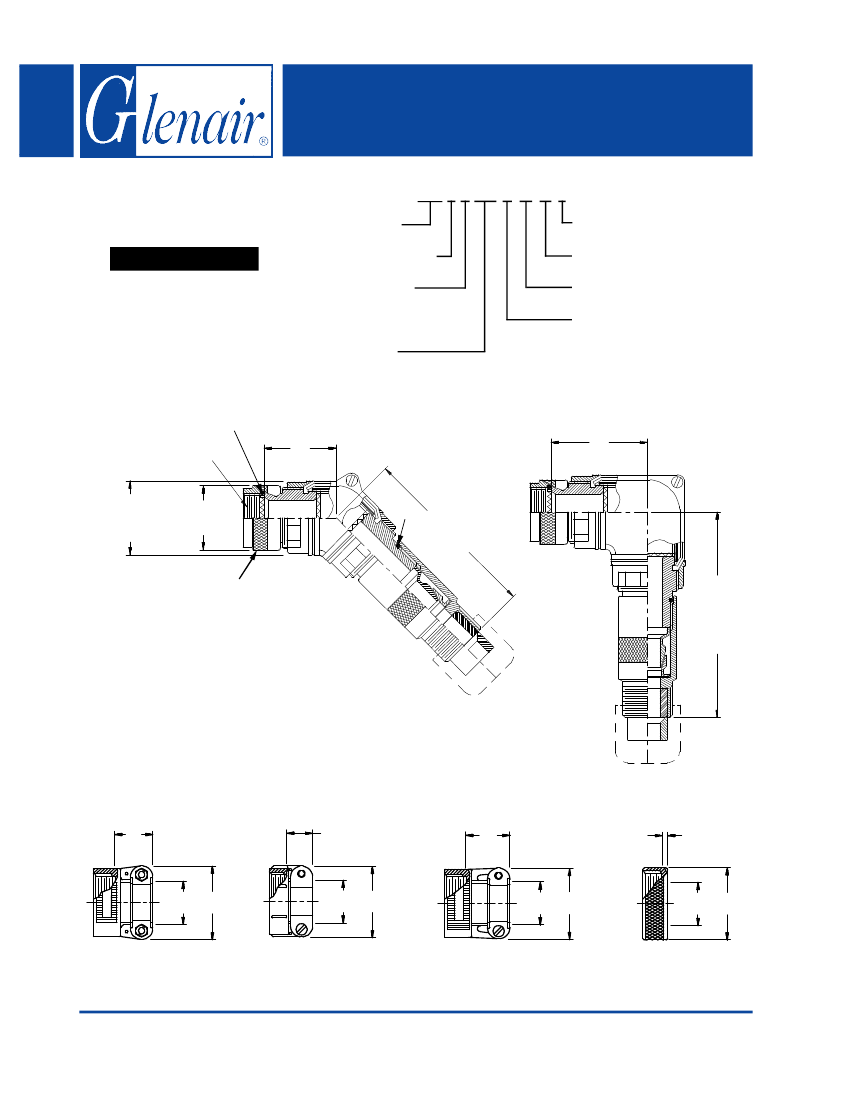

390-062
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type G - Self-Locking Rotatable Coupling - Split Shell
39
CONNECTOR
DESIGNATORS
390 F P 062 M 16 10 H
Product Series
Connector Designator
Angle and Profile
P = Split 45
R = Split 90
Basic Part No.
Strain Relief Style (H, A, M, D)
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
TYPE G INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
O-Ring
G (Table III)
A Thread
or
(Table I)
T (Table IV)
F Typ. (Table III)
E Typ.
or
(Table I)
S Typ. (Table IV)
J (Table III)
or
V (Table IV)
O-Ring
H (Table III)
or
U (Table IV)
Anti-Rotation
Device
Split 45°
Split 90°
K (Table III)
or
W (Table
IV)
Use Table IV data
when E diameter
exceeds F diameter.
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 84
with Strain Relief
Type G - Self-Locking Rotatable Coupling - Split Shell
TABLE III
Shell Size
Conn. Desig.
A-F-L-S H
08 09
10 11
12 13
14 15
16 17
18 19
20 21
22 23
24 25
S
Dash
Max
No.
08 1.438 (36.5)
10 1.688 (42.9)
12 1.688 (42.9)
16 1.688 (42.9)
20 2.188 (55.6)
24 2.188 (55.6)
28 2.688 (68.3)
F
Max
1.188 (30.2)
1.188 (30.2)
1.188 (30.2)
1.188 (30.2)
1.438 (36.5)
1.438 (36.5)
1.438 (36.5)
1.688 (42.9)
1.688 (42.9)
G
Max
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
2.062 (52.4)
2.062 (52.4)
2.062 (52.4)
2.188 (55.6)
2.188 (55.6)
H
Max
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.531 (115.1)
4.531 (115.1)
4.531 (115.1)
4.656 (118.3)
4.656 (118.3)
J
Max
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
1.938 (49.2)
2.062 (52.4)
2.062 (52.4)
2.062 (52.4)
2.188 (55.6)
2.188 (55.6)
K
Max
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.406 (111.9)
4.531 (115.1)
4.531 (115.1)
4.531 (115.1)
4.656 (118.3)
4.656 (118.3)
TABLE IV
T
U
Max
Max
2.062 (52.4) 4.531 (115.1)
2.188 (55.6) 4.656 (118.3)
2.188 (55.6) 4.656 (118.3)
2.188 (55.6) 4.656 (118.3)
2.438 (61.9) 4.906 (124.6)
2.438 (61.9) 4.906 (124.6)
2.688 (68.3) 5.156 (131.0)
TABLE X
V
Max
.957 (24.3)
1.145 (29.1)
1.332 (33.8)
1.332 (33.8)
1.551 (39.4)
1.770 (45.0)
2.113 (53.7)
2.363 (60.0)
2.770 (70.4)
V
Max
2.062 (52.4)
2.188 (55.6)
2.188 (55.6)
2.188 (55.6)
2.438 (61.9)
2.438 (61.9)
2.688 (68.3)
W
Max
4.531 (115.1)
4.656 (118.3)
4.656 (118.3)
4.656 (118.3)
4.906 (124.6)
4.906 (124.6)
5.156 (131.0)
See inside back cover
fold-out or pages 13 and 14
for Tables I and II.
T
Dash
Max
No.
.780 (19.8)
04
.780 (19.8)
06
.780 (19.8)
08
.780 (19.8)
10
.811 (20.6)
12
.905 (23.0)
16
1.092 (27.7)
20
1.124 (28.5)
24
1.399 (35.5)
28
Cable Range
Min
Max
.125 (3.2) .312 (7.9)
.250 (6.4) .437 (11.1)
.387 (9.8) .562 (14.3)
.350 (8.9) .625 (15.9)
.500 (12.7) .750 (19.1)
.625 (15.9) .937 (23.8)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1. Metric dimensions (mm) are indicated
in parentheses.
2. Cable range is defined as the accom-
modations range for
the wire bundle or cable. Dimensions
shown are not intended for inspection
criteria.
3. Interface O-Ring not supplied with
connector designator A.
X
Dash
W
Max
No.
Max
03* .437 (11.1) .760 (19.3)
04* .437 (11.1) .760 (19.3)
06* .500 (12.7) .760 (19.3)
08
.563 (14.3) .760 (19.3)
10
.563 (14.3) .760 (19.3)
12
.563 (14.3) .760 (19.3)
16
.656 (16.7) 1.073 (27.3)
20
.656 (16.7) 1.323 (33.6)
24
.656 (16.7) 1.323 (33.6)
28 1.188 (30.2) 1.572 (39.9)
* Not available in Style M clamp.
© 2005 Glenair, Inc.
TABLE XI
Y
Z
Cable Range
Max
Min **
Max
Max
.843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
.906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
1.187 (30.1) 1.067 (27.1) .387 (9.8) .562 (14.3)
1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
1.719 (43.7) 1.535 (39.0) .625 (15.9) .938 (23.8)
2.062 (52.4) 1.848 (46.9) .875 (22.2) 1.250 (31.8)
2.312 (58.7) 2.255 (57.3) 1.000 (25.4) 1.375 (34.9)
2.719 (69.1) 2.505 (63.6) 1.250 (31.8) 1.625 (41.3)
** Not Applicable Style D
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 85
39
390-062
Submersible EMI/RFI Cable Sealing Backshell
